HIKROBOT

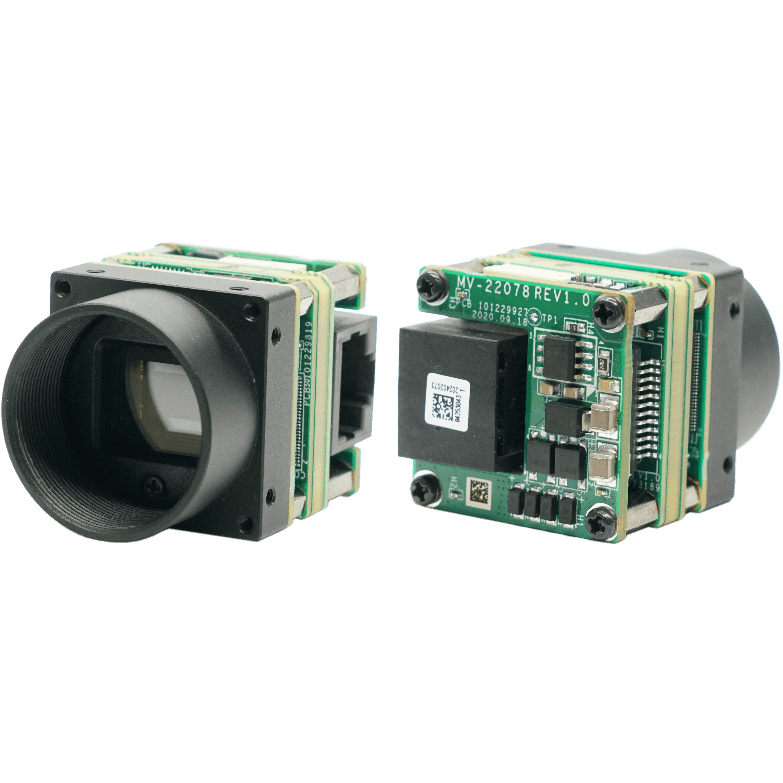

Board-level camera MV-CB016-10GC-C

Manufacturer part number: MV-CB016-10GC-C · 306301612

Resolution: 1.6 MP
Pixels: 1440 × 1080
Max. frame rate: 65.2 fps
Color / mono: Color
Shutter type: Global Shutter
Sensor format: 1/2.9"
Pixel size: 3.45 µm × 3.45 µm
Interface: GigE
Lens mount: C-Mount

Price and availability on request

Quantity

No obligation · we usually reply within 24 hours on business days

Request this item directly by email

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	MV-CB016-10GC-C
Type	1.6MP Board Level Camera, GigE,IMX296,Color,C-mount
Sensor type	CMOS, global shutter
Sensor model	Sony® IMX296
Pixel size	3.45 µm × 3.45 µm
Sensor size	1/2.9"
Resolution	1440 × 1080
Max. frame rate	65.2 fps @1440 × 1080
Dynamic range	74 dB
SNR	41 dB
Gain	0 dB to 24 dB
Exposure time	UltraShort exposure mode: 1 µs to 14 µs Standard exposure mode: 15 µs to 10 sec
Exposure mode	Off/ Once/ Continuous exposure mode
Mono/color	Color
Pixel format	Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Data interface	Gigabit Ethernet, compatible with Fast Ethernet
Digital I/O	6-pin connector provides power and I/O, including non-isolated input × 1 (Line 0), non-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	Typ. 2.7 W@12 VDC
Lens mount	C-mount
Dimension	29 mm × 29 mm × 30.2 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 45 g (0.1 lb.)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity	20 % to 80 % RH, non-condensing
Client software	MVS or third-party software meeting with GigE Vision Protocol
Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Compatibility	GigE Vision V2.0, GenICam
Certification	CE, FCC, RoHS, KC

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

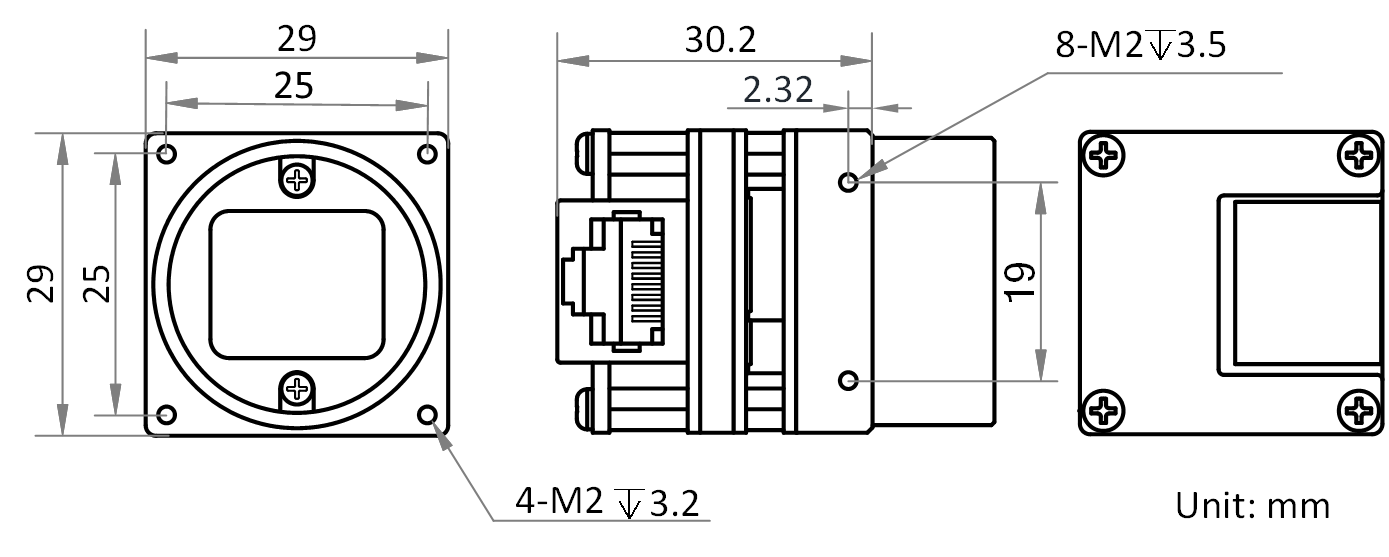

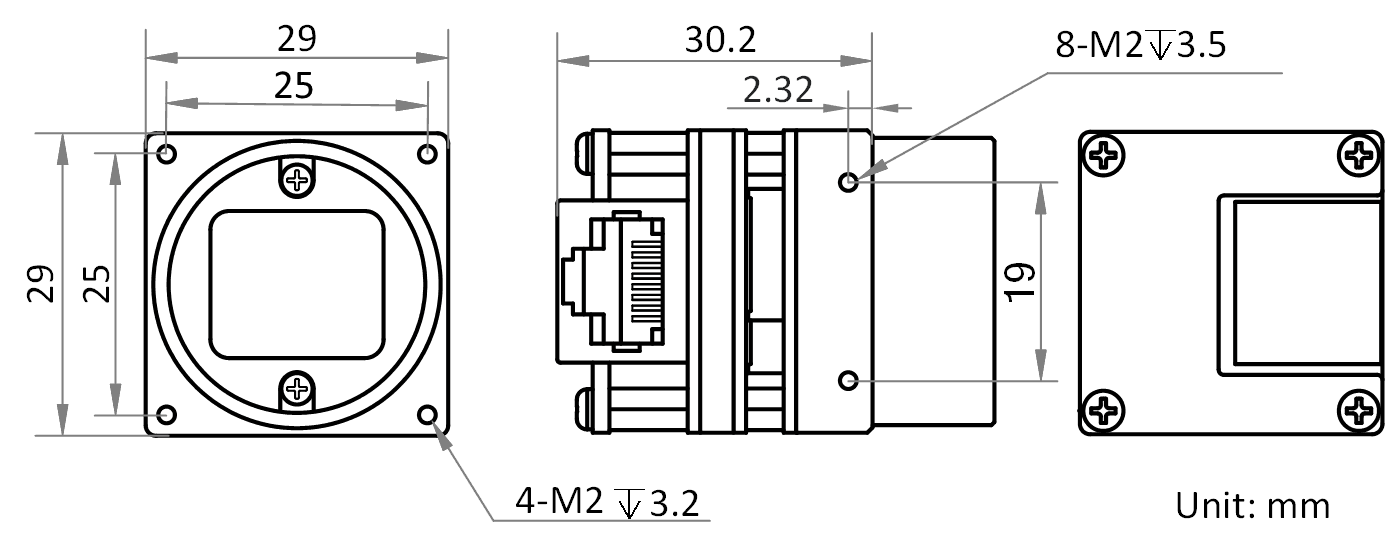

Dimensional drawing

Maßzeichnung HikRobot Platinenkamera MV-CB016-10GC-C

Documents

Datasheet HikRobot Platinenkamera MV-CB016-10GC-C
Datasheet · EN · 804 KB
Download datasheet
Technical drawing HikRobot Platinenkamera MV-CB016-10GC-C
Technical drawing · EN · 18 MB
Download

Software and SDK (12)

MVS V5.1.0 (Windows)
Software / firmware · EN · 738 MB
Download
MVS V5.1.0 (Linux) (aarch64)
Software / firmware · EN · 296 MB
Download
MVS V5.1.0 (Linux) (x86)
Software / firmware · EN · 268 MB
Download
MVS V5.1.0 (Linux) (x86_64)
Software / firmware · EN · 368 MB
Download
MVS V5.0.0 (MacOS)
Software / firmware · EN · 86 MB
Download
Industrial Camera SDK V4.8.1 Runtime Package (Windows)
Software / firmware · EN · 75 MB
Download
Industrial Camera SDK V4.8.1 Runtime Package (Linux)
Software / firmware · EN · 146 MB
Download
MVS V5.0.2 (Windows)
Software / firmware · EN · 456 MB
Download
MVS V5.0.2 (Linux)
Software / firmware · EN · 778 MB
Download
VisionMaster V4.4.0 Sample File
Software / firmware · EN · 956 MB
Download
VisionMaster V4.4.0 Basic Package
Software / firmware · EN · 1775 MB
Download
VisionMaster V4.4.0 DL Package (Supplemental) (2,7 GB)
Software / firmware · EN
Download

Manual HikRobot Platinenkamera MV-CB016-10GC-C
Manual · EN · 3 MB
Download

Accessories

Data cables(25)

HIKROBOT

Standard GigE data cable (RJ45-RJ45), 30 m

RJ45 (with locking stud) · 30 m

Data cable

HIKROBOT

Standard GigE data cable (RJ45-RJ45), 5 m

RJ45 (with locking stud) · 5 m

Data cable

HIKROBOT

High-flex GigE data cable (RJ45 angled-RJ45), 15 m

RJ45 (with locking stud),Bend (up) · 15 m

Data cable

HIKROBOT

High-flex GigE data cable (RJ45-RJ45), 30 m

RJ45 (with locking stud) · 30 m

Data cable

HIKROBOT

High-flex GigE data cable (RJ45-RJ45), 7 m

RJ45 (with locking stud) · 7 m

Data cable

HIKROBOT

SuperFlex GigE data cable (RJ45-RJ45), 10 m

RJ45 (with locking stud) · 10 m

Data cable

HIKROBOT

High-flex GigE data cable (RJ45-RJ45), 10 m

RJ45 (with locking stud) · 10 m

Data cable

HIKROBOT

Standard GigE data cable (RJ45 angled-RJ45), 15 m

RJ45 (with locking stud),Bend (up) · 15 m

Data cable

HIKROBOT

Standard GigE data cable (RJ45 angled-RJ45), 5 m

RJ45 (with locking stud),Bend (up) · 5 m

Data cable

HIKROBOT

High-flex GigE data cable (RJ45 angled-RJ45), 5 m

RJ45 (with locking stud),Bend (up) · 5 m

Data cable

HIKROBOT

Standard GigE data cable (RJ45-RJ45), 1 m

RJ45 (with locking stud) · 1 m

Data cable

HIKROBOT

Standard GigE data cable (RJ45-RJ45), 60 m

RJ45 (with locking stud) · 60 m

Data cable

HIKROBOT

SuperFlex GigE data cable (RJ45-RJ45), 3 m

RJ45 (with locking stud) · 3 m

Data cable

HIKROBOT

SuperFlex GigE data cable (RJ45-RJ45), 7 m

RJ45 (with locking stud) · 7 m

Data cable

HIKROBOT

High-flex GigE data cable (RJ45-RJ45), 5 m

RJ45 (with locking stud) · 5 m

Data cable

HIKROBOT

Standard GigE data cable (RJ45-RJ45), 10 m

RJ45 (with locking stud) · 10 m

Data cable

HIKROBOT

High-flex GigE data cable (RJ45-RJ45), 3 m

RJ45 (with locking stud) · 3 m

Data cable

HIKROBOT

SuperFlex GigE data cable (RJ45-RJ45), 5 m

RJ45 (with locking stud) · 5 m

Data cable

HIKROBOT

High-flex GigE data cable (RJ45-RJ45), 15 m

RJ45 (with locking stud) · 15 m

Data cable

HIKROBOT

SuperFlex GigE data cable (RJ45-RJ45), 15 m

RJ45 (with locking stud) · 15 m

Data cable

HIKROBOT

Standard GigE data cable (RJ45-RJ45), 3 m

RJ45 (with locking stud) · 3 m

Data cable

HIKROBOT

Standard GigE data cable (RJ45 angled-RJ45), 3 m

RJ45 (with locking stud),Bend (up) · 3 m

Data cable

HIKROBOT

Standard GigE data cable (RJ45-RJ45), 15 m

RJ45 (with locking stud) · 15 m

Data cable

HIKROBOT

High-flex GigE data cable (RJ45 angled-RJ45), 3 m

RJ45 (with locking stud),Bend (up) · 3 m

Data cable

HIKROBOT

Standard GigE data cable (RJ45-RJ45), 7 m

RJ45 (with locking stud) · 7 m

Data cable

More HIKROBOT products in this category

Description

Key Feature - Supports auto or manual adjustment of gain, exposure time, white balance, manual adjustment of Gamma correction, LUT, Binning, etc. - Adopts noise reduction function to provide high-quality images. - Adopts GigE interface and max. transmission distance of 100 meters without relay. - Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
