HIKROBOT
Area scan camera MV-CE013-80GM
Manufacturer part number: MV-CE013-80GM
- Resolution
- 1.3 MP
- Pixels
- 1280 × 1024
- Max. frame rate
- 89.9 fps
- Shutter type
- Global Shutter
- Sensor format
- 1/2.7"
- Pixel size
- 4 µm × 4 µm
- Interface
- GigE
- Lens mount
- C-Mount
End of life announced - still orderable
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CE013-80GM |
|---|---|
| Type | 1.3MP Area Scan Camera, GigE, SS, Mono |
| Sensor type | CMOS, global shutter |
| Sensor model | SS |
| Pixel size | 4.0 µm × 4.0 µm |
| Sensor size | 1/2.7" |
| Resolution | 1280 × 1024 |
| Max. frame rate | 89.9 fps @ 1280 × 1024 |
| Dynamic range | 60 dB |
| SNR | 40 dB |
| Gain | 0 dB to 20 dB |
| Exposure time | 31 µs to 1 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono | Mono |
| Pixel format | Mono 8/10/10p/12/12p |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | Typ. 2.4 W@12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 96 g (0.21 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH to 80 % RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Input voltage | 9 VDC to 24 VDC, supports PoE |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

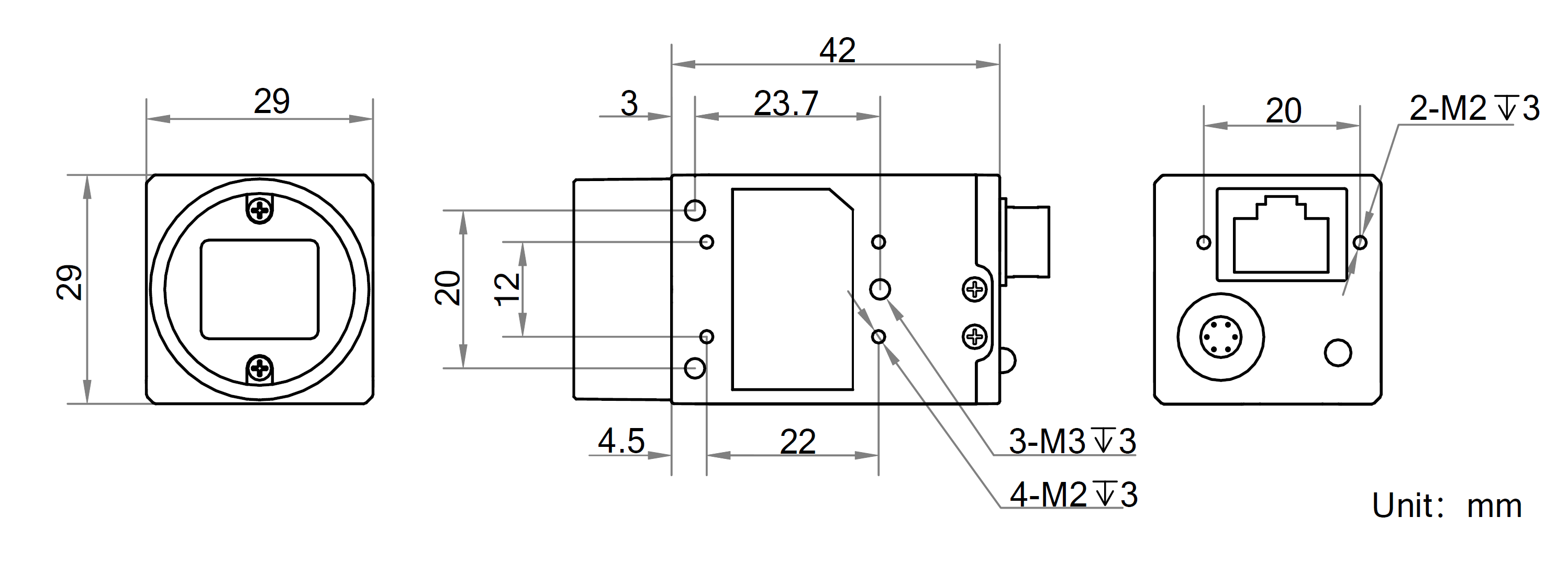

Dimensional drawing
Documents
- Download datasheet
Datasheet Hikrobot Flächenkamera MV-CE013-80GM
Datasheet · EN · 589 KB
- Download
Technical drawing Hikrobot Flächenkamera MV-CE013-80GM
Technical drawing · EN · 1040 KB
- Download
Manual Hikrobot Flächenkamera MV-CE013-80GM
Manual · EN · 3930 KB
Description
Key Feature
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Supports auto and manual adjustment for exposure control, LUT, Gamma correction, etc.
- Supports hardware trigger, software trigger, free run, etc.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on protocol and standard.
