HIKROBOT

Area scan camera MV-CE100-30GC

Manufacturer part number: MV-CE100-30GC

Resolution: 10.6 MP
Pixels: 3840 × 2748
Max. frame rate: 7 fps
Shutter type: Rolling Shutter
Sensor format: 1/2.3"
Pixel size: 1.67 µm × 1.67 µm
Interface: GigE
Lens mount: C-Mount

The manufacturer has announced end of life (EoL preparation) for this product. It is still regularly orderable; we will inform you in good time once a successor has been confirmed.

End of life announced - still orderable

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	MV-CE100-30GC
Type	10MP Area Scan Camera, GigE,IMT9J003,Color
Sensor type	CMOS, rolling shutter
Sensor model	MT9J003
Pixel size	1.67 µm × 1.67 µm
Sensor size	1/2.3"
Resolution	3840 × 2748
Max. frame rate	7 fps @ 3840 × 2748
Dynamic range	65 dB
SNR	34 dB
Gain	0 dB to 15.3 dB
Exposure time	50 µs to 2 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono	Color
Pixel format	Mono 8/10/12, Bayer GR 8/10/10p/12/12p YUV422Packed,YUV422_YUYV_Packed, RGB 8
Binning	Supports 1 × 1, 2 × 2
Decimation	Not support
Reverse image	Supports horizontal reverse image output
Image buffer	128 MB
Data interface	Gigabit Ethernet, compatible with Fast Ethernet
Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply	12 VDC, supports PoE
Power consumption	Typ. 2.6 W @ 12 VDC
Lens mount	C-mount
Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
Weight	Approx. 68 g (0.15 lb.)
Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20 % RH to 80 % RH (no condensation)
Client software	MVS or third-party software meeting with GigE Vision Protocol
Operating system	32/64-bit Windows 7/10, 32/64-bit Linux
Compatibility	GigE Vision V1.2, GenICam
Certification	CE, RoHS, KC
Input voltage	12 VDC, supports PoE

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

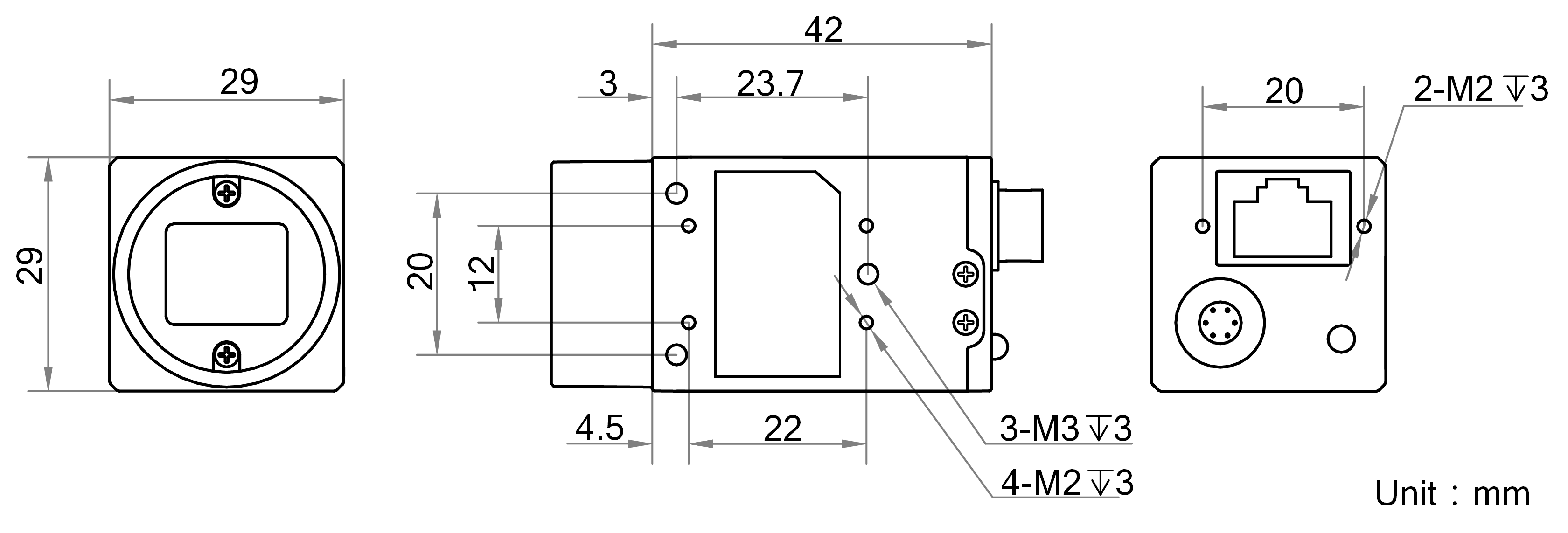

Dimensional drawing

Documents

Datasheet Hikrobot Flächenkamera MV-CE100-30GC
Datasheet · EN · 1 MB
Download datasheet
Technical drawing Hikrobot Flächenkamera MV-CE100-30GC
Technical drawing · EN · 986 KB
Download

Software and SDK (12)

MVS V5.1.0 (Windows)
Software / firmware · EN · 738 MB
Download
MVS V5.1.0 (Linux) (aarch64)
Software / firmware · EN · 296 MB
Download
MVS V5.1.0 (Linux) (x86)
Software / firmware · EN · 268 MB
Download
MVS V5.1.0 (Linux) (x86_64)
Software / firmware · EN · 368 MB
Download
MVS V5.0.0 (MacOS)
Software / firmware · EN · 86 MB
Download
Industrial Camera SDK V4.8.1 Runtime Package (Windows)
Software / firmware · EN · 75 MB
Download
Industrial Camera SDK V4.8.1 Runtime Package (Linux)
Software / firmware · EN · 146 MB
Download
MVS V5.0.2 (Windows)
Software / firmware · EN · 456 MB
Download
MVS V5.0.2 (Linux)
Software / firmware · EN · 778 MB
Download
VisionMaster V4.4.0 Sample File
Software / firmware · EN · 956 MB
Download
VisionMaster V4.4.0 Basic Package
Software / firmware · EN · 1775 MB
Download
VisionMaster V4.4.0 DL Package (Supplemental) (2,7 GB)
Software / firmware · EN
Download

Manual Hikrobot Flächenkamera MV-CE100-30GC
Manual · EN · 4 MB
Download

Description

Key Feature

- Adopts GigE interface and max. transmission distance of 100 meters without relay.

- Up to 128 MB local memory for burst transmission and retransmission.

- Supports auto exposure control, LUT, Gamma correction, etc.

- Supports hardware trigger, software trigger, etc.

- Compatible with GigE Vision V1.2 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
