Area scan camera MV-CH1510-10XM-M72-TF V2
Manufacturer part number: MV-CH1510-10XM-M72-TF V2
- Resolution
- 151 MP
- Pixels
- 14192 × 10640
- Max. frame rate
- 6.2 fps
- Color / mono
- Mono
- Shutter type
- Rolling Shutter
- Sensor format
- 66.7 mm
- Pixel size
- 3.76 µm × 3.76 µm
- Interface
- CoaXPress
- Lens mount
- M72 × 0.75
- Global reset
- Yes
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH1510-10XM-M72-TF V2 |
|---|---|
| Type | 151MP Area Scan Camera, CoaXPress, IMX411, V2, mono, M72-mount, TEC with fan |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX411 |
| Pixel size | 3.76 µm × 3.76 µm |
| Sensor size | 66.7 mm |
| Resolution | 14192 × 10640 |
| Max. frame rate | 6.2 fps @14192 × 10640 Mono 8 |
| Dynamic range | 78.8 dB |
| SNR | 46.4 dB |
| Gain | 0 dB to 40 dB |
| Exposure time | 15 µs to 30 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Rolling and Global Reset |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12/16 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Not supported |
| Reverse image | Supports horizontal reverse image output |
| Data interface | CoaXPress with DIN interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 |
| Power supply | 24 VDC |
| Power consumption | Camera with TEC non-cooling: Typ. 20.8 W @ 24 VDC Camera with TEC cooling: Typ. 34.2 W @ 24 VDC |
| Lens mount | M72*0.75, flange back length 19.55 mm |
| Dimension | 100 mm × 100 mm × 82 mm (3.9" × 3.9" × 3.2") |
| Weight | Approx. 1.2 kg (2.6 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | Frame grabber software meeting with CoaXPress Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux (8 GB memory or above) |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

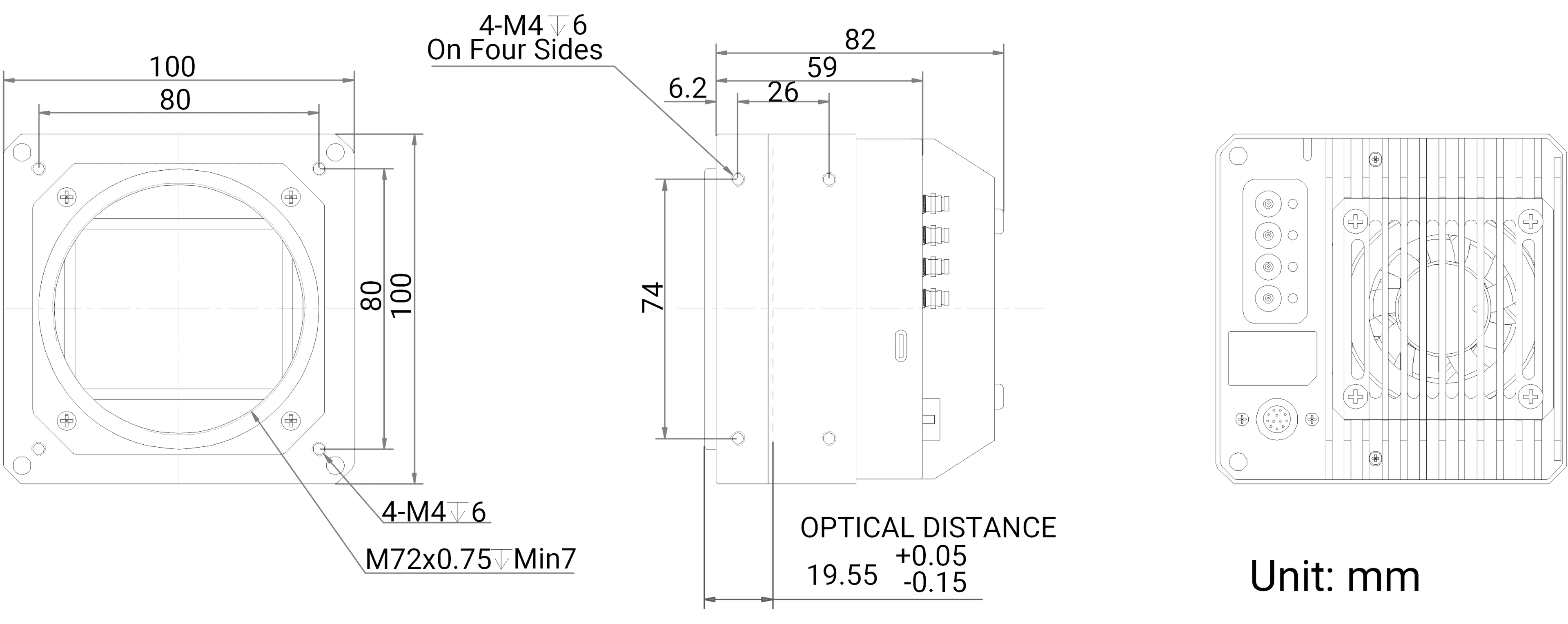

Dimensional drawing
