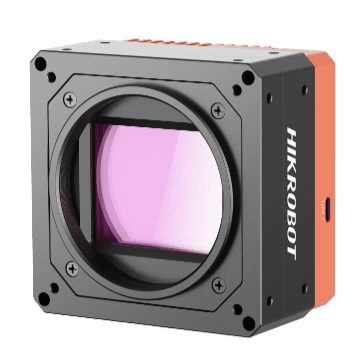

Area scan camera MV-CH2450-10YC-M72-TF
Manufacturer part number: MV-CH2450-10YC-M72-TF
- Resolution
- 245.8 MP
- Pixels
- 19200 × 12800
- Max. frame rate
- 12.4 fps
- Color / mono
- Color
- Shutter type
- Rolling Shutter
- Sensor format
- 64.84 mm
- Pixel size
- 2.81 µm × 2.81 µm
- Interface
- CoaXPress
- Lens mount
- M72 × 0.75
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH2450-10YC-M72-TF |
|---|---|
| Type | 245MP Area Scan Camera, CoaXPress, IMX811, color, M72-mount, TEC with fan |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX811 |
| Pixel size | 2.81 µm × 2.81 µm |
| Sensor size | 64.84 mm |
| Resolution | 19200 × 12800 |
| Max. frame rate | 12.4 fps @ 19200 × 12800 Bayer RG 8 |
| Dynamic range | 71.8 dB |
| SNR | 44.2 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 98 µs to 60 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Rolling Shutter and Global Reset |
| Mono/color | Color |
| Pixel format | Mono 8/10/12/16 Bayer RG 8/10/12/16 RGB 8 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Data interface | CoaXPress with HD-BNC interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 |
| Power supply | 24 VDC |
| Power consumption | Camera with TEC non-cooling: Typ. 20.6 W @ 24 VDC Camera with TEC cooling: Typ. 33.2 W @ 24 VDC |
| Lens mount | M72*0.75, flange back length 19.55 mm |
| Dimension | 100 mm × 100 mm × 82 mm (3.9" × 3.9" × 3.2") |
| Weight | Approx. 1216.9 g (2.7 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or third-party software meeting with CoaXPress Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
| Input voltage | 24 VDC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
