Area scan camera MV-CH1510-11XC-M72-TF
Manufacturer part number: MV-CH1510-11XC-M72-TF · 306301871
- Resolution
- 151 MP
- Pixels
- 14208 × 10640
- Max. frame rate
- 6.2 fps
- Color / mono
- Color
- Shutter type
- Rolling Shutter
- Sensor format
- 66.7 mm
- Pixel size
- 3.76 µm × 3.76 µm
- Interface
- CoaXPress
- Lens mount
- M72 × 0.75
- Global reset
- Yes
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH1510-11XC-M72-TF |
|---|---|
| Type | 151MP Area Scan Camera, CoaXPress, IMX411, Color, M72-mount, with TEC |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX411 |
| Pixel size | 3.76 µm × 3.76 µm |
| Sensor size | 66.7 mm |
| Resolution | 14208 × 10640 |
| Max. frame rate | 6.2 fps @ 14208 × 10640 |
| Dynamic range | 78.7 dB |
| SNR | 46.4 dB |
| Gain | 0 dB to 36 dB |
| Exposure time | 15 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Global Reset, Rolling |
| Mono/color | Color |
| Pixel format | Mono 8/10/12/16, Bayer RG 8/10/12/16, RGB 8 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Not supported |
| Reverse image | Supports horizontal reverse image output |
| Data interface | CoaXPress with DIN interface |
| Digital I/O | 12-pin P10 connector provides I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power supply | Camera with fan: 12 VDC to 24 VDC Camera with TEC: 24 VDC |
| Power consumption | Camera with fan: Typ. 21 W @ 24 VDC Camera with TEC non-cooling: Typ. 22 W @ 24 VDC Camera with TEC cooling: Typ. 60 W @ 24 VDC |
| Lens mount | M72*0.75, flange back length 19.55 mm |
| Dimension | Camera with fan: 100 mm × 100 mm × 74.3 mm (3.9" × 3.9" × 2.9") Camera with TEC: 120 mm × 120 mm × 84.6 mm (4.7" × 4.7" × 3.3") |
| Weight | Camera with fan: Approx. 1.0 kg (2.2 lb.) Camera with TEC: Approx. 1.9 kg (4.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | Frame grabber software meeting with CoaXPress Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 with 8 GB memory or above |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

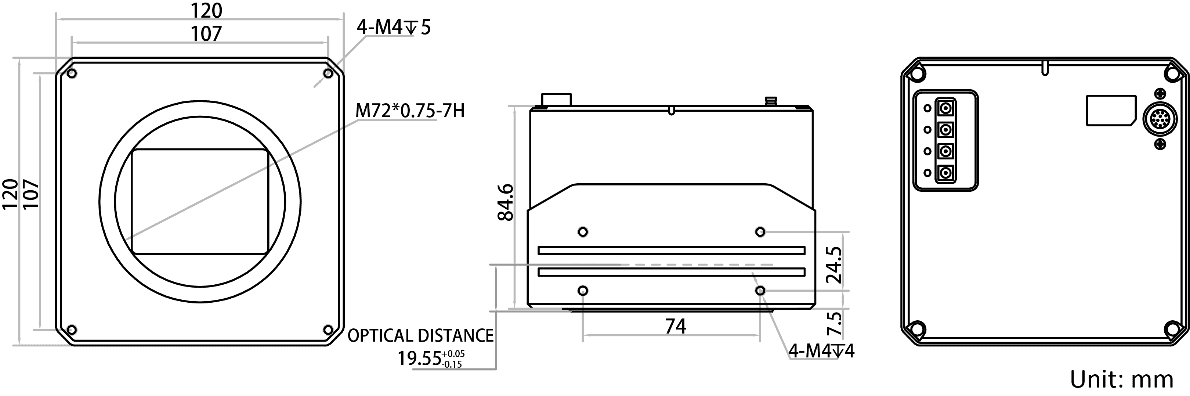

Dimensional drawing
