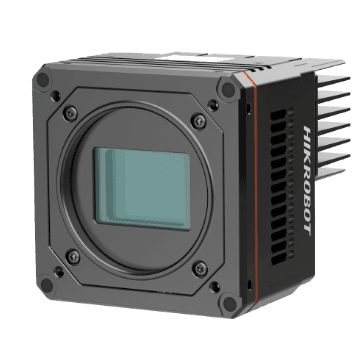

Area scan camera MV-CH1030-90YM-M58S-NN

Manufacturer part number: MV-CH1030-90YM-M58S-NN

Resolution: 103.6 MP
Pixels: 11264 × 9200
Max. frame rate: 24.3 fps
Color / mono: Mono
Shutter type: Global Shutter
Sensor format: 36.1 mm × 29.4 mm
Pixel size: 3.2 µm × 3.2 µm
Interface: CoaXPress
Lens mount: M58 × 0.75

Price and availability on request

Quantity

No obligation · we usually reply within 24 hours on business days

Request this item directly by email

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	MV-CH1030-90YM-M58S-NN
Type	103MP Area Scan Camera, CoaXPress, GMAX32103, Mono, M58-mount, without fan
Sensor type	CMOS, global shutter
Sensor model	Gpixel GMAX32103
Pixel size	3.2 µm × 3.2 µm
Sensor size	36.1 mm × 29.4 mm
Resolution	11264 × 9200
Max. frame rate	24.3 fps @ 11264 × 9200 Mono 8
Dynamic range	63.7 dB
SNR	39.9 dB
Gain	1.4 x to 5.2 x
Exposure time	20 µs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Mono
Pixel format	Mono 8/10/12
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Data interface	CoaXPress with Micro-BNC interface
Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1
Power supply	12 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP
Power consumption	Typ. 10.4 W @ 24 VDC
Lens mount	M58*0.75, flange back length 11.48 mm
Dimension	84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6")
Weight	Approx. 650 g (1.4 lb.)
Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20 % RH to 95 % RH (no condensation)
Client software	MVS or frame grabber software meeting with CoaXPress Protocol
Operating system	32/64-bit Windows 7/10, 64-bit Window 11, and 32/64-bit Linux
Compatibility	CoaXPress, GenlCam
Certification	CE, RoHS, KC
Input voltage	12 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
