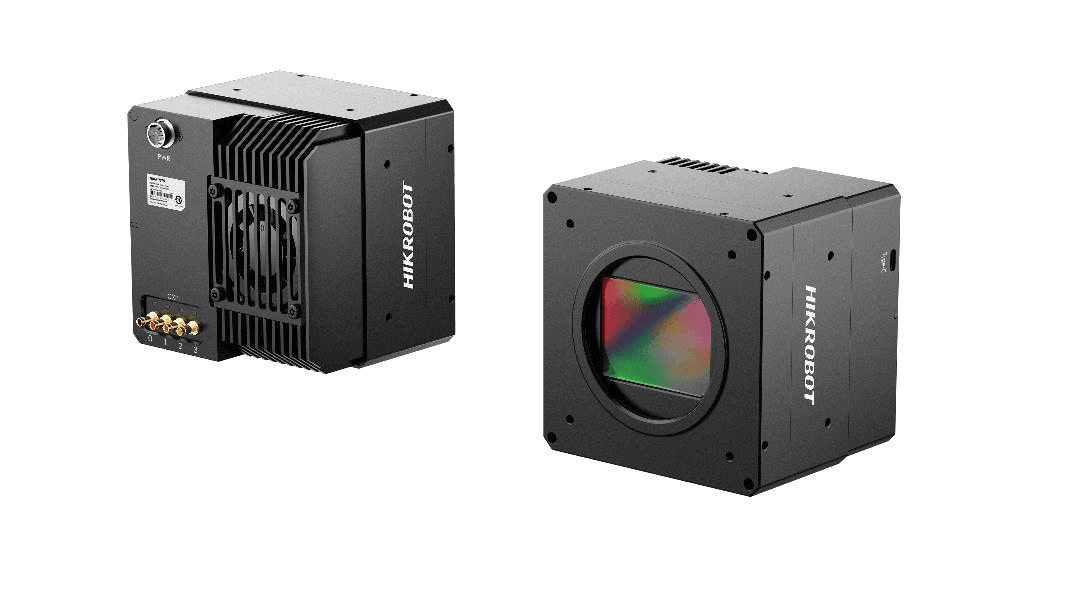

Area scan camera MV-CH6040-10XM-M72-TF

Manufacturer part number: MV-CH6040-10XM-M72-TF

Resolution: 604.7 MP
Pixels: 28416 × 21280
Max. frame rate: 1.45 fps
Color / mono: Mono
Shutter type: Rolling Shutter
Sensor format: 66.7 mm
Pixel size: 3.76 µm × 3.76 µm
Interface: CoaXPress
Lens mount: M72 × 0.75

Price and availability on request

Quantity

No obligation · we usually reply within 24 hours on business days

Request this item directly by email

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	MV-CH6040-10XM-M72-TF
Type	604 MP CMOS CoaXPress Area Scan Camera
Sensor type	CMOS, rolling shutter
Sensor model	Sony® IMX411
Pixel size	3.76 µm × 3.76 µm
Sensor size	66.7 mm
Resolution	28416 × 21280
Max. frame rate	1.45 fps @ 28416 × 21280 Mono 8
Dynamic range	78.7 dB
SNR	46.4 dB
Gain	0 dB to 40 dB
Exposure time	15 µs to 1 sec
Exposure mode	Off/Once/Continuous exposure mode, supports Rolling and Global Reset
Mono/color	Mono
Pixel format	Mono 8/10/12/16
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Not support
Reverse image	Supports horizontal reverse image output
Data interface	CoaXPress with DIN interface
Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1
Power supply	24 VDC
Power consumption	Camera with fan: Typ. 15 W @ 24 VDC Camera with TEC non-cooling: Typ. 19.5 W @ 24 VDC Camera with TEC cooling: Typ. 31.2 W @ 24 VDC
Lens mount	M72*0.75, back focal length 19.55 mm
Dimension	Camera with fan: 100 mm × 100 mm × 128.5 mm (3.9" × 3.9" × 5.1") Camera with TEC: 120 mm × 120 mm × 102 mm (4.7" × 4.7" × 4.0")
Weight	Camera with fan: Approx. 1.4 kg (3.1 lb.) Camera with TEC: Approx. 2.15 kg (4.7 lb.)
Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Performance temperature: 20 °C to 35 °C (68 °F to 95 °F) Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20 % RH to 95 % RH (no condensation)
Client software	Frame grabber software meeting with CoaXPress Protocol
Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
Compatibility	CoaXPress, GenICam
Input voltage	24 VDC

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
