Spot light MV-LDFM-H-20-10-W

The MV-LDFM-H-20-10-W spot light from HIKROBOT is a high-brightness spot light in white with an 18.5 mm light outlet: at a distance of 100 mm it reaches more than 400,000 lux. It concentrates the light on a small spot and is designed for long working distances and short exposure times, for example on fast-moving parts, in electronics production or under telecentric lenses.

Technical data

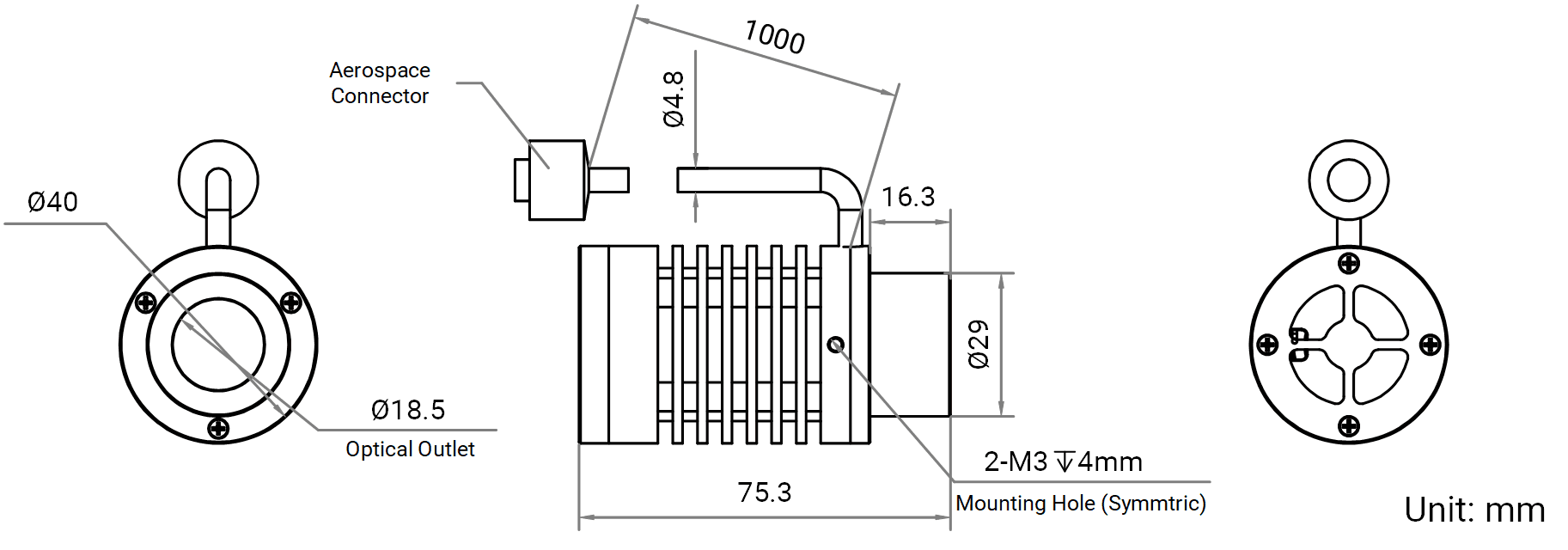

The working distance ranges from 50 mm to 500 mm. The white light has a color temperature of 6000 K to 7000 K. Power consumption is 9 W, the connection is a 12M-5A connector on a 1 m cable. The cylindrical housing is 75.3 mm long with a diameter of 40 mm and weighs 0.1 kg.

Operating conditions

The permissible range is 0 °C to 40 °C in operation and -20 °C to 80 °C in storage, each at 20 % to 90 % relative humidity without condensation. Photobiologically the light is classified in risk group RG2; the safety distance is 5.40 m.

Applications and selection

High-brightness spot lights fit when a small field of view has to be lit from a greater distance or with a very short exposure time; for microscopy and short distances the MV-LDSS-H series is sufficient. The MV-LDFM-H series comes in white and infrared; white suits color cameras, infrared suits monochrome cameras, with a bandpass filter against ambient light where needed. The light runs on a HIKROBOT MV-LE series light controller; matching controllers, extension cables, cameras and lenses are listed in the catalog. We are glad to help with sizing by field of view, working distance and light color; requests go through the inquiry basket.
