Spot light MV-LDSS-H-8-3-R

The MV-LDSS-H-8-3-R spot light from HIKROBOT is a spot light in red with an 8 mm light outlet. It concentrates the light on a small spot and illuminates details of a few millimeters in a directed way, such as solder joints, SMD components, bores, engravings or small assemblies under macro and telecentric lenses.

Technical data

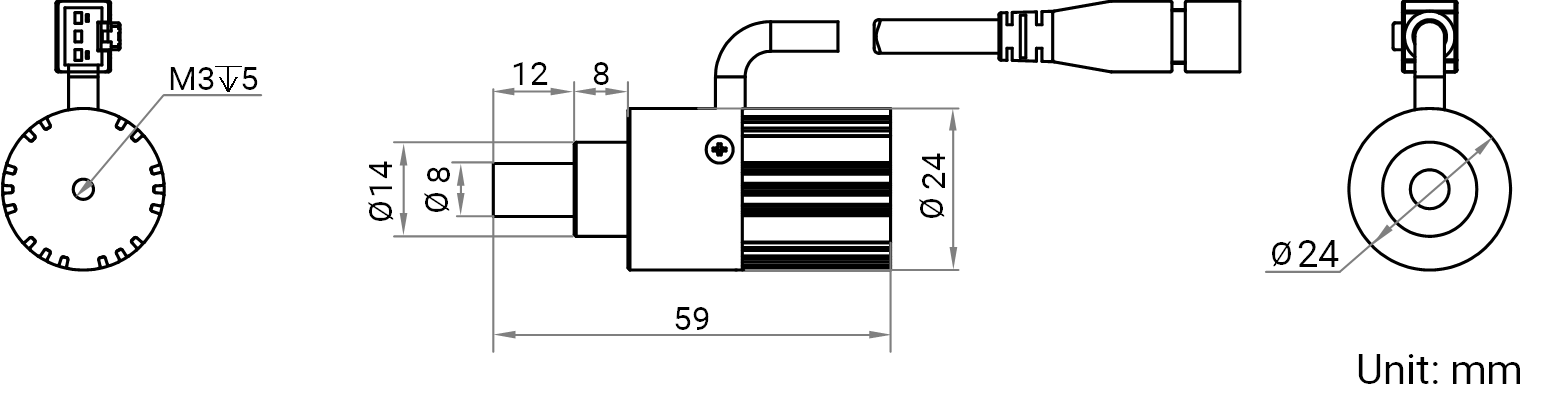

The working distance ranges from 65 mm to 200 mm; at 100 mm the light reaches more than 7,000 lux at the center. The red light has a wavelength of 620 to 630 nm. Power consumption is 1.7 W, the connection is an SMR-03V-B connector on a 1 m cable. The cylindrical housing is 59 mm long with a diameter of 24 mm and weighs 75 g.

Operating conditions

The permissible range is 0 °C to 40 °C in operation and -20 °C to 60 °C in storage, each at 20 % to 90 % relative humidity without condensation. HIKROBOT states the photobiological safety class as "no danger".

Applications and selection

Spot lights fit when a small field of view needs a lot of light, for example in macro or telecentric imaging in electronics production, micro-assembly or the inspection of small parts. The MV-LDSS-H-8-3 series comes in white, red, blue, green and yellow; choose the light color for contrast against the part, white for color cameras, the single colors for monochrome cameras, with a bandpass filter against ambient light where needed. The light runs on a HIKROBOT MV-LE series light controller; matching controllers, extension cables, cameras and lenses are listed in the catalog. We are glad to help with sizing by field of view, working distance and light color; requests go through the inquiry basket.
