OPT-M10044-151M M72 lens
Manufacturer part number: OPT-M10044-151M
Series: 151-MP-Festbrennweiten
- Focal length
- 100 mm
- Mount
- M72
- Mindestobjektdistanz (MOD)
- 300 mm
- Aperture
- F4.4 - F32
- Filtergewinde
- M80 × 0.75
- Resolution
- 151 MP
- Fokusbereich (ab Objektivvorderseite)
- 300 mm up to ∞
- Fokuseinstellung
- Manual
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-M10044-151M |
|---|---|
| Focal Length(mm) | 100 mm |
| Adjustion Type | manuell |
| Aperture(F/#) | F4.4 – F32 |
| Image Circle Ø(mm) | Ø67 mm |
| Working Distance(mm) | 300 mm – ∞ |
| Image Resolution(µm) | 3.76 µm |
| Effective Diameter Front(mm) | 55.1 mm |
| Effective Diameter Back(mm) | 55.5 mm |
| Back Focal Length(mm) | 26.49 mm |
| Mount | M72 |
| Weight(kg) | 1.92 kg |
| Size(mm) | 86.5 × 226 |
| Filter Thread | M80×0.75-6H |
| Working Temperature | -20 °C – +60 °C |
| Magnification（X） | 0.409 × at WD 300 | 0.342 × at WD 350 | 0.294 × at WD 400 | 0.230 × at WD 500 | 0.160 × at WD 700 | 0.130 × at WD 850 | 0.110 × at WD 1000 | 0.072 × at WD 1500 | 0.054 × at WD 2000 |
| Distortion | <0.41 % at WD 300 | <0.07 % at WD 500 | <0.15 % at WD 1000 |
| Coaxial | no |
| Flange Focal Distance(mm) | 19.55 mm |
| Lens Type | Festbrennweite |
| Max. Sensorformat | Nicht angegeben |
| Auflösung | 151 MP |
| Pixelgröße | 3.76 µm |
| Mindestobjektdistanz (MOD) | 300 mm |
| Spektralbereich | Nicht angegeben |
| Verzeichnung (max.) | < 0.41 % |
| Blendensteuerung | Nicht angegeben |
| Vibrationsfest | No |
| Baulänge | 226 mm |
| Durchmesser | Ø 86.5 mm |
| Lens type | Entocentric |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

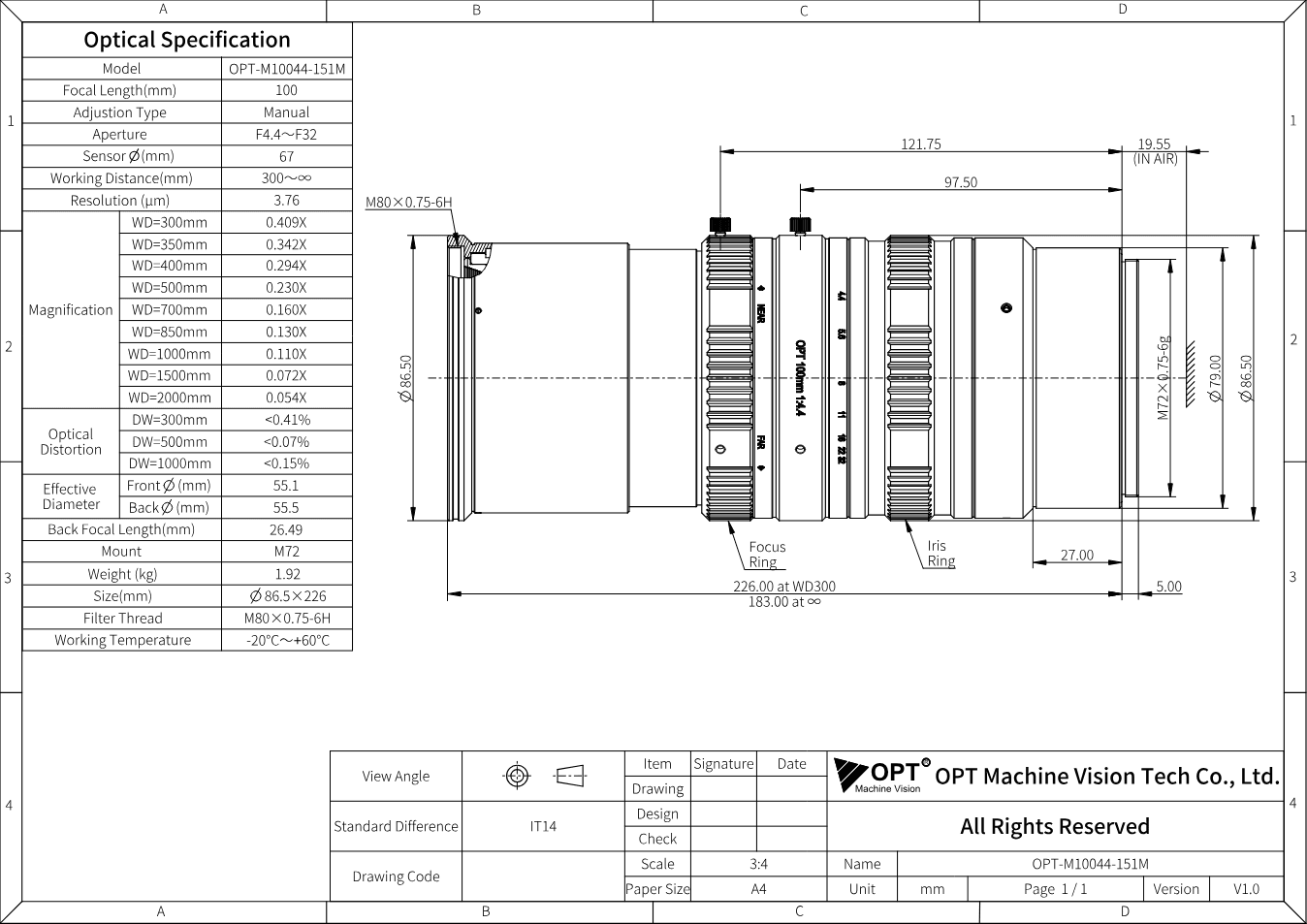

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-M10044-151M (PDF)
Datasheet · EN · 361 KB
- Download datasheet
Optische Daten (MTF) OPT-M10044-151M
Datasheet · EN · 2 MB
- Download datasheet
151-MP-Festbrennweiten - Serienbroschüre OPT
Datasheet · EN · 1 MB
Description
The OPT-M10044-151M is listed in OPT's series “151 MP Fixed Focal Length Lenses” with focal length 100 mm, aperture F4.4 - F32, image circle Ø67 mm. Further key data: working distance 300 mm - ∞, M72.
The 151 MP lenses are designed for sensors with a Ø67 mm image circle and 3.76 µm pixels - that is, for cameras of the 150 megapixel class. The floating focus maintains the optical performance over the entire working distance range, and the coating covers 400 to 1000 nm. They are used in semiconductor and display inspection, where one image has to capture a large field with the highest level of detail.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing is included.
