OPT-M6050-151M M72 lens
Manufacturer part number: OPT-M6050-151M
Series: 151-MP-Festbrennweiten
- Focal length
- 60 mm
- Mount
- M72
- Mindestobjektdistanz (MOD)
- 250 mm
- Aperture
- F5.0 - F32
- Filtergewinde
- M72 × 0.75
- Resolution
- 151 MP
- Fokusbereich (ab Objektivvorderseite)
- 250 mm up to ∞
- Fokuseinstellung
- Manual
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-M6050-151M |
|---|---|
| Focal Length(mm) | 60 mm |
| Adjustion Type | manuell |
| Aperture(F/#) | F5.0 – F32 |
| Image Circle Ø(mm) | Ø67 mm |
| Working Distance(mm) | 250 mm – ∞ |
| Image Resolution(µm) | 3.76 µm |
| Effective Diameter Front(mm) | 51.3 mm |
| Effective Diameter Back(mm) | 42.0 mm |
| Back Focal Length(mm) | 52.23 mm |
| Mount | M72 |
| Weight(kg) | 1.66 kg |
| Size(mm) | Ø77.5 × 194.03 |
| Filter Thread | M72×0.75-6H |
| Working Temperature | -20 °C – +60 °C |
| Magnification（X） | 0.232 × at WD 250 | 0.195 × at WD 300 | 0.147 × at WD 400 | 0.118 × at WD 500 | 0.099 × at WD 600 | 0.085 × at WD 700 | 0.074 × at WD 800 | 0.066 × at WD 900 | 0.060 × at WD 1000 |
| Distortion | <0.68 % at WD 250 | <0.34 % at WD 400 | <0.57 % at WD 1000 |
| Coaxial | no |
| Flange Focal Distance(mm) | 19.55 mm |
| Lens Type | Festbrennweite |
| Max. Sensorformat | Nicht angegeben |
| Auflösung | 151 MP |
| Pixelgröße | 3.76 µm |
| Mindestobjektdistanz (MOD) | 250 mm |
| Spektralbereich | Nicht angegeben |
| Verzeichnung (max.) | < 0.68 % |
| Blendensteuerung | Nicht angegeben |
| Vibrationsfest | No |
| Baulänge | 194.03 mm |
| Durchmesser | Ø 77.5 mm |
| Lens type | Entocentric |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

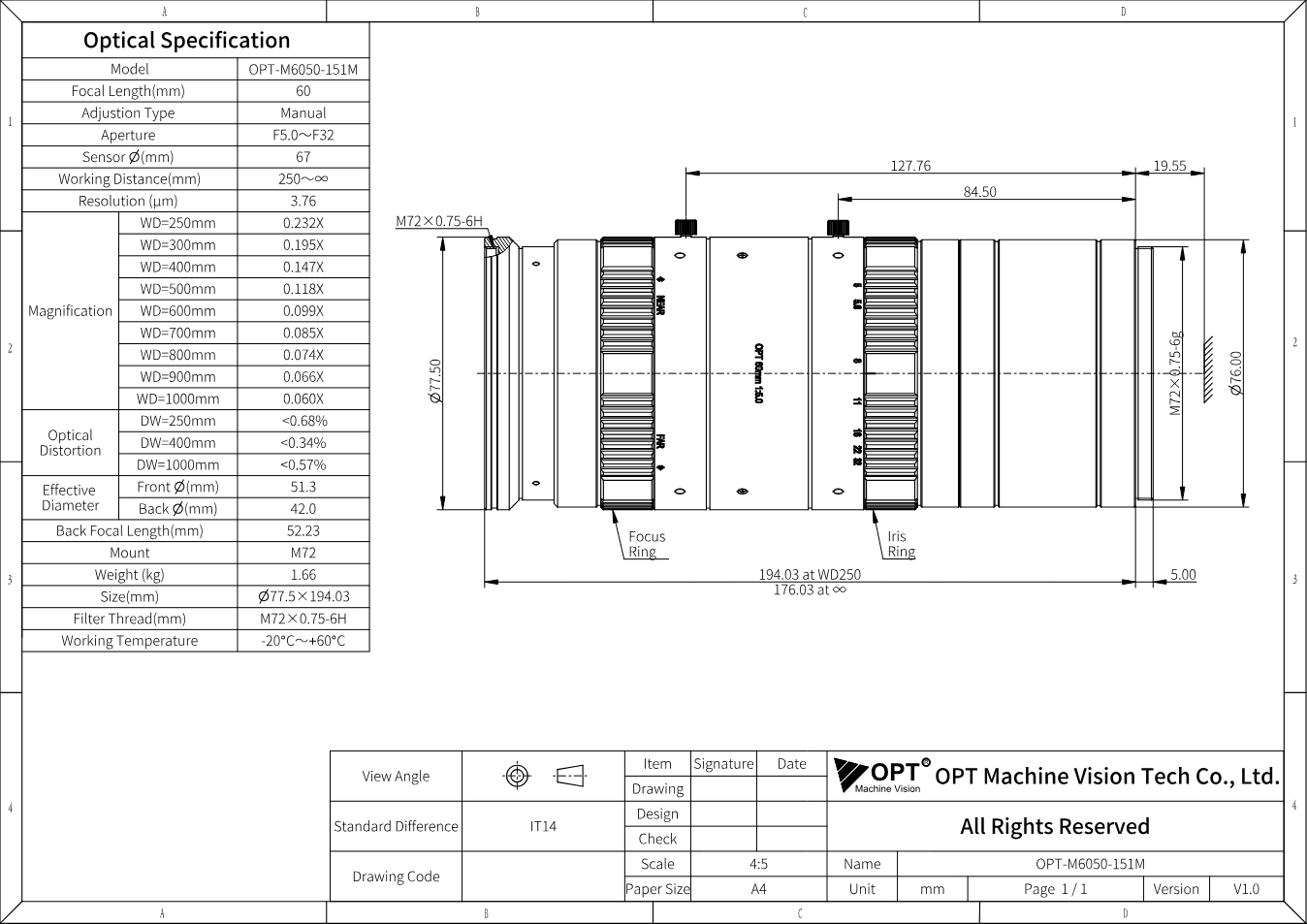

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-M6050-151M (PDF)
Datasheet · EN · 242 KB
- Download datasheet
Optische Daten (MTF) OPT-M6050-151M
Datasheet · EN · 2 MB
- Download datasheet
151-MP-Festbrennweiten - Serienbroschüre OPT
Datasheet · EN · 1 MB
- Download
3D-Modell OPT-M6050-151M (STEP)
Technical drawing · EN · 10 MB
Description
With focal length 60 mm, aperture F5.0 - F32, image circle Ø67 mm, OPT-M6050-151M belongs to the series “151 MP Fixed Focal Length Lenses” by OPT Machine Vision. In addition: working distance 250 mm - ∞, M72.
The 151 MP lenses are designed for sensors with a Ø67 mm image circle and 3.76 µm pixels - that is, for cameras of the 150 megapixel class. The floating focus maintains the optical performance over the entire working distance range, and the coating covers 400 to 1000 nm. They are used in semiconductor and display inspection, where one image has to capture a large field with the highest level of detail.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing and the STEP model are included.
