OPT-S0856 S-Mount (M12) lens
Manufacturer part number: OPT-S0856
Series: M12-Festbrennweiten
- Focal length
- 8 mm
- Max. Sensorformat
- 1/1.7" (3.45 µm)
- Mount
- S-Mount (M12)
- Mindestobjektdistanz (MOD)
- 80 mm
- Aperture
- F5.6
- Resolution
- 3.5 MP (berechnet)
- Fokusbereich (ab Objektivvorderseite)
- 80 mm up to ∞
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-S0856 |
|---|---|
| Focal Length(mm) | 8 mm |
| Aperture(F/#) | F5.6 |
| Image Circle Ø(mm) | Ø9.3 mm (1/1.7") |
| Working Distance(mm) | 80 mm – ∞ |
| Magnification（X） | 0.095 × at WD 80 |
| Image Resolution(µm) | 3.45 µm |
| TV Distortion(%) | <0.65 % at WD 300 |
| Back Focal Length(mm) | 5.84 mm at WD 80 | 5.02 mm at ∞ |
| Effective Diameter Front(mm) | 9.5 mm |
| Effective Diameter Back(mm) | 8.8 mm |
| Chief Ray Angle | <7.45° |
| Mount | S-Mount (M12) |
| Weight(kg) | 0.006 kg |
| Size(mm) | 14.00 × 21.46 |
| Working Temperature | -20 °C – +60 °C |
| Coaxial | no |
| Flange Focal Distance(mm) | 19.96 mm |
| Lens Type | Festbrennweite |
| Max. Sensorformat | 1/1.7" |
| Auflösung | 3.5 MP (von uns berechnet) |
| Pixelgröße | 3.45 µm |
| Mindestobjektdistanz (MOD) | 80 mm |
| Spektralbereich | Nicht angegeben |
| Verzeichnung (max.) | < 0.65 % |
| Filtergewinde | Nicht angegeben |
| Blendensteuerung | Nicht zutreffend |
| Vibrationsfest | No |
| Baulänge | 21.46 mm |
| Durchmesser | Ø 14 mm |
| Lens type | Entocentric |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

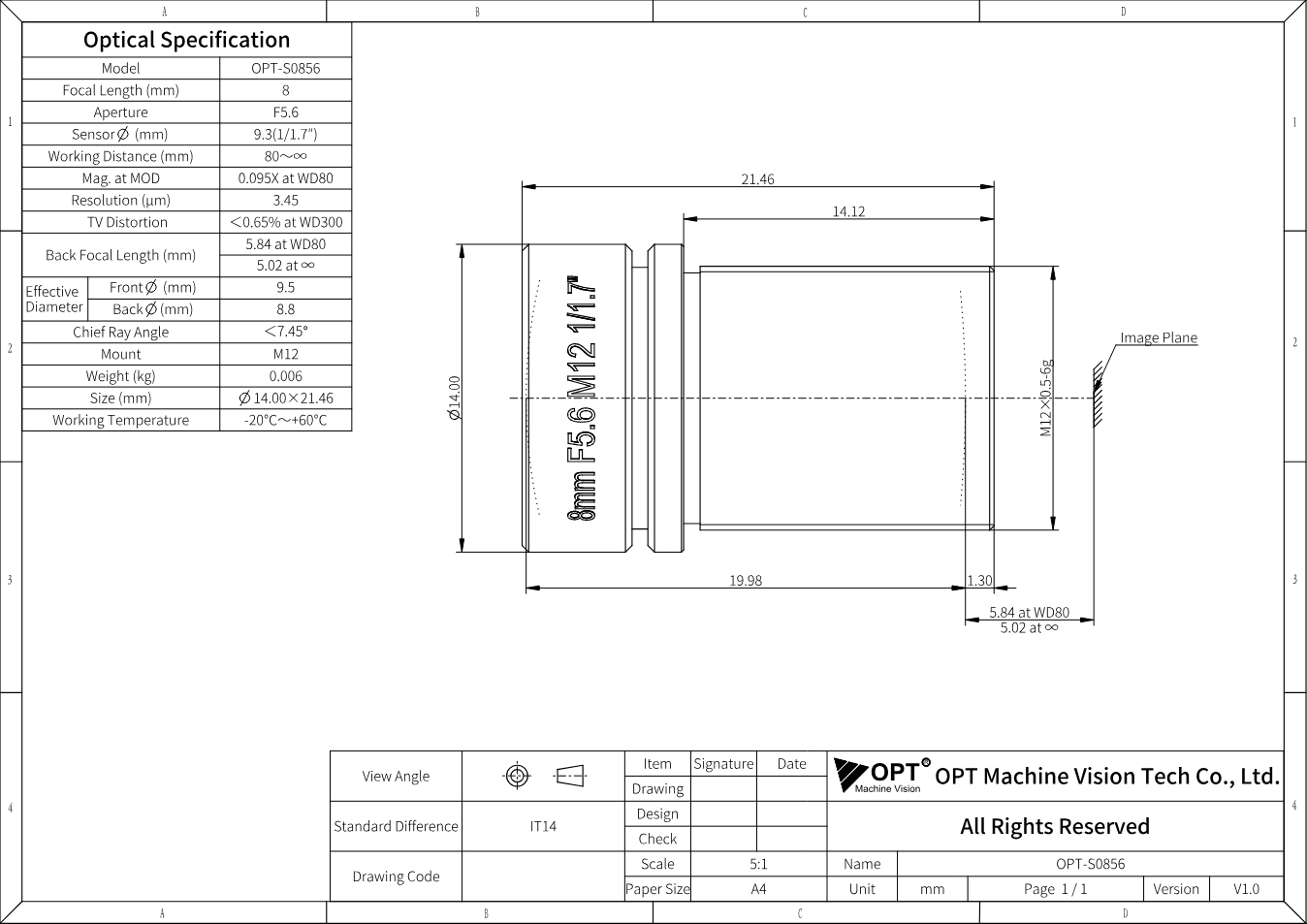

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-S0856 (PDF)
Datasheet · EN · 134 KB
- Download datasheet
Optische Daten (MTF) OPT-S0856
Datasheet · EN · 4096 KB
Description
OPT-S0856, an M12 fixed focal length lens of the series “M12 Fixed Focal Length Lenses” by OPT, comes with focal length 8 mm, aperture F5.6, image circle Ø9.3 mm (1/1.7"). Further key data: working distance 80 mm - ∞, S-Mount (M12).
The M12 series brings OPT optics to the S-Mount format: short overall length, fixed aperture F5.6 with large depth of field and a resolution close to the diffraction limit for sensors up to 1/1.7". The chief ray angle stays below 7.45°, so the illumination remains uniform. It sits in board-level cameras, smart cameras and code readers where a C-Mount lens would not fit.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing is included.
