OPT-M5045-78M M58 lens
Manufacturer part number: OPT-M5045-78M
Series: 78-MP-Festbrennweiten
- Focal length
- 50 mm
- Mount
- M58
- Mindestobjektdistanz (MOD)
- 150 mm
- Aperture
- F4.5 - F32
- Filtergewinde
- M58 × 0.75
- Resolution
- 78 MP
- Fokusbereich (ab Objektivvorderseite)
- 150 mm up to ∞
- Fokuseinstellung
- Manual
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-M5045-78M |
|---|---|
| Focal Length(mm) | 50 mm |
| Adjustion Type | manuell |
| Aperture(F/#) | F4.5 – F32 |
| Image Circle Ø(mm) | Ø44 mm |
| Working Distance(mm) | 150 mm – ∞ |
| Image Resolution(µm) | 3.2 µm |
| Effective Diameter Front(mm) | 37.4 mm |
| Effective Diameter Back(mm) | 27.9 mm |
| Back Focal Length(mm) | 45.73 mm |
| Mount | M58 |
| Weight(kg) | 0.75 kg |
| Size(mm) | 62 × 125 |
| Filter Thread | M58×0.75-6H |
| Working Temperature | -20 °C – +60 °C |
| Magnification（X） | 0.326 × at WD 150 | 0.247 × at WD 200 | 0.166 × at WD 300 | 0.125 × at WD 400 | 0.100 × at WD 500 | 0.072 × at WD 700 | 0.050 × at WD 1000 |
| Distortion | <0.61 % at WD 150 | <0.42 % at WD 200 | <0.16 % at WD 300 | <0.28 % at WD 500 |
| Coaxial | no |
| Flange Focal Distance(mm) | 46.5 mm |
| Max. Sensorformat | Nicht angegeben |
| Auflösung | 78 MP |
| Pixelgröße | 3.2 µm |
| Mindestobjektdistanz (MOD) | 150 mm |
| Spektralbereich | Nicht angegeben |
| Verzeichnung (max.) | < 0.61 % |
| Blendensteuerung | Nicht angegeben |
| Vibrationsfest | No |
| Baulänge | 125 mm |
| Durchmesser | Ø 62 mm |
| Lens type | Entocentric |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

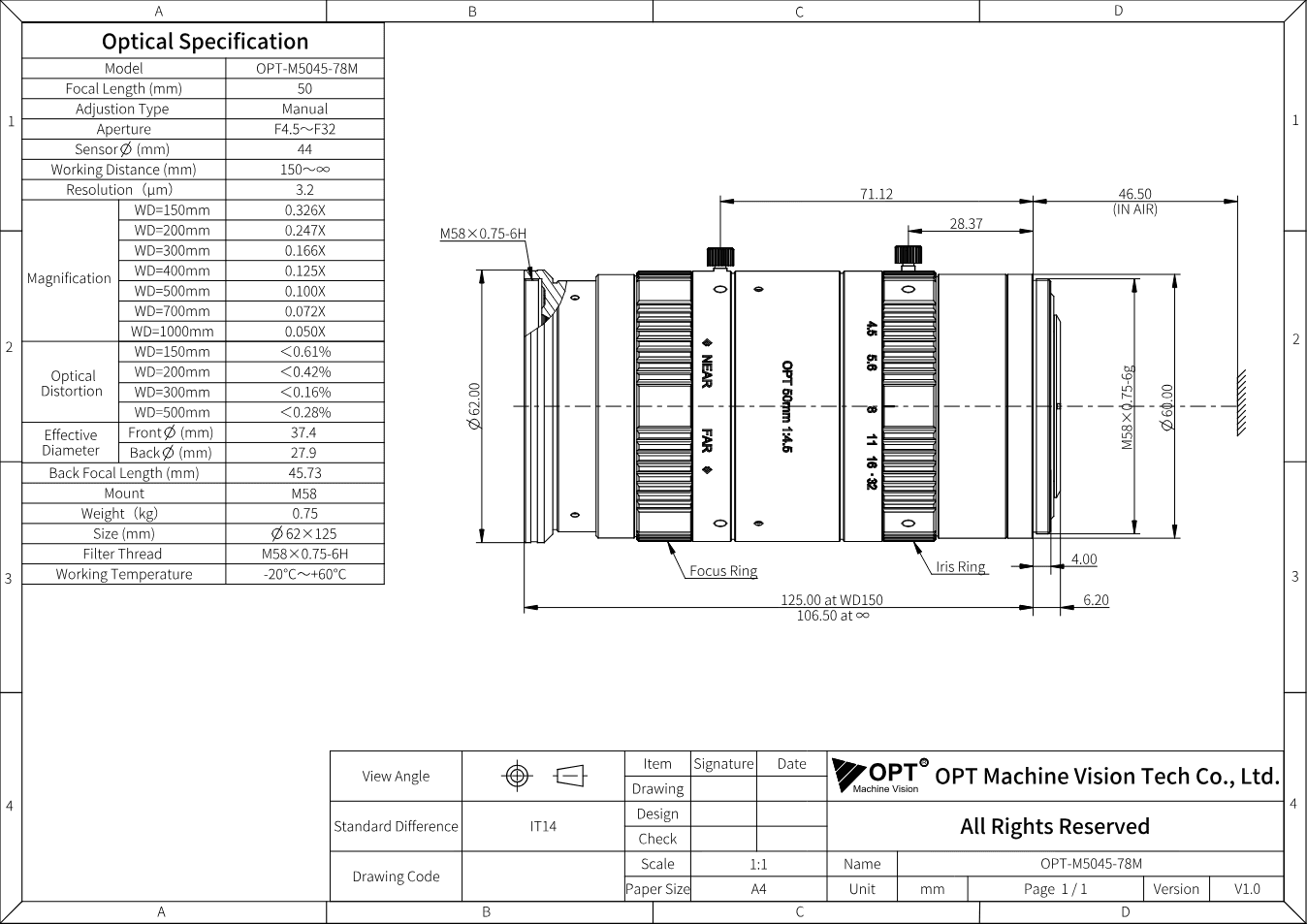

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-M5045-78M (PDF)
Datasheet · EN · 308 KB
- Download datasheet
Optische Daten (MTF) OPT-M5045-78M
Datasheet · EN · 4 MB
- Download datasheet
78-MP-Festbrennweiten - Serienbroschüre OPT
Datasheet · EN · 1 MB
- Download
3D-Modell OPT-M5045-78M (STEP)
Technical drawing · EN · 5 MB
Description
OPT-M5045-78M, a fixed focal length lens of the series “78 MP Fixed Focal Length Lenses” by OPT, comes with focal length 50 mm, aperture F4.5 - F32, image circle Ø44 mm. Also: working distance 150 mm - ∞, M58.
The 78 MP series serves full-frame sensors up to Ø44 mm with pixels from 3.2 µm and resolves up to 160 lp/mm across the entire field. The coating covers 400 to 1000 nm, and the floating focus secures the performance over a wide working distance range. Intended for cameras of the 60 to 80 megapixel class in semiconductor, display and precision measurement.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing and the STEP model are included.
