Ring light OPT-RIA263-RGB
Manufacturer part number: OPT-RIA263-RGB
Series: OPT-RIA-Serie (AOI-Beleuchtungen)
- Lens opening / inner diameter
- Ø 84 mm
- Outer diameter
- 263 mm
- Light color
- RGB
- Ring design / angle of incidence
- Multi-angle / AOI
- Operating mode / controller required
- Controller recommended
- Supply voltage / power consumption
- 24 V, 50 W
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-RIA263-RGB |
|---|---|
| Voltage | 24 V |
| Power | 24 V/50 W |
| Stock Code | 263 |
| LED Color | RGB |
| Weight(KG) | 3 kg |
| Outer diameter | Ø 263 mm |
| Dimensions (dia. x H) | Ø 263 × 82 mm |
| Inner diameter | Ø 94 mm |
| Ring design | Multi-angle / AOI |
| Lens opening / inner diameter | Ø 84 mm |
| Controller required | Recommended |
| Recommended controller | OPT-DPA2024E |
| Cable length | 800 20 mm |
| Series | Ring Lights |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

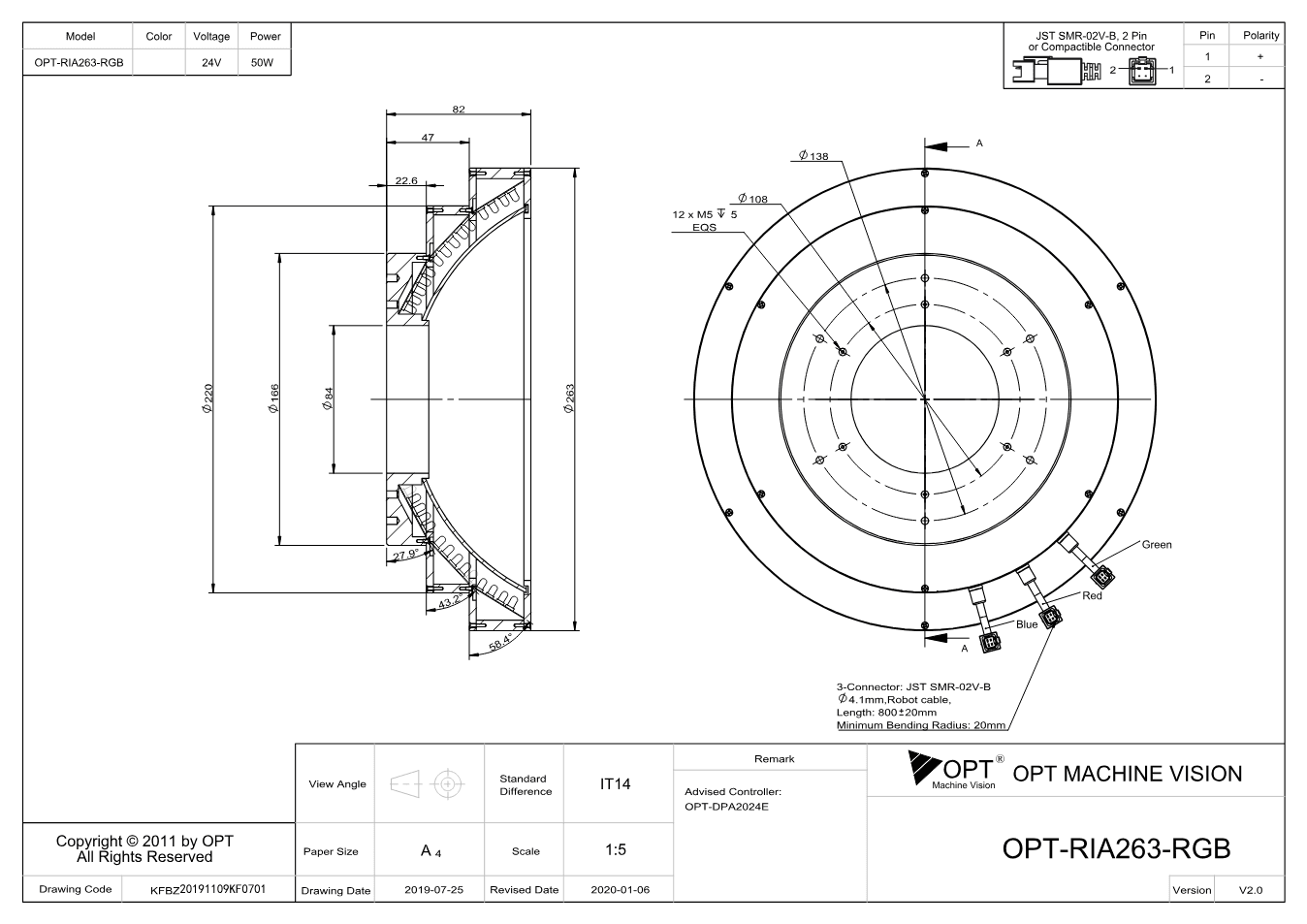

Dimensional drawing
Documents
- Download datasheet
OPT-RIA-Serie (AOI-Beleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 1 MB
- Download
Maßzeichnung OPT-RIA263 (V2.0) (PDF)
Technical drawing · EN · 122 KB
Accessories
Description
OPT-RIA263-RGB belongs to the OPT-RIA series by OPT - AOI ring light. Light color: RGB, input voltage: 24 V and power: 24V/50 W.
The OPT-RIA series is built for automated optical inspection (AOI) of printed circuit boards: red, green and blue LEDs light the board from different angles. The color mix in the image reveals the slope of a surface, which makes solder joints and component shapes assessable in three dimensions.
Which light is the right one depends not only on the form factor and the light color, but also on the working distance, the part under inspection and the camera. Tell us what you need to inspect and we will match light, lens and controller to one another and quote price and delivery time.
