OPT
Ring light OPT-RIA250-RGB
Manufacturer part number: OPT-RIA250-RGB
Series: OPT-RIA-Serie (AOI-Beleuchtungen)
- Lens opening / inner diameter
- 84 mm
- Outer diameter
- 250 mm
- Light color
- White, Blue
- Ring design / angle of incidence
- Multi-angle / AOI
- Operating mode / controller required
- Controller recommended
- Connection
- JST SMR-02V-B
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-RIA250-RGB |
|---|---|
| Color | White, blue |
| Voltage | 24 V | 24 V |
| Power | 50.2 W | 50.2 W |
| Outer diameter | Ø 250 mm |
| Dimensions (dia. x H) | Ø 250 × 77.5 mm |
| Inner diameter | Ø 84 mm |
| Ring design | Multi-angle / AOI |
| Controller required | Recommended |
| Recommended controller | OPT-DPA2024E |
| Connection | JST SMR-02V-B |
| Cable length | 800 ± 20 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

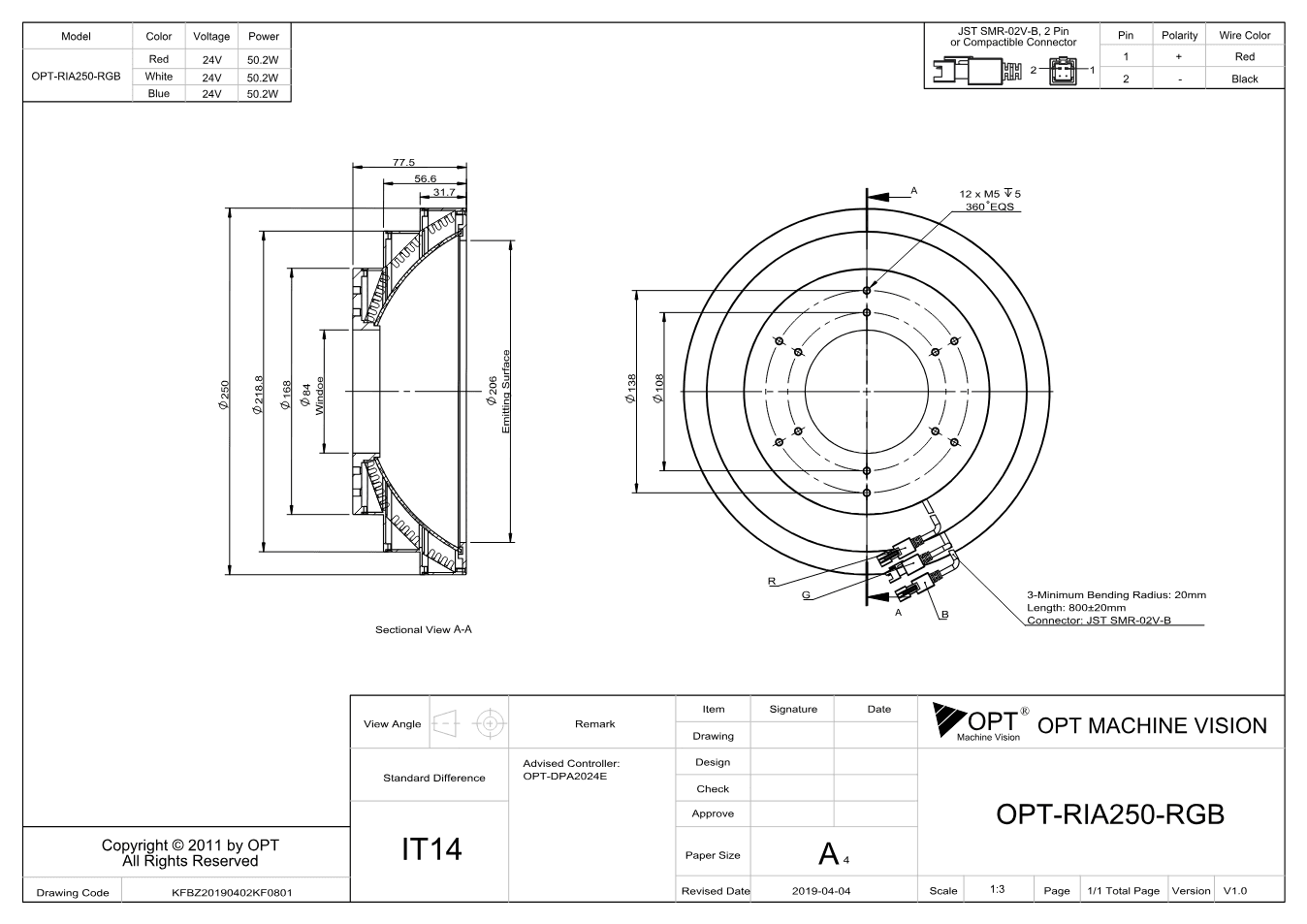

Dimensional drawing
Documents
- Download datasheet
OPT-RIA-Serie (AOI-Beleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 1 MB
- Download
Maßzeichnung OPT-RIA250 (PDF)
Technical drawing · EN · 75 KB
Accessories
Beleuchtungskabel(12)
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-D, 1 m, Schleppkette
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-R, 1 m, Roboterkabel
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-D, 2 m, Schleppkette
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-R, 2 m, Roboterkabel
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-D, 3 m, Schleppkette
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-R, 3 m, Roboterkabel
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-D, 5 m, Schleppkette
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-R, 5 m, Roboterkabel
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-D, 10 m, Schleppkette
JST SMR-02V-B · 10 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-R, 10 m, Roboterkabel
JST SMR-02V-B · 10 m
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-2B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-4B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
Description
OPT-RIA250-RGB denotes, within the OPT-RIA series (AOI lights) , the product type „AOI ring light“. Key figures are light color white / blue, input voltage 24 V | 24 V, power 50.2 W | 50.2 W.
Choosing a machine vision light is not only about color and power: the illuminated field, the mounting angle, the working distance and the way the light is driven matter just as much. The dimensional drawing is available both as an image and as a PDF.
Tell us your camera, your lens and your inspection task and we will check the combination and quote price and delivery time for the exact part number.
