OPT
Ring light OPT-CO70-RIA211-RGBW
Manufacturer part number: OPT-CO70-RIA211-RGBW
Series: OPT-RIA-Serie (AOI-Beleuchtungen)
- Outer diameter
- 211 mm
- Light color
- Blue, White
- Ring design / angle of incidence
- Multi-angle / AOI
- Operating mode / controller required
- Controller recommended
- Supply voltage / power consumption
- 24 V, 47.6 W
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-CO70-RIA211-RGBW |
|---|---|
| Color | Blue, white |
| Voltage | 24 V |
| Power | 47.6 W |
| Dimensions (dia. x H) | Ø 211 × 147 mm |
| Ring design | Multi-angle / AOI |
| Outer diameter | 211 mm |
| Controller required | Recommended |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

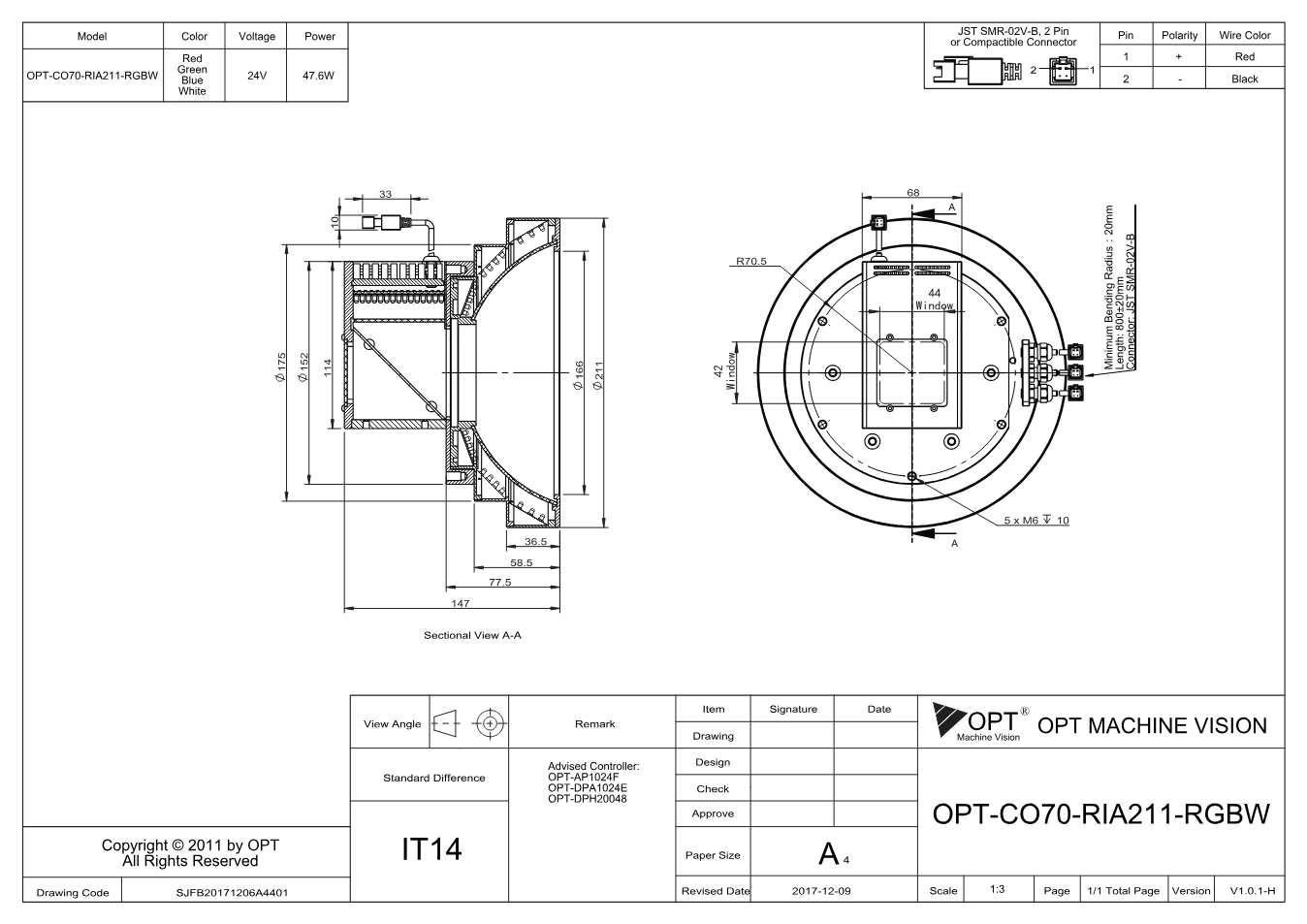

Dimensional drawing
Documents
- Download datasheet
OPT-RIA-Serie (AOI-Beleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 1183 KB
- Download
Maßzeichnung OPT-CO70-RIA211 (PDF)
Technical drawing · EN · 176 KB
Description
OPT-CO70-RIA211-RGBW denotes, within the OPT-RIA series (AOI lights) , the product type „AOI ring light“. Key figures are light color blue / white, input voltage 24 V, power 47.6 W.
Choosing a machine vision light is not only about color and power: the illuminated field, the mounting angle, the working distance and the way the light is driven matter just as much. The dimensional drawing is available both as an image and as a PDF.
Tell us your camera, your lens and your inspection task and we will check the combination and quote price and delivery time for the exact part number.
