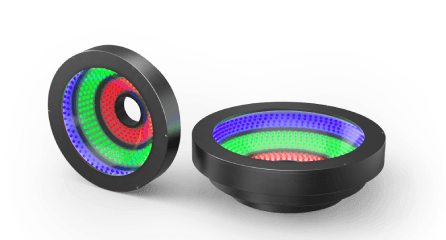

Ring light OPT-RIA211-RGBW
Manufacturer part number: OPT-RIA211-RGBW
Series: OPT-RIA-Serie (AOI-Beleuchtungen)
- Lens opening / inner diameter
- 66 mm
- Outer diameter
- 211 mm
- Light color
- Green, Red
- Ring design / angle of incidence
- Multi-angle / AOI
- Operating mode / controller required
- Controller recommended
- Connection
- JST SMR-02V-B
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-RIA211-RGBW |
|---|---|
| Color | Green, red |
| Voltage | 24 V | 24 V |
| Power | 13 W | 3.2 W |
| Outer diameter | Ø 211 mm |
| Dimensions (dia. x H) | Ø 211 × 74.63 mm |
| Inner diameter | Ø 66 mm |
| Ring design | Multi-angle / AOI |
| Controller required | Recommended |
| Recommended controller | OPT-AP1024F |
| Connection | JST SMR-02V-B |
| Cable length | 640 ± 20 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

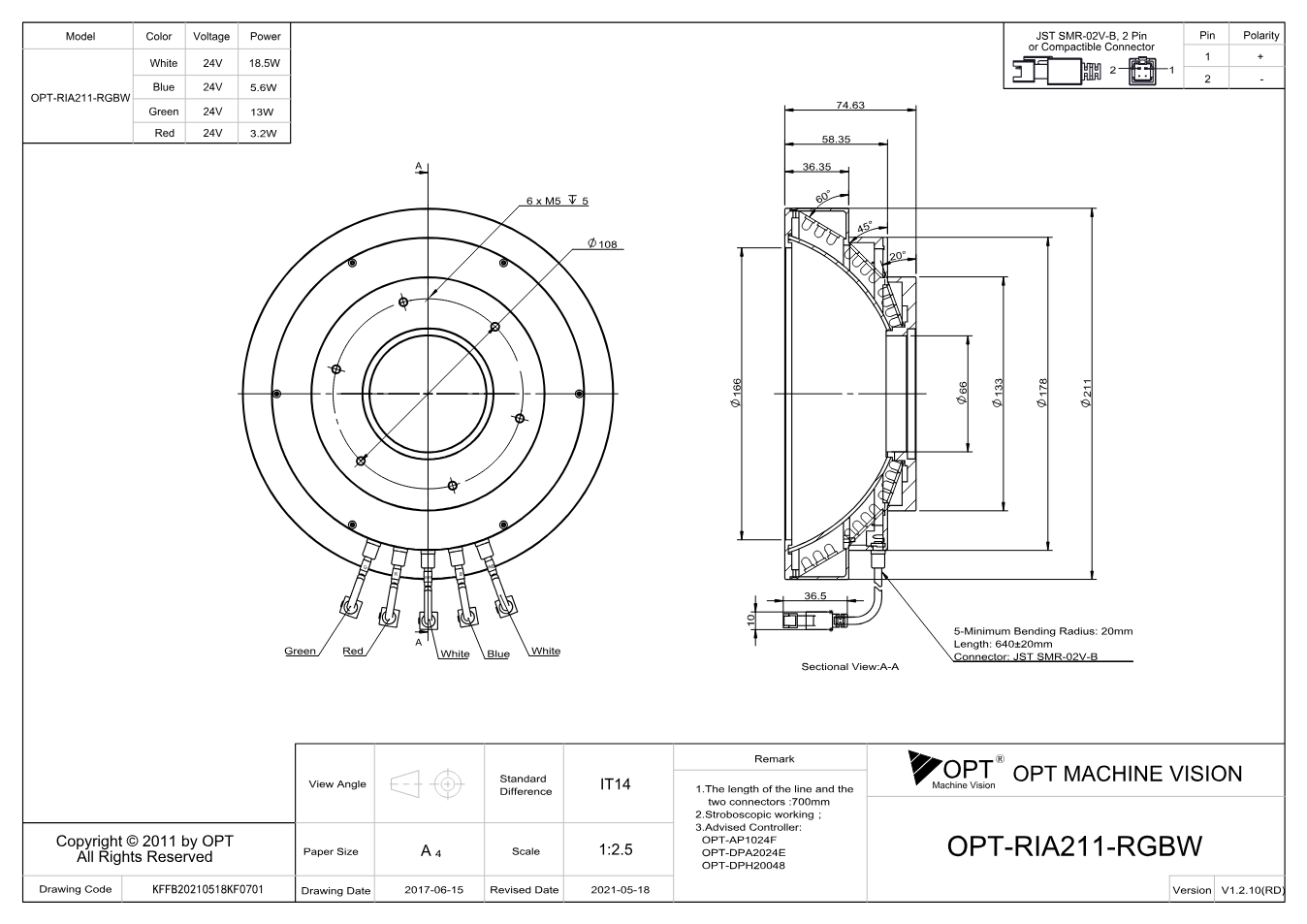

Dimensional drawing
Documents
- Download datasheet
OPT-RIA-Serie (AOI-Beleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 1 MB
- Download
Maßzeichnung OPT-RIA211 (V1.2.10) (PDF)
Technical drawing · EN · 177 KB
Accessories
Beleuchtungskabel(12)
OPT
Extension cable 2-pin (JST) OPT-EX1M-2P-D, 1 m, drag chain
JST SMR-02V-B · 1 m
OPT
Extension cable 2-pin (JST) OPT-EX1M-2P-R, 1 m, robot cable
JST SMR-02V-B · 1 m
OPT
Extension cable 2-pin (JST) OPT-EX2M-2P-D, 2 m, drag chain
JST SMR-02V-B · 2 m
OPT
Extension cable 2-pin (JST) OPT-EX2M-2P-R, 2 m, robot cable
JST SMR-02V-B · 2 m
OPT
Extension cable 2-pin (JST) OPT-EX3M-2P-D, 3 m, drag chain
JST SMR-02V-B · 3 m
OPT
Extension cable 2-pin (JST) OPT-EX3M-2P-R, 3 m, robot cable
JST SMR-02V-B · 3 m
OPT
Extension cable 2-pin (JST) OPT-EX5M-2P-D, 5 m, drag chain
JST SMR-02V-B · 5 m
OPT
Extension cable 2-pin (JST) OPT-EX5M-2P-R, 5 m, robot cable
JST SMR-02V-B · 5 m
OPT
Extension cable 2-pin (JST) OPT-EX10M-2P-D, 10 m, drag chain
JST SMR-02V-B · 10 m
OPT
Extension cable 2-pin (JST) OPT-EX10M-2P-R, 10 m, robot cable
JST SMR-02V-B · 10 m
OPT
Branch cable 2-pin (JST) OPT-EX1M-2P-2B, 1 m (0.5 m + 0.5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
OPT
Branch cable 2-pin (JST) OPT-EX1M-2P-4B, 1 m (0.5 m + 0.5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
More variants in this series
More OPT products in this category
Description
OPT-RIA211-RGBW denotes, within the OPT-RIA series (AOI lights) , the product type „AOI ring light“. Key figures are light color green / red, input voltage 24 V | 24 V, power 13 W | 3.2 W.
Choosing a machine vision light is not only about color and power: the illuminated field, the mounting angle, the working distance and the way the light is driven matter just as much. The dimensional drawing is available both as an image and as a PDF.
Tell us your camera, your lens and your inspection task and we will check the combination and quote price and delivery time for the exact part number.
