Branch cable 2-pin (JST) OPT-EX1M-2P-2B, 1 m (0.5 m + 0.5 m)
Manufacturer part number: OPT-EX1M-2P-2B
- Length
- 1 m (0.5 m + 0.5 m)
- Connector A → connector B
- JST SMR-02V-B → JST SMP-02V-BC (je Zweig)
- Suitable for
- OPT-Leuchten and -Controller with JST-Steckverbinder
Suitable for: OPT-Leuchten und -Controller mit JST-Steckverbinder
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-EX1M-2P-2B |
|---|---|
| Type | Verzweigungskabel 2-pin (JST) |
| Connector | 2-poliger JST-Steckverbinder |
| Connector (drawing) | JST SMR-02V-B |
| Connector (drawing) | JST SMP-02V-BC (per branch) |
| Length | 1 m (0.5 m + 0.5 m) |
| Diameter D | 4.1 mm |
| Min. Bending Radius – Fixed Installation | 5D |
| Min. Bending Radius – Motion Installation | 10D |
| Branches | 1 auf 2 |
| Accessory type | Lighting cable |
| Suitable for | OPT-Leuchten and -Controller with JST-Steckverbinder |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

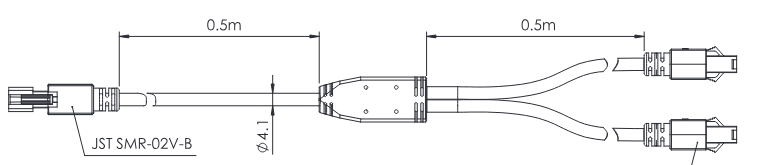

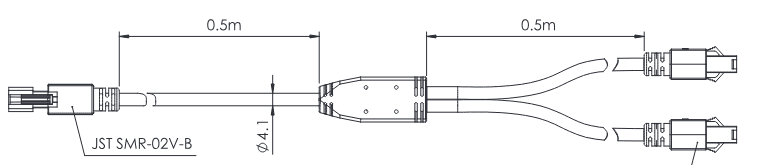

Dimensional drawing
Description
OPT-EX1M-2P-2B belongs to the cable accessories of the OPT-controller range: branch cable 2-pin (JST), 1 m (0.5 m + 0.5 m). connectors JST SMR-02V-B to JST SMP-02V-BC (per branch) (2 branches), cable diameter 4.1 mm, minimum bending radius 5D for fixed installation and 10D when moving.
OPT points out that the suitable cable length depends on the controller and should be agreed with the application engineer in advance. The matching controllers are linked below; just ask for price and delivery time.
