Light controller OPT-DPA20024EB-2
Manufacturer part number: OPT-DPA20024EB-2
- Control
- digital
- Output type
- Constant current
- Channels
- 2
- Output power
- 480 W per channel
- Light voltage
- 24 V
- Operating mode
- Dauerlicht / Strobe
- Communication
- RS232, Ethernet (100 Mbit)
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-DPA20024EB-2 |
|---|---|
| Controller type | digital |
| Output type | Constant current |
| Channels | 2 |
| Compatible Light | 24 V |
| Input voltage | 100-120 V AC / 200-240 V AC, 50/60 Hz |
| Input current | 24 A at 115 V AC / 15 A at 230 V AC |
| Lighting mode | Dauerlicht / Strobe |
| Auto sensing of light rated current | für OPT-Leuchten mit 1 A bis 20 A |
| Manual setting for max. output current | 100 mA up to 20 A |
| Intensity control | Helligkeit in 256 Stufen adjustable |
| Short-circuit protection | At einem Kurzschluss an einem Controllerausgang spricht der Kurzschlussschutz des betreffenden Kanals an; der Kanal wird abgeschaltet and das Display zeigt „Er2“. |
| Overcurrent protection | Überschreitet der Ausgangsstrom eines Kanals den eingestellten Wert, spricht der Überstromschutz dieses Kanals an; der Kanal wird abgeschaltet und das Display zeigt „Er1“. |
| Normal trigger | Helligkeit in 256 Stufen adjustable |
| Normal trigger time unit | 1 µs / 10 µs / 1 ms / 100 ms |
| Normal trigger pulse width | 1 µs up to 30 s |
| High intensity trigger | 20 A je Kanal, Ausgangsspannung maximum 24 V |
| Highlight trigger pulse width time unit | 1 µs / 10 µs / 1 ms |
| Highlight trigger pulse width | 1 µs up to 500 ms |
| Programmable trigger | bis zu 64 Abläufe, jeweils mit Helligkeit, Pulsbreite und Triggerquelle |
| DO output | 5–24 V, 50 mA, Open-Drain |
| Response time | ≥ 100 µs |
| Response frequency | ≤ 10 µs (Herstellerangabe) |
| The unit for setting trigger delay time | 1 µs / 10 µs / 1 ms |
| Set trigger delay | 1 µs up to 6500 ms |
| Output power | 480 W je Kanal |
| Communication | RS232, Ethernet (100 Mbit) |
| Standby power consumption | ≤ 18 W |
| Hi-Pot test | AC 1500 V für 1 Minute, Ableitstrom < 10 mA |
| Insulation | DC 500 V, Isolationswiderstand > 20 MΩ |
| Operating temperature | Operation -5 °C up to 50 °C |
| Dimensions (mm³)(L×W×H) | 182 × 353.17 × 157 mm |
| Weight (kg) | 8.62 kg |
| Accessory type | Lichtcontroller |
| series | Ultra-high Power Digital Current Controller |
| light_connector | 6-poliger Rundsteckverbinder: 1 Fan+, 2 Fan−, 3 Light−, 4 Light+, 5 Res, 6 Res |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

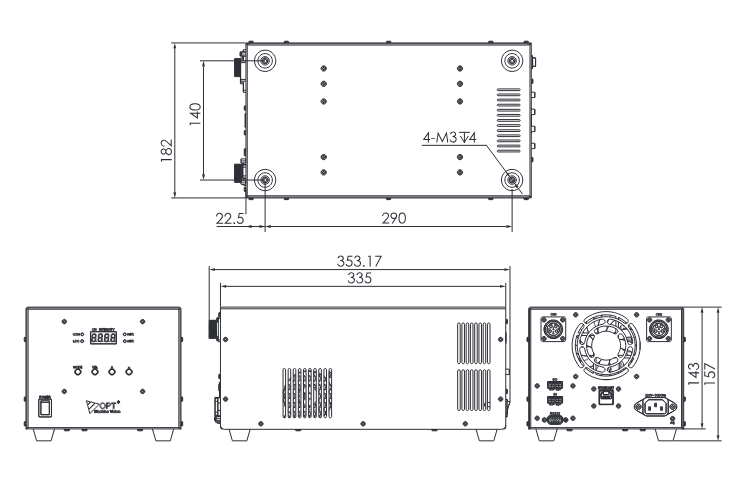

Dimensional drawing
Documents
- Download datasheet
Datasheet Ultra-high Power Digital Current Controller (OPT)
Datasheet · EN · 8 MB
- Download
OPT Controller Demo-Software V3.7.1 (Windows)
Software / firmware · EN · 29 MB
- Download
OPT Controller SDK V1.2.2
Software / firmware · EN · 672 KB
- Download
OPT Controller Software für Linux x86_64 V2.27
Software / firmware · EN · 1 MB
- Download
Programmierhandbuch OPT Digital Light Source Controller V1.2.2
Manual · EN · 1 MB
- Download
Communication protocol OPT Digitalcontroller V3.4
Manual · EN · 148 KB
Accessories
Beleuchtungskabel(18)
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX3M-6P-S-6A, 3 m
ZQ GX16M-6A · 3 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX5M-6P-S-6A, 5 m
ZQ GX16M-6A · 5 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX10M-6P-S-6A, 10 m
ZQ GX16M-6A · 10 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX20M-6P-S-6A, 20 m
ZQ GX16M-6A · 20 m
OPT
Verlängerungskabel 6-polig, 20 A OPT-EX3M-6P-S-20A, 3 m
WS20J6TQ · 3 m
OPT
Verlängerungskabel 6-polig, 20 A OPT-EX5M-6P-S-20A, 5 m
WS20J6TQ · 5 m
OPT
Verlängerungskabel 6-polig, 20 A OPT-EX10M-6P-S-20A, 10 m
WS20J6TQ · 10 m
OPT
Verlängerungskabel 6-polig, 20 A OPT-EX20M-6P-S-20A, 20 m
WS20J6TQ · 20 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX1M-6P-S-6A, 1 m
ZQ GX16M-6A · 1 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX2M-6P-S-6A, 2 m
ZQ GX16M-6A · 2 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX3M-6P-S-6A, 3 m
ZQ GX16M-6A · 3 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX5M-6P-S-6A, 5 m
ZQ GX16M-6A · 5 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX10M-6P-S-6A, 10 m
ZQ GX16M-6A · 10 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX1M-6P-S-20A, 1 m
WS20J6TQ · 1 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX2M-6P-S-20A, 2 m
WS20J6TQ · 2 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX3M-6P-S-20A, 3 m
WS20J6TQ · 3 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX5M-6P-S-20A, 5 m
WS20J6TQ · 5 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX10M-6P-S-20A, 10 m
WS20J6TQ · 10 m
Description
The DPA20024EB series is OPT's most powerful digital current controller for 24 V lights with 6-pin connector: up to 20 A continuous current and 480 W per channel, continuous light and strobe, 256 brightness levels, programmable sequences and control via RS232 or Ethernet - for large area and line lights that a standard controller can no longer supply.
OPT-DPA20024EB-2: 2 channels, 480 W per channel, total 960 W. dimensions 182 × 353.17 × 157 mm; weight 8.62 kg. Light connector: 6-pin round connector: 1 Fan+, 2 Fan−, 3 Light−, 4 Light+, 5 Res, 6 Res. In the download area you will find the OPT data sheet of the series, demo software, SDK and programming manual and communication protocol. We are glad to advise you on matching controller, light and cable - just ask for price and delivery time.
