Light controller OPT-DPA6024ES-8
Manufacturer part number: OPT-DPA6024ES-8
- Control
- digital
- Output type
- Constant current
- Channels
- 8
- Output power
- 144 W per channel · ≤ 700 W total
- Light voltage
- 24 V
- Operating mode
- Dauerlicht / Strobe, Umschaltung per Betriebsartenschalter or Demo-Software
- Communication
- RS232, Ethernet (100 Mbit)
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-DPA6024ES-8 |
|---|---|
| Controller type | digital |
| Output type | Constant current |
| Channels | 8 |
| Compatible Light | 24 V |
| Input voltage | 100-240 V AC, 50/60 Hz |
| Input current | 9 A at 115 V AC / 4 A at 230 V AC |
| Lighting mode | Dauerlicht / Strobe, Umschaltung per Betriebsartenschalter or Demo-Software |
| Manual setting for max. output current | 25 mA bis 6 A (über Demo-Software) |
| Intensity control | 256 Stufen, über Funktionstasten oder Demo-Software |
| Short-circuit protection | ja – at Kurzschluss am Ausgang wird der Kanal abgeschaltet, das Display zeigt „Er2“ |
| Normal trigger | 256 Helligkeitsstufen adjustable |
| Normal trigger time unit | 1 µs / 10 µs / 1 ms / 100 ms (über Demo-Software) |
| Normal trigger pulse width | 1 µs bis 30 s (über Funktionstasten oder Demo-Software) |
| High intensity trigger | 6 A je Kanal, Ausgangsspannung maximum 24 V |
| High intensity trigger time unit | 1 µs / 10 µs / 1 ms (über Demo-Software) |
| High intensity trigger pulse width | 1 µs bis 500 ms (über Funktionstasten oder Demo-Software) |
| Programmable trigger | bis zu 64 Abläufe, jeweils mit Helligkeit, Pulsbreite und Triggerquelle |
| Number of line-scan rows | 1 bis 65000 (über Demo-Software) |
| DI input | 8 isolierte differenzielle Eingänge; Encoder A/B, Line- und Frame-Signal (5 V, 100 mA) |
| DO output | 8 isolierte differenzielle Ausgänge; Line- und Frame-Signal (Low 0–2 V, High 5–24 V) |
| Frequency multiplication | 1, 2, 4, 8, 16, 32 (über Demo-Software) |
| Frequency division | 0 bis 200 (über Demo-Software) |
| Trigger response time | ≤ 5 µs |
| Trigger response frequency | 80 kHz |
| Trigger delay time unit | 1 µs / 10 µs / 1 ms (über Demo-Software) |
| Trigger delay | 1 µs bis 6500 ms (über Demo-Software) |
| Output power | 144 W je Kanal, gesamt ≤ 700 W |
| Communication (im Katalog als "Trigger delay" beschriftet) | RS232, Ethernet (100 Mbit) |
| Standby power consumption | ≤ 18.5 W (at 220 V) |
| Hi-Pot test | AC 1500 V für 1 Minute, Ableitstrom < 10 mA |
| Insulation | DC 500 V, Isolationswiderstand > 20 MΩ |
| Operating temperature | Operation -5 °C up to 50 °C |
| Dimensions (mm³)(L×W×H) | 234 × 357.5 × 176 mm |
| Weight (Kg) | 4.48 kg |
| Accessory type | Lichtcontroller |
| series | Line-scan Type Digital Current Controller |
| light_connector | 6-poliger Rundsteckverbinder: 1 Light+, 2 Light−, 3 Fan+, 4 Fan−, 5 NC, 6 NC |
| Response frequency | 80 kHz |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

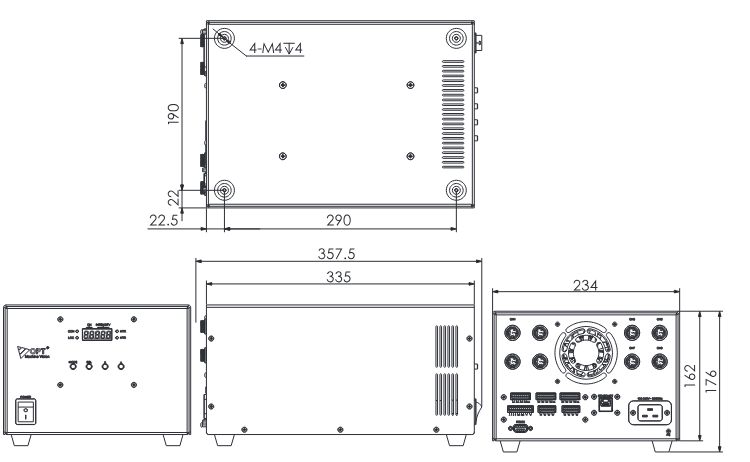

Dimensional drawing
Documents
- Download datasheet
Datasheet Line-scan Type Digital Current Controller (OPT)
Datasheet · EN · 6295 KB
- Download
OPT Controller Demo-Software V3.7.1 (Windows)
Software / firmware · EN · 30127 KB
- Download
OPT Controller SDK V1.2.2
Software / firmware · EN · 672 KB
- Download
OPT Controller Software für Linux x86_64 V2.27
Software / firmware · EN · 1071 KB
- Download
Manual OPT-DPA6024ES-X Series LED Light Controller User Manual
Manual · EN · 1444 KB
- Download
Programmierhandbuch OPT Digital Light Source Controller V1.2.2
Manual · EN · 1380 KB
- Download
Communication protocol OPT Digitalcontroller V3.4
Manual · EN · 148 KB
Accessories
Beleuchtungskabel(18)
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX3M-6P-S-6A, 3 m
ZQ GX16M-6A · 3 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX5M-6P-S-6A, 5 m
ZQ GX16M-6A · 5 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX10M-6P-S-6A, 10 m
ZQ GX16M-6A · 10 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX20M-6P-S-6A, 20 m
ZQ GX16M-6A · 20 m
OPT
Verlängerungskabel 6-polig, 20 A OPT-EX3M-6P-S-20A, 3 m
WS20J6TQ · 3 m
OPT
Verlängerungskabel 6-polig, 20 A OPT-EX5M-6P-S-20A, 5 m
WS20J6TQ · 5 m
OPT
Verlängerungskabel 6-polig, 20 A OPT-EX10M-6P-S-20A, 10 m
WS20J6TQ · 10 m
OPT
Verlängerungskabel 6-polig, 20 A OPT-EX20M-6P-S-20A, 20 m
WS20J6TQ · 20 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX1M-6P-S-6A, 1 m
ZQ GX16M-6A · 1 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX2M-6P-S-6A, 2 m
ZQ GX16M-6A · 2 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX3M-6P-S-6A, 3 m
ZQ GX16M-6A · 3 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX5M-6P-S-6A, 5 m
ZQ GX16M-6A · 5 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX10M-6P-S-6A, 10 m
ZQ GX16M-6A · 10 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX1M-6P-S-20A, 1 m
WS20J6TQ · 1 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX2M-6P-S-20A, 2 m
WS20J6TQ · 2 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX3M-6P-S-20A, 3 m
WS20J6TQ · 3 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX5M-6P-S-20A, 5 m
WS20J6TQ · 5 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX10M-6P-S-20A, 10 m
WS20J6TQ · 10 m
Description
The DPA6024ES series is OPT's digital current controller for line scan camera applications: 144 W per channel (up to 6 A) for 24 V lights, differential encoder/line/frame inputs, frequency multiplication (1-32×) and division (0-200), line counter up to 65.000 and differential DO outputs that condition the trigger signal for camera or frame grabber. Response time ≤ 5 µs at up to 80 kHz.
OPT-DPA6024ES-8: 8 channels, 144 W per channel, total ≤ 700 W. dimensions 234 × 357.5 × 176 mm; weight 4.48 kg. Light connector: 6-pin round connector: 1 Light+, 2 Light−, 3 Fan+, 4 Fan−, 5 NC, 6 NC. In the download area you will find the OPT data sheet of the series, the manual, demo software, SDK and programming manual and communication protocol. We are glad to advise you on matching controller, light and cable - just ask for price and delivery time.
