Light controller OPT-DPA6024EB-2
Manufacturer part number: OPT-DPA6024EB-2
- Control
- digital
- Output type
- Constant current
- Channels
- 2
- Output power
- 144 W per channel
- Light voltage
- 24 V
- Operating mode
- Dauerlicht / Strobe
- Communication
- RS232, Ethernet (100 Mbit)
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-DPA6024EB-2 |
|---|---|
| Controller type | digital |
| Output type | Constant current |
| Channels | 2 |
| Compatible Light | 24 V |
| Input voltage | V1: 100-240 V AC, 50/60 Hz; V3: 100-120 V AC / 200-240 V AC, 50/60 Hz |
| Input current | V1: 4.2 A at 115 V AC / 2.1 A at 230 V AC; V3: 6.8 A at 115 V AC / 3.4 A at 230 V AC |
| Lighting mode | Dauerlicht / Strobe |
| Auto sensing of light rated current | für OPT-Leuchten mit 200 mA bis 6 A |
| Manual setting for max. output current | 25 mA up to 6 A |
| Intensity control | Helligkeit in 256 Stufen adjustable |
| Short-circuit protection | At einem Kurzschluss an einem Controllerausgang spricht der Kurzschlussschutz des betreffenden Kanals an; der Kanal wird abgeschaltet and das Display zeigt „Er2“. |
| Overcurrent protection | Überschreitet der Ausgangsstrom eines Kanals den eingestellten Wert, spricht der Überstromschutz dieses Kanals an; der Kanal wird abgeschaltet und das Display zeigt „Er1“. |
| Normal trigger | Helligkeit in 256 Stufen adjustable |
| Common Trigger Pulse Width Time Units | 1 µs / 10 µs / 1 ms / 100 ms |
| Normal trigger pulse width | 1 µs up to 30 s |
| Highlight Trigger Mode | 6 A Ausgang je Kanal |
| Highlight trigger pulse width time unit | 1 µs / 10 µs / 1 ms |
| Highlight trigger pulse width | 1 µs up to 500 ms |
| Programmable trigger | bis zu 64 Abläufe, jeweils mit Helligkeit, Pulsbreite und Triggerquelle |
| DO output | V1: –; V3: 5–24 V, 50 mA, Open-Drain |
| Response time | V1: ≤ 10 µs; V3: ≤ 300 µs |
| Response frequency | V1: ≤ 40 kHz; V3: ≤ 2 kHz |
| Setting the trigger delay time unit | 1 µs / 10 µs / 1 ms / 100 ms |
| Set trigger delay | 1 µs up to 6500 ms |
| Output power | 144 W je Kanal |
| Communication | RS232, Ethernet (100 Mbit) |
| Standby power consumption | V1: ≤ 13.3 W; V3: ≤ 15.4 W |
| Hi-Pot test | AC 1500 V für 1 Minute, Ableitstrom < 10 mA |
| Insulation | DC 500 V, Isolationswiderstand > 20 MΩ |
| Operating temperature | Operation -5 °C up to 50 °C |
| Dimensions(mm³)(L × W × H) | V1: 91 × 132.5 × 170 mm; V3: 147 × 347.1 × 144.5 mm |
| Weight (kg) | V1: 1.3 kg; V3: 2.7 kg |
| Accessory type | Lichtcontroller |
| series | High Power Digital Current Controller |
| light_connector | 6-poliger Rundsteckverbinder: 1 Light+, 2 Light−, 3 Fan+, 4 Fan−, 5 Res (Markierungswiderstand für die automatische Stromerkennung), 6 Res |
| Response frequency | V1: ≤ 40 kHz; V3: ≤ 2 kHz |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

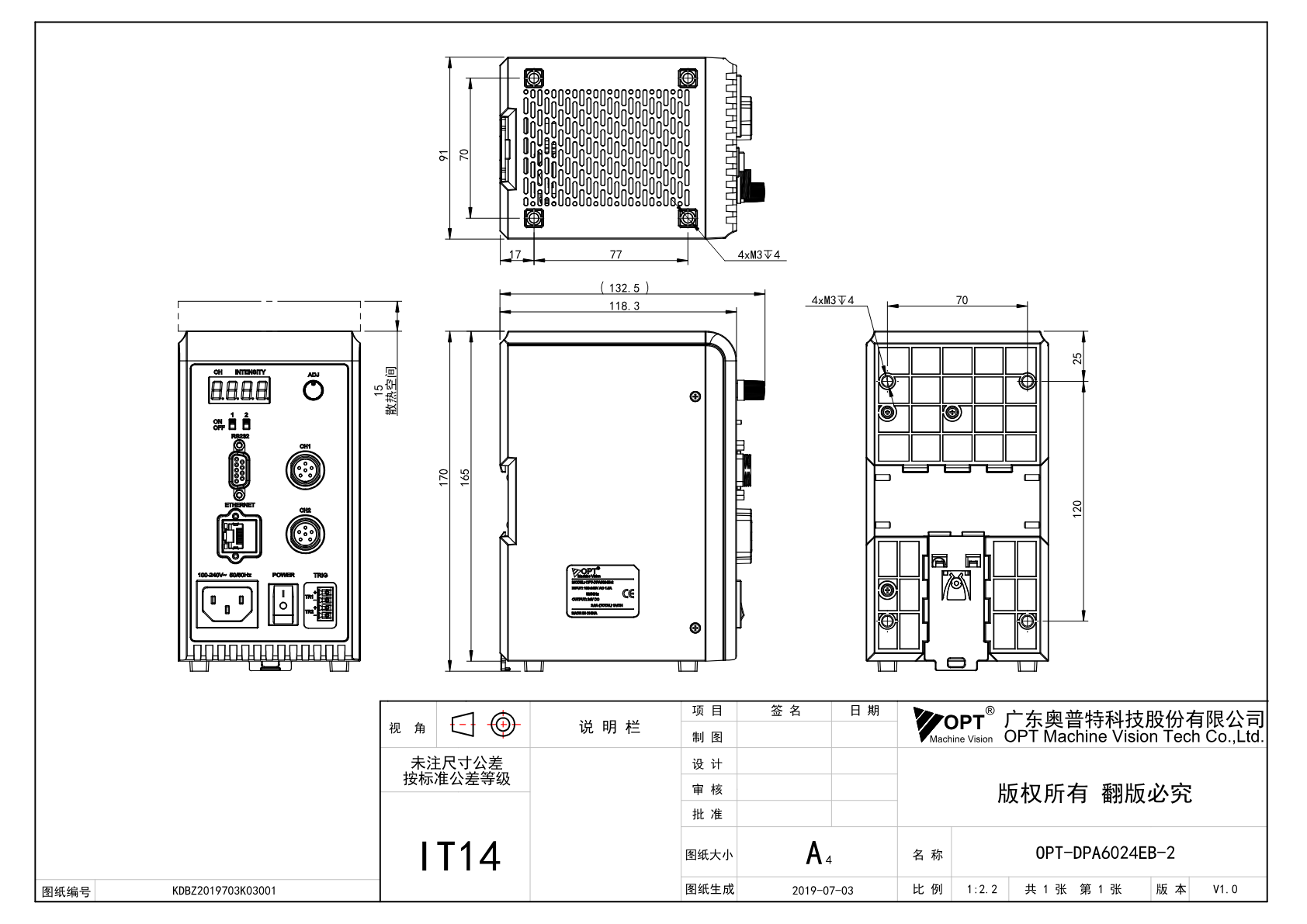

Dimensional drawing
Documents
- Download datasheet
Datasheet High Power Digital Current Controller (OPT)
Datasheet · EN · 3 MB
- Download
Maßzeichnung OPT-DPA6024EB-2 (OPT-DPA6024EB-2-V1.0, PDF)
Technical drawing · EN · 421 KB
- Download
OPT Controller Demo-Software V3.7.1 (Windows)
Software / firmware · EN · 29 MB
- Download
OPT Controller SDK V1.2.2
Software / firmware · EN · 672 KB
- Download
OPT Controller Software für Linux x86_64 V2.27
Software / firmware · EN · 1 MB
- Download
Manual OPT-DPA6024EB Light Source Controller User Manual
Manual · EN · 3 MB
- Download
Programmierhandbuch OPT Digital Light Source Controller V1.2.2
Manual · EN · 1 MB
- Download
Communication protocol OPT Digitalcontroller V3.4
Manual · EN · 148 KB
Accessories
Beleuchtungskabel(18)
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX3M-6P-S-6A, 3 m
ZQ GX16M-6A · 3 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX5M-6P-S-6A, 5 m
ZQ GX16M-6A · 5 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX10M-6P-S-6A, 10 m
ZQ GX16M-6A · 10 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX20M-6P-S-6A, 20 m
ZQ GX16M-6A · 20 m
OPT
Verlängerungskabel 6-polig, 20 A OPT-EX3M-6P-S-20A, 3 m
WS20J6TQ · 3 m
OPT
Verlängerungskabel 6-polig, 20 A OPT-EX5M-6P-S-20A, 5 m
WS20J6TQ · 5 m
OPT
Verlängerungskabel 6-polig, 20 A OPT-EX10M-6P-S-20A, 10 m
WS20J6TQ · 10 m
OPT
Verlängerungskabel 6-polig, 20 A OPT-EX20M-6P-S-20A, 20 m
WS20J6TQ · 20 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX1M-6P-S-6A, 1 m
ZQ GX16M-6A · 1 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX2M-6P-S-6A, 2 m
ZQ GX16M-6A · 2 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX3M-6P-S-6A, 3 m
ZQ GX16M-6A · 3 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX5M-6P-S-6A, 5 m
ZQ GX16M-6A · 5 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX10M-6P-S-6A, 10 m
ZQ GX16M-6A · 10 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX1M-6P-S-20A, 1 m
WS20J6TQ · 1 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX2M-6P-S-20A, 2 m
WS20J6TQ · 2 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX3M-6P-S-20A, 3 m
WS20J6TQ · 3 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX5M-6P-S-20A, 5 m
WS20J6TQ · 5 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX10M-6P-S-20A, 10 m
WS20J6TQ · 10 m
Description
The DPA6024EB series is OPT's digital high-power current controller for 24 V lights with 6-pin connector: 144 W per channel (up to 6 A), continuous light and strobe, response time ≤ 5 µs at up to 40 kHz, DO output and up to 64 programmable sequences. The series ranges from the compact 2-channel unit to the 16-channel desktop unit with 1450 W total power.
OPT-DPA6024EB-2: 2 channels, 144 W per channel, total 288 W. Dimensions V1: 91 × 132.5 × 170 mm; V3: 147 × 347.1 × 144.5 mm; weight V1: 1.3 kg; V3: 2.7 kg. Light connector: 6-pin round connector: 1 Light+, 2 Light−, 3 Fan+, 4 Fan−, 5 Res (marking resistor for automatic current detection), 6 Res. The OPT catalog 2026/2027 lists two hardware revisions for this model: V1 in the compact upright housing (91 × 132.5 × 170 mm, response time ≤ 10 µs) and V3 in the desktop housing (147 × 347.1 × 144.5 mm, with DO output, response time ≤ 300 µs). The technical data state both values; which revision is delivered we clarify with OPT at the time of inquiry. In the download area you will find the OPT data sheet of the series, the manual, the dimensional drawing (PDF), demo software, SDK and programming manual and communication protocol. We are glad to advise you on matching controller, light and cable - just ask for price and delivery time.
