Light controller OPT-DPA6024EC-2
Manufacturer part number: OPT-DPA6024EC-2
- Control
- digital
- Output type
- Constant current
- Channels
- 2
- Output power
- 144 W per channel · 288 W total
- Light voltage
- 5 up to 24 V
- Operating mode
- Dauerlicht / Strobe
- Communication
- RS232, Ethernet (100 Mbit)
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-DPA6024EC-2 |
|---|---|
| Controller type | digital |
| Output type | Constant current |
| Channels | 2 |
| Compatible Light | 5–24 V |
| Input voltage | 22–26 V DC |
| Input current | 16.5 A |
| Lighting mode | Dauerlicht / Strobe |
| Auto sensing of light rated current | für 5–24-V-LED-Leuchten mit 200 mA bis 6 A |
| Manual setting for max. output current | 256 mA up to 6 A |
| Intensity control | Helligkeit in 256 Stufen adjustable |
| Short-circuit protection | At einem Kurzschluss an einem Controllerausgang spricht der Kurzschlussschutz des betreffenden Kanals an; der Kanal wird abgeschaltet and das Display zeigt „Er2“. |
| Overcurrent protection | Überschreitet der Ausgangsstrom eines Kanals den eingestellten Wert, spricht der Überstromschutz dieses Kanals an; der Kanal wird abgeschaltet und das Display zeigt „Er1“. |
| Overload protection | Übersteigt die Ausgangsleistung eines Kanals 160 W, spricht der Überlastschutz an; der Kanal wird abgeschaltet und das Display zeigt „Er6“. |
| Normal trigger | Helligkeit in 256 Stufen adjustable |
| Normal trigger time unit | 1 µs / 10 µs / 1 ms / 100 ms |
| Normal trigger pulse width | 1 µs up to 30 s |
| High intensity trigger | Boost-Strom adjustable, maximum 20 A |
| Highlight trigger pulse width time unit | 1 µs / 10 µs / 1 ms |
| Highlight trigger pulse width | 1 µs up to 999 ms |
| Programmable trigger | bis zu 64 Abläufe, jeweils mit Helligkeit, Pulsbreite und Triggerquelle |
| Response time | ≤ 10 µs |
| Response frequency | ≤ 40 kHz |
| The unit for setting trigger delay time | 1 µs / 10 µs / 1 ms |
| Set trigger delay | 1 µs up to 6500 ms |
| Output power | 144 W je Kanal, gesamt 288 W |
| Communication | RS232, Ethernet (100 Mbit) |
| Standby power consumption | 1 W |
| Hi-Pot test | – |
| Insulation | – |
| Operating temperature | Operation -5 °C up to 50 °C |
| Dimensions(mm³)(L × W × H) | 91 × 132 × 170 mm |
| Weight (kg) | 0.86 kg |
| Accessory type | Lichtcontroller |
| series | High Power Digital Current Controller |
| light_connector | 6-poliger Rundsteckverbinder: 1 Light+, 2 Light−, 3 Fan+, 4 Fan−, 5 Res, 6 Res |
| Response frequency | ≤ 40 kHz |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

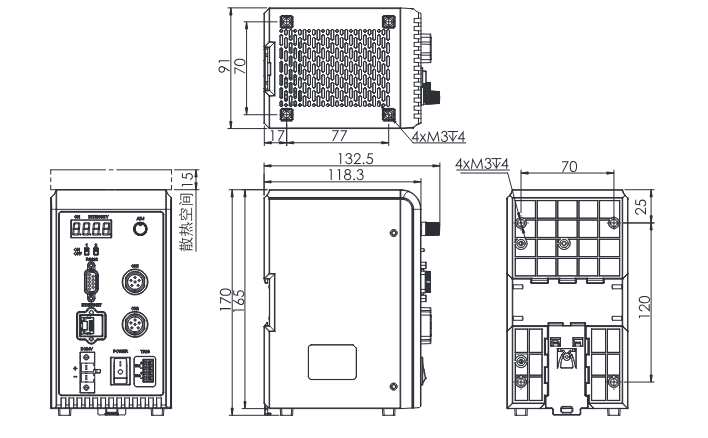

Dimensional drawing
