Light controller OPT-AP1024F-3

Manufacturer part number: OPT-AP1024F-3

Control
analog
Output type
Constant voltage
Channels
3
Output power
24 W per channel · ≤ 40 W total
Light voltage
24 V (output 14.0 up to 24.0 V (±0.2 V))
Operating mode
Dauerlicht / Strobe

Price and availability on request

Request this item directly by email

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part numberOPT-AP1024F-3
Controller typeanalog
Output typeConstant voltage
Channels3
Compatible Light24 V
Input voltage100-240 V AC, 50/60 Hz
Input current1.8 A at 115 V AC / 1 A at 230 V AC
Output voltage14.0 up to 24.0 V (±0.2 V), stufenlos adjustable
Lighting modeDauerlicht / Strobe
Intensity controlstufenlos am Drehsteller
TriggeringSchalttrigger
Response time≥ 80 µs
Response frequency≤ 1 kHz
ON/OFF mode conversionja, über den Betriebsartenschalter (TS)
Output power24 W je Kanal, gesamt ≤ 40 W
Standby power consumption< 1.2 W (gemessen at 220 V AC)
Hi-Pot testAC 1500 V für 1 Minute, Ableitstrom < 10 mA
InsulationDC 500 V, Isolationswiderstand > 20 MΩ
Operating temperatureOperation -5 °C up to 50 °C
Dimensions (mm³)(L × W × H)73.5 × 129.2 × 166 mm
Weight (kg)0.66 kg
Max. output current (Selection Guide)1 A per channel
Accessory typeLichtcontroller
seriesAP Analog Voltage Controller
Response frequency≤ 1 kHz

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

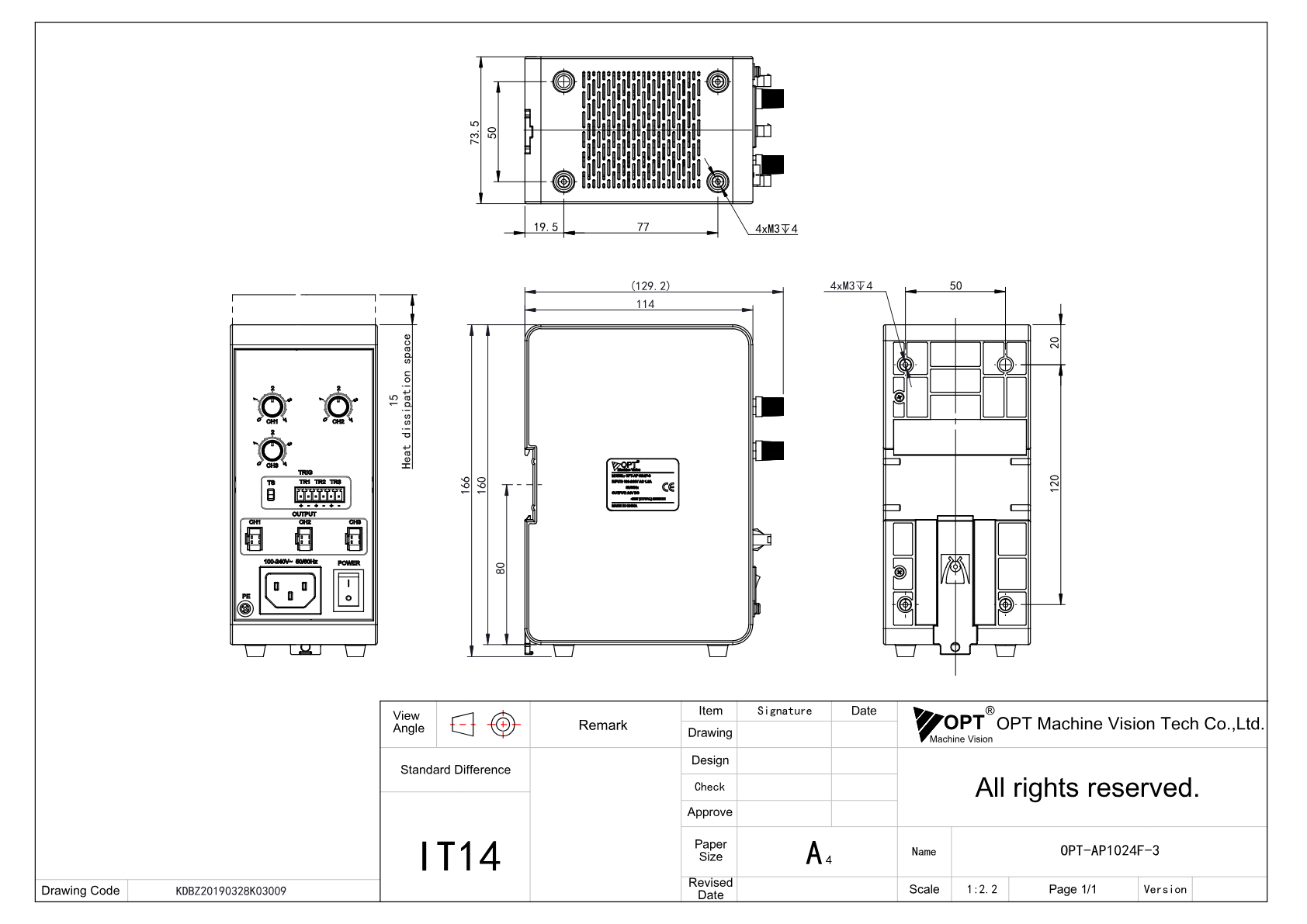

Dimensional drawing

OPT-AP1024F-3 Maßzeichnung

Documents

  • Datasheet AP Analog Voltage Controller (OPT)

    Datasheet · EN · 2332 KB

    Download datasheet

  • Maßzeichnung OPT-AP1024F-3 (OPT-AP1024F-3, PDF)

    Technical drawing · EN · 397 KB

    Download

  • Manual OPT-AP1024F User Manual

    Manual · EN · 433 KB

    Download

Description

The AP1024F series is OPT's simple analog voltage controller for 24 V LED lights up to 1 A per channel: the output voltage is set continuously per channel from 14 to 24 V at the rotary knob, a switching trigger per channel allows flash mode, there is no communication interface. Available with 1 to 4 channels in the same housing.

OPT-AP1024F-3: 3 channels, 24 W per channel, total ≤ 40 W. dimensions 73.5 × 129.2 × 166 mm; weight 0.66 kg. In the download area you will find the OPT data sheet of the series, the manual and the dimensional drawing (PDF). We are glad to advise you on matching controller, light and cable - just ask for price and delivery time.
