OPT
Light controller OPT-APA0805F-3
Manufacturer part number: OPT-APA0805F-3
- Control
- analog
- Output type
- Constant current
- Channels
- 3
- Output power
- 4 W per channel · 12 W total
- Light voltage
- 5 V
- Operating mode
- Dauerlicht / Strobe
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-APA0805F-3 |
|---|---|
| Controller type | analog |
| Output type | Constant current |
| Channels | 3 |
| Compatible Light | 5 V |
| Input voltage | 100-240 V AC, 50/60 Hz |
| Input current | 1.8 A at 115 V AC / 1 A at 230 V AC |
| Output current | 0 up to 0.8 A, stufenlos adjustable |
| Lighting mode | Dauerlicht / Strobe |
| Intensity control | stufenlos am Drehsteller |
| External trigger input | Blitz synchron zum Eingangssignal |
| Triggering | Schalttrigger |
| Response time | ≤ 200 µs |
| Response frequency | ≤ 1 kHz |
| ON/OFF mode conversion | ja, über den TS-Schalter |
| Output power | 4 W je Kanal |
| Standby power consumption | < 4 W (gemessen at 220 V AC) |
| Hi-Pot test | AC 1500 V für 1 Minute, Ableitstrom < 10 mA |
| Insulation | DC 500 V, Isolationswiderstand > 20 MΩ |
| Operating temperature | Operation -5 °C up to 50 °C |
| Dimensions (mm³)(L × W × H) | 73.5 × 129.2 × 166 mm |
| Weight (kg) | 0.7 kg |
| Total Power (Selection Table) | 12 W |
| Accessory type | Lichtcontroller |
| series | Analog Current Controller for Spot Lights |
| Response frequency | ≤ 1 kHz |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

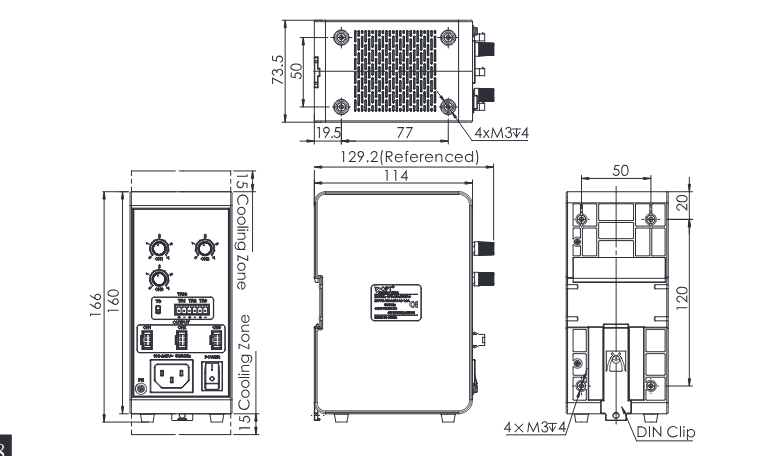

Dimensional drawing
Description
The APA0805F series is OPT's analog current controller for 5 V spot lights: 0 to 0.8 A per channel, set continuously at the rotary knob, 4 W per channel, switching trigger for continuous light or flash mode, without communication interface. Available with 1 to 4 channels in the same housing.
OPT-APA0805F-3: 3 channels, 4 W per channel, total 12 W. dimensions 73.5 × 129.2 × 166 mm; weight 0.7 kg. We are glad to advise you on matching controller, light and cable - just ask for price and delivery time.
