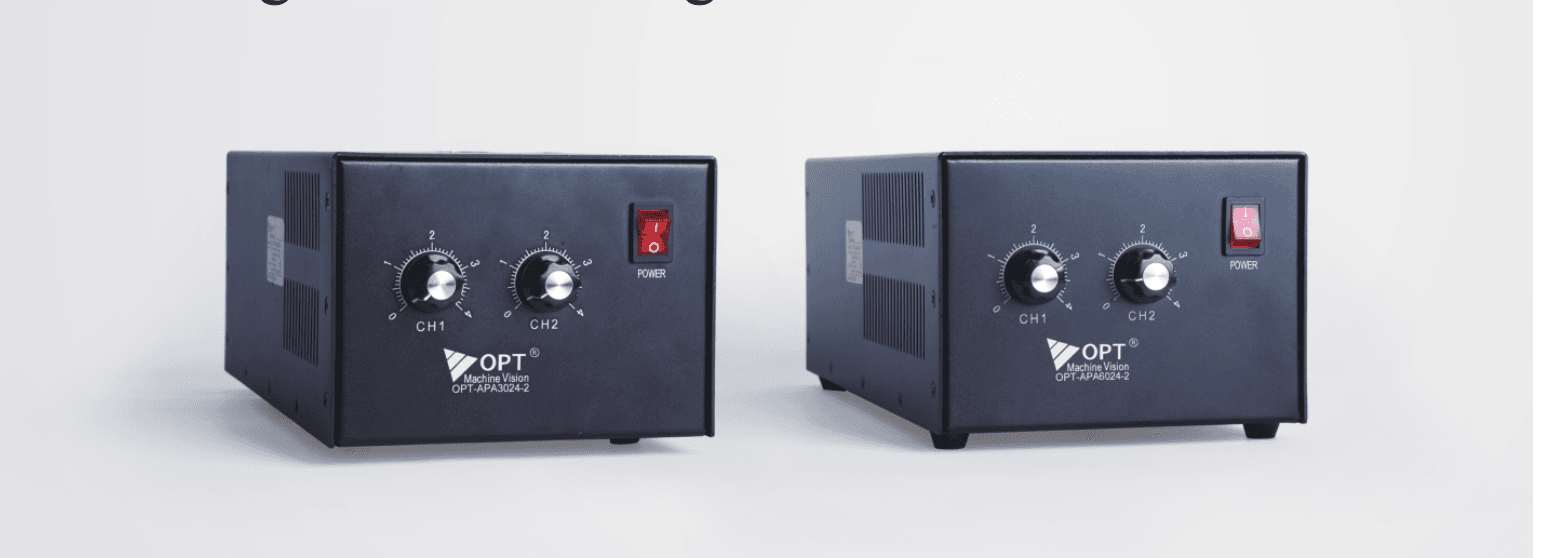

OPT-APA6024-2 – Tischgehäuse mit zwei Drehstellern und Netzschalter (zwei Ansichten)

OPT

Light controller OPT-APA6024-2

Manufacturer part number: OPT-APA6024-2

Control: analog
Output type: Constant current
Channels: 2
Output power: 144 W per channel · ≤ 288 W total
Light voltage: 24 V
Operating mode: Dauerlicht / Strobe

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	OPT-APA6024-2
Controller type	analog
Output type	Constant current
Channels	2
Compatible Light	24 V
Input voltage	100-120 V AC oder 200-240 V AC, 50/60 Hz – Umschaltung über den internen Schalter, Werkseinstellung 200–240 V AC
Input current	6.8 A at 115 V AC / 3.4 A at 230 V AC
Lighting mode	Dauerlicht / Strobe
Auto sensing of light rated current	für Leuchten mit 800 mA bis 6 A
Intensity control	stufenlos am Drehsteller
Triggering	Schalttrigger
Response time	≥ 200 µs
Response frequency	≤ 1 kHz
Channels	2 Kanäle
Output power	144 W je Kanal, gesamt ≤ 288 W
Hi-Pot test	AC 1500 V für 1 Minute, Ableitstrom < 10 mA
Insulation	DC 500 V, Isolationswiderstand > 20 MΩ
Operating temperature	Operation -5 °C up to 50 °C
Standby power consumption	≤ 4.7 W
Dimensions (mm³)(L × W × H)	136 × 305.8 × 104.5 mm
Weight (kg)	1.9 kg
Max. output current (Selection Guide)	6 A per channel
Accessory type	Lichtcontroller
series	APA High Power Analog Current Controller
light_connector	6-poliger Rundsteckverbinder: 1 Light+, 2 Light−, 3 Fan+, 4 Fan−, 5 Res, 6 Res
Response frequency	≤ 1 kHz

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

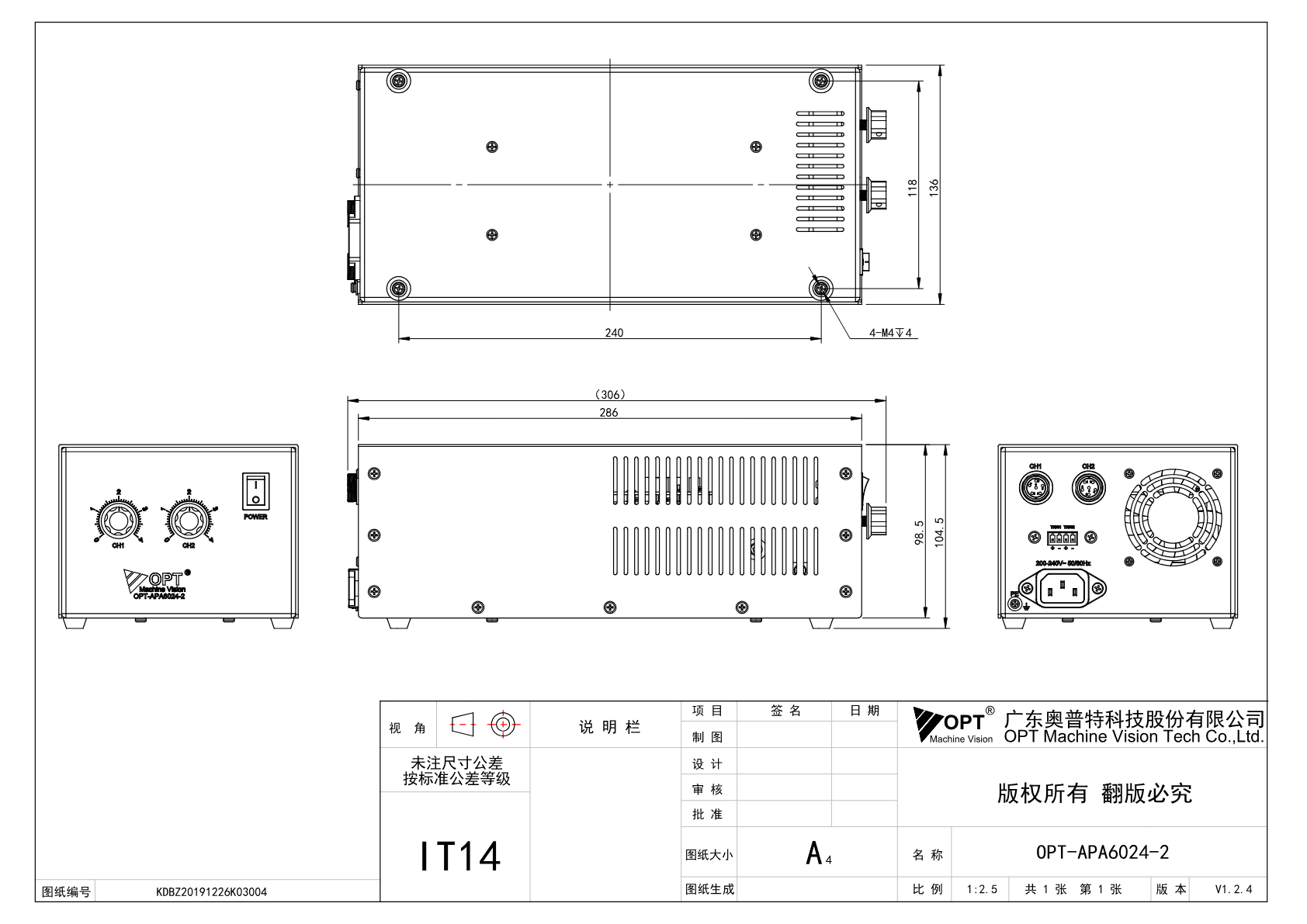

Dimensional drawing
