CBA10065 C-Mount lens
Manufacturer part number: CBA10065
Series: CBA-Festvergrößerung
- Makro-Typ
- Fester Abbildungsmaßstab
- Abbildungsmaßstab
- 0.15 × / 0.3 × / 0.5 ×
- Objektfeld
- Ø121.3 / Ø60.7 / Ø36.4 mm
- Arbeitsabstand
- 309 / 441 / 773 mm
- Empfohlene Pixelgröße
- 3.45 µm
- Verzeichnung
- < 0.25 %
- Mount
- C-Mount
- Aperture
- F6.5 - F75
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | CBA10065 |
|---|---|
| Lens Type | Feste Vergrößerung, Fixfokus |
| Focal Length (mm) | 100 mm |
| Magnification | 0.15 × | 0.30 × | 0.50 × |
| Working Distance (mm) | 773 mm | 441 mm | 309 mm |
| Field of View ∅ (mm) | Ø121.3 mm | Ø60.7 mm | Ø36.4 mm |
| O/I Distance (mm) | 891.2 mm | 573.9 mm | 461.8 mm |
| Flange Distance (mm) | 52.4 mm | 67.5 mm | 87.3 mm |
| Aperture Range | F6.5 - F75 |
| Distortion | <0.25 % | <0.12 % | <0.04 % |
| Sensor ∅ (mm) | Ø18.2 mm |
| Image Resolution (µm) | 3.45 µm |
| Adjustion Type | manuell |
| Mount | C-Mount (1-32UN-2A) |
| Filter Thread | M32.5 × 0.5-6H |
| Effective Front ∅(mm) | Ø26.8 mm |
| Diameter Back ∅(mm) | Ø18.8 mm |
| Size (mm) | Ø36.5 × 65.4 mm |
| Weight (kg) | 0.14 kg |
| Working Temperature | -20 °C up to +60 °C |
| Note | Zwischenringe and Fokussiertubus erforderlich (Herstellerhinweis) |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

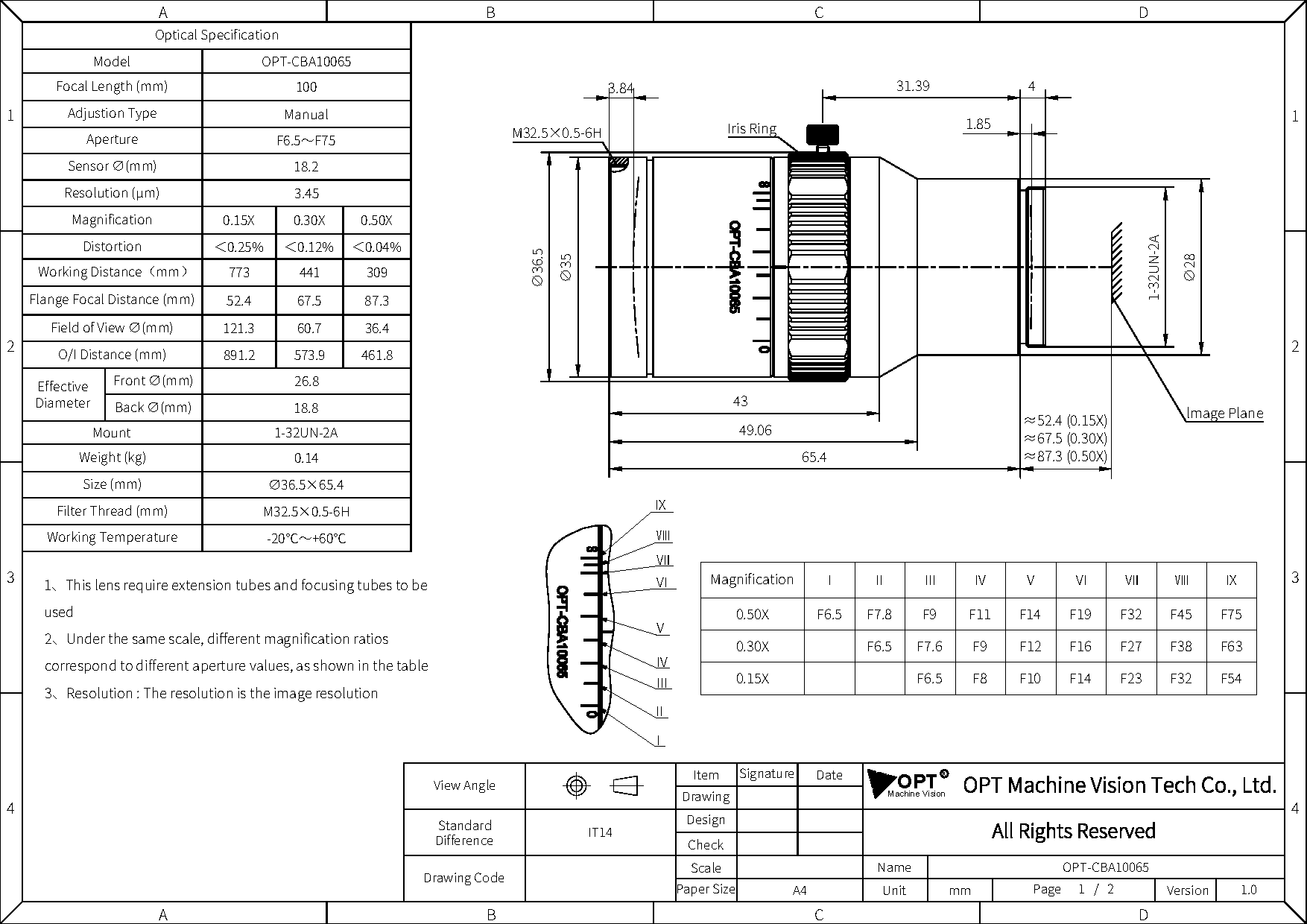

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-CBA10065 (PDF)
Datasheet · EN · 571 KB
- Download datasheet
CBA-Festvergrößerung - Seriendatenblatt OPT (PDF)
Datasheet · EN · 1420 KB
Description
CBA10065 is a fixed magnification lens from OPT's CBA series: focal length 100 mm, magnification 0.15×, 0.30× or 0.50× (with extension tubes and focusing tube), working distance 773, 441 or 309 mm, image circle Ø18.2 mm, aperture F6.5 - F75, C-mount.
The three magnifications are set with extension tubes and a focusing tube; each step has its own field of view (Ø121.3 mm, Ø60.7 mm, Ø36.4 mm), flange focal distance (52.4 mm, 67.5 mm, 87.3 mm) and object-to-image distance (891.2 mm, 573.9 mm, 461.8 mm). Distortion stays below 0.25 %, 0.12 %, 0.04 %. Once set up, the image scale is fixed, which keeps measurement results comparable from batch to batch. Housing Ø36.5 × 65.4 mm, 0.14 kg, filter thread M32.5 × 0.5-6H, operating temperature -20 °C to +60 °C.
According to the manufacturer, the series resolves 145 lp/mm across the full field and suits cameras with pixels from 3.45 µm and sensors up to Ø18.2 mm; relative illumination is above 90 %, so brightness stays even out to the edge of the image. The long working distance leaves room for lighting and part handling. Typical tasks: inspection of PCBs, motor welds and heat sinks, and spacing checks on hardware.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it.
