OPT-COB1240-LQL Fixed focal length lens with liquid lens
Manufacturer part number: OPT-COB1240-LQL
Series: Cobra-Flüssiglinsenobjektive
- Objektivbauart
- Entozentrisch, Flüssigfokus
- Focal length
- 12 mm
- Max. Sensorformat
- 1/1.8"
- Empfohlene Pixelgröße
- 3.45 µm
- Aperture
- F4.0
- Fokussierbarer Arbeitsabstand
- 100 mm – ∞
- Temperaturkompensation
- No
- Mount
- C-Mount
- Elektrischer Anschluss
- Hirose (6-pin)
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-COB1240-LQL |
|---|---|
| Focal Length(mm) | 12 mm |
| Back Focal Length(mm) | 13.24 mm |
| Aperture(F/#) | F4.0 |
| Image Circle Ø(mm) | Ø9 mm (1/1.8") |
| TV Distortion(%) | <0.13 % at Arbeitsabstand 300 mm |
| Max. Field Of View（H*V） | 41.11°×33.40° |
| Chief Ray Angle | <5° |
| Focal Power Range(20C° (dpt)) | -13 – +13 dpt |
| Wavefront Error * | <0.2λ/0.2λ |
| Image Resolution(µm) | 3.45 µm |
| Lens Type | Festbrennweite |
| Objektivbauart | Entocentric |
| Max. Sensorformat | 1/1.8" |
| Auflösung | 3.3 MP (von uns berechnet) |
| Fokussierbarer Arbeitsabstand | 100 mm – ∞ |
| Reaktionszeit | < 4 ms |
| Einstellzeit | Nicht angegeben |
| Fokus-Wiederholbarkeit | ±0.1 dpt |
| Temperaturkompensation | No |
| Spektralbereich | 435 – 656 nm |
| Flüssiglinsenmodell | EL-3-10-VIS-26D-FPC |
| Elektrischer Anschluss | Hirose (6-pin) |
| Anschluss | C-Mount |
| Filtergewinde | M27×0.5-6H |
| Telezentrie | Nicht zutreffend |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

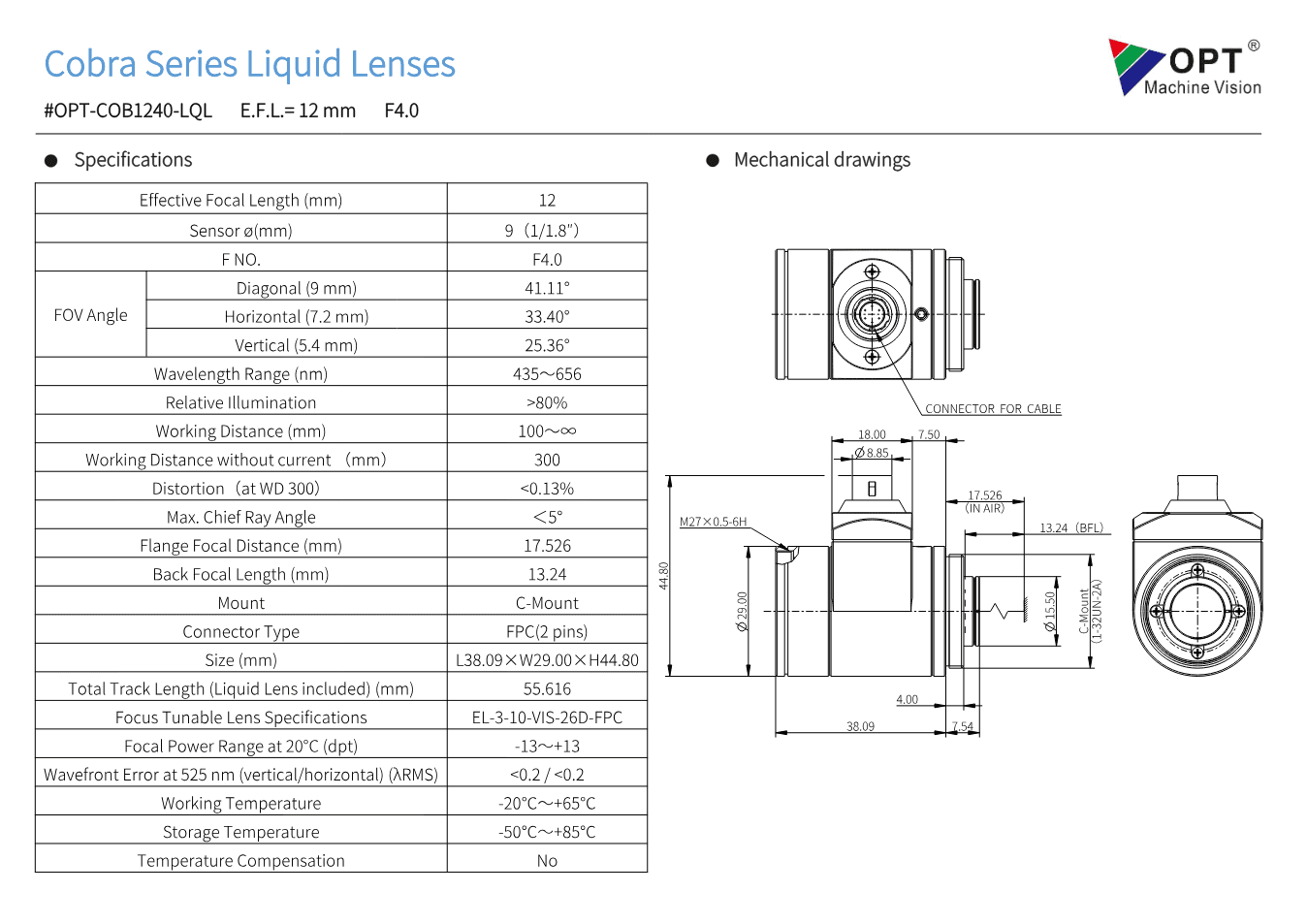

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-COB1240-LQL (PDF)
Datasheet · EN · 151 KB
- Download datasheet
Optische Daten (MTF) OPT-COB1240-LQL
Datasheet · EN · 987 KB
- Download datasheet
Cobra-Flüssiglinsenobjektive - Serienbroschüre OPT
Datasheet · EN · 6 MB
- Download
3D-Modell OPT-COB1240-LQL (STEP)
Technical drawing · EN · 3 MB
- Download
OPT LL-Controller Demo v1.0.1 (Windows)
Software / firmware · EN · 8 MB
- Download
Manual OPT-Flüssiglinsenobjektive (EN)
Manual · EN · 9 MB
- Download
Communication protocol Flüssiglinse V1.0 (EN)
Manual · EN · 96 KB
Description
The OPT-COB1240-LQL is listed in OPT's series “Cobra Liquid Lens” with focal length 12 mm, aperture F4.0, image circle Ø9 mm (1/1.8"). Further key data: working distance 100 mm - ∞.
The Cobra lenses with liquid lens focus electrically: the integrated liquid lens focuses in under 4 ms, repeatable to ±0.1 dpt, and the plug connector can be rotated by 360°. Up to 145 lp/mm for 3.45 µm pixels and sensors up to 2/3". They solve tasks with varying object heights without a mechanical autofocus: labels on boxes of different heights, bearings and shafts, holes on several levels.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing and the STEP model are included.
