OPT-HP05-110-LQLTC C-Mount lens
Manufacturer part number: OPT-HP05-110-LQLTC
Series: Hippo-Flüssiglinsen-Telezentrik
- Objektivbauart
- Telezentrisch, Flüssigfokus
- Abbildungsmaßstab
- 0.5 ×
- Max. Sensorformat
- 1.1"
- Sichtfeld
- Ø 36.8 mm
- Fokussierbarer Arbeitsabstand
- 105 – 112.8 mm
- Auflösungsvermögen
- 3.45 µm
- Einstellzeit
- 20 ms
- Telezentrie
- 0.10°
- Verzeichnung
- < 0.2 %
- Mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-HP05-110-LQLTC |
|---|---|
| Optical Configuration | Bitelezentrisch |
| Arbeitsabstand | 110 mm ± 2 mm (at 0 dpt) |
| Magnification（X） | 0.5 × |
| Image Circle Ø(mm) | Ø18.4 mm (1.1") |
| Aperture(F/#) | F6.5 – F44 |
| Telecentricity | 0.10° |
| NA | 0.03846 – 0.00569 |
| Verzeichnung | < 0.2 % |
| Depth Of Field(mm) | 2.15 mm |
| Image Resolution(µm) | 3.45 µm |
| MTF30(lp/mm) | 145 lp/mm |
| Field Of View∅(mm) | 36.80 mm |
| Mount | C-Mount |
| Size(mm) | Ø60 × 157.95 |
| Weight(kg) | 0.60 kg |
| Filter Thread | M56×0.75-6H |
| Object To Image Distance without current(mm) | 285.5 mm |
| Focus Tunable Lens | EL-12-30-TC-VIS |
| Focal power at 0 mA (25°C, typical) (dpt) | -1 – +2 dpt |
| Focal power range (25°C, ±250 mA) (dpt) | -6 – +10 dpt |
| Wavefront error at 532 nm (vertical/horizontal) (λRMS) | 0.15 / 0.23 |
| Working Temperature | -0 °C – +65 °C |
| Storage Temperature | -40 °C – +85 °C |
| Temperature Compensation | Yes |
| Wavelength Range(nm) | 400 – 1000 nm |
| Focal Power Range(20C° (dpt)) | -6 – +10 dpt |
| Objektivbauart | Telecentric |
| Max. Sensorformat | 1.1" |
| Reaktionszeit | 3 ms |
| Einstellzeit | 20 ms |
| Fokus-Wiederholbarkeit | Nicht angegeben |
| Flüssiglinsenmodell | EL-12-30-TC-VIS |
| Elektrischer Anschluss | Hirose HR10G-7R-6SB(73) |
| Fokussierbarer Arbeitsabstand (scharf abbildend) | 105 – 112.8 mm |
| Fokusbereich (gesamt) | 35 – 163 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

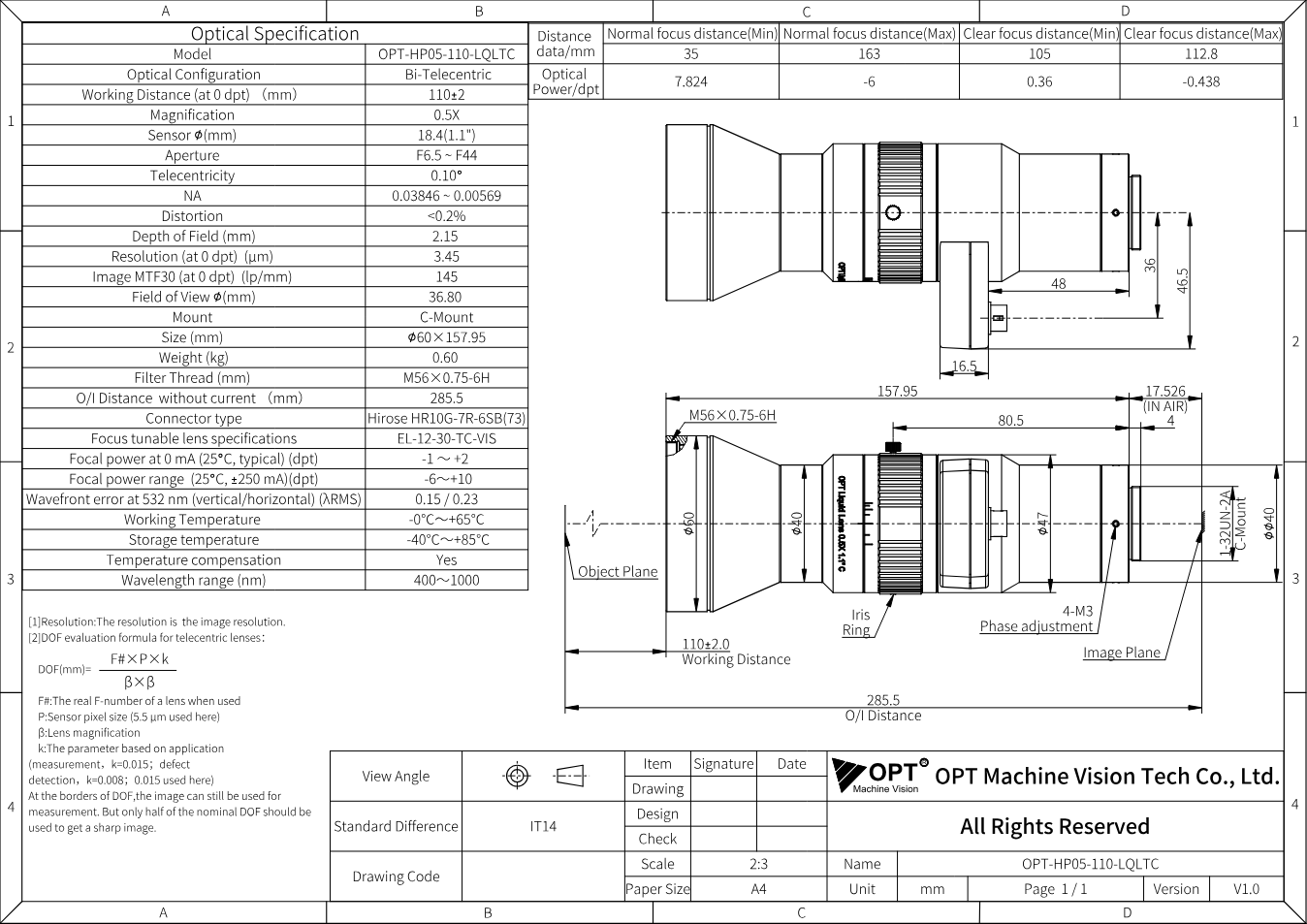

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-HP05-110-LQLTC (PDF)
Datasheet · EN · 231 KB
- Download datasheet
Hippo-Flüssiglinsen-Telezentrik - Serienbroschüre OPT
Datasheet · EN · 2125 KB
- Download
Optotune Cockpit 1.0.8559 (Windows)
Software / firmware · EN · 89709 KB
- Download
Optotune Cockpit - Handbuch (EN)
Manual · EN · 922 KB
- Download
Optotune ECC-1C Controller - Datenblatt (EN)
Manual · EN · 1373 KB
- Download
Optotune EL-12-30-TC Flüssiglinse - Datenblatt (EN)
Manual · EN · 548 KB
Description
The OPT-HP05-110-LQLTC is listed in OPT's series “Hippo Liquid Lens Telecentric” with magnification 0.5 ×, aperture F6.5 - F44, image circle Ø18.4 mm (1.1"). Also: working distance 110 mm ± 2 mm, C-Mount, telecentricity 0.10°, spectral range 400 - 1000 nm.
The Hippo liquid lens telecentric lens focuses in 3 ms and is stable after 10 ms - with a repeatability of 0.01 dpt. The integrated controller also measures the temperature and compensates for it immediately. Up to 145 lp/mm for sensors up to 1.1". It measures telecentrically at several heights without the need for an adjustment stage: stepped components, printed circuit boards with mounted parts, stamped and injection-molded parts.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing is included.
