HIKROBOT

Area scan camera MV-CU050-90UC

Manufacturer part number: MV-CU050-90UC

Resolution: 5.6 MP
Pixels: 2600 × 2160
Max. frame rate: 59.8 fps
Color / mono: Color
Shutter type: Global Shutter
Sensor format: 1/2"
Pixel size: 2.5 µm × 2.5 µm
Interface: USB 3.0
Lens mount: C-Mount

The manufacturer has announced end of life (EoL preparation) for this product. It is still regularly orderable; we will inform you in good time once a successor has been confirmed.

End of life announced - still orderable

Quantity

No obligation · we usually reply within 24 hours on business days

Request this item directly by email

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	MV-CU050-90UC
Type	5MP Area Scan Camera, USB3, GMAX2505, Color
Sensor type	CMOS, global shutter
Sensor model	GMAX2505
Pixel size	2.5 µm × 2.5 µm
Sensor size	1/2"
Resolution	2600 × 2160
Max. frame rate	59.8 fps @2600 × 2160 Bayer BG 8
Dynamic range	63.9 dB
SNR	37 dB
Gain	0 dB to 12 dB
Exposure time	3 µs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Color
Pixel format	Bayer BG 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Data interface	USB3.0, compatible with USB2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
Power supply	9 VDC to 24 VDC, supports USB3.0 power supply
Power consumption	Typ. 2.2 W@5 VDC (USB3.0 provides power supply)
Lens mount	C-mount
Dimension	29 mm × 29 mm × 35.6 mm (1.1" × 1.1" × 1.4")
Weight	Approx. 94 g (0.2 lb.)
Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity	20 % to 80 % RH, non-condensing
Client software	MVS or third-party software meeting with USB3 Vision Protocol
Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Compatibility	USB3 Vision, GenlCam
Certification	CE, RoHS, KC
Input voltage	9 VDC to 24 VDC, supports USB3.0 power supply

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

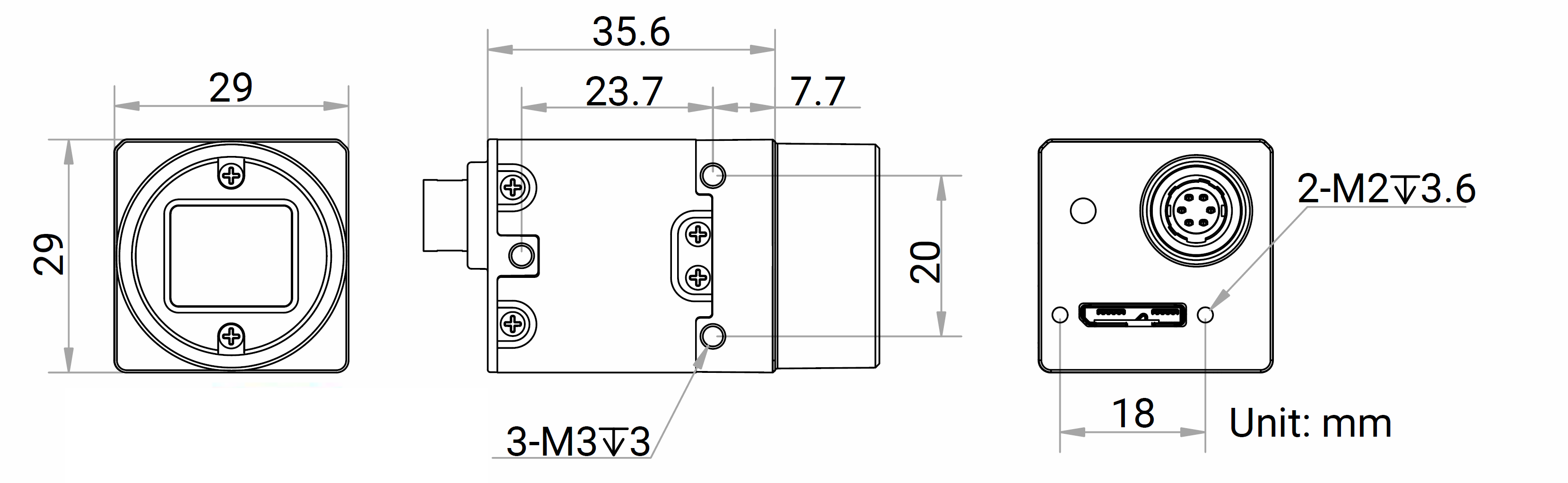

Dimensional drawing

Documents

Datasheet Hikrobot Flächenkamera MV-CU050-90UC
Datasheet · EN · 1 MB
Download datasheet
Technical drawing Hikrobot Flächenkamera MV-CU050-90UC
Technical drawing · EN · 5 MB
Download

Software and SDK (12)

MVS V5.1.0 (Windows)
Software / firmware · EN · 738 MB
Download
MVS V5.1.0 (Linux) (aarch64)
Software / firmware · EN · 296 MB
Download
MVS V5.1.0 (Linux) (x86)
Software / firmware · EN · 268 MB
Download
MVS V5.1.0 (Linux) (x86_64)
Software / firmware · EN · 368 MB
Download
MVS V5.0.0 (MacOS)
Software / firmware · EN · 86 MB
Download
Industrial Camera SDK V4.8.1 Runtime Package (Windows)
Software / firmware · EN · 75 MB
Download
Industrial Camera SDK V4.8.1 Runtime Package (Linux)
Software / firmware · EN · 146 MB
Download
MVS V5.0.2 (Windows)
Software / firmware · EN · 456 MB
Download
MVS V5.0.2 (Linux)
Software / firmware · EN · 778 MB
Download
VisionMaster V4.4.0 Sample File
Software / firmware · EN · 956 MB
Download
VisionMaster V4.4.0 Basic Package
Software / firmware · EN · 1775 MB
Download
VisionMaster V4.4.0 DL Package (Supplemental) (2,7 GB)
Software / firmware · EN
Download

Manual Hikrobot Flächenkamera MV-CU050-90UC
Manual · EN · 4 MB
Download

More HIKROBOT products in this category

Description

Key Feature

- Adopts brand new design to reduce power consumption.

- Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.

- Supports customized ROI, horizontal and vertical reverse image output.

- Adopts compact design for flexible installation.

- Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
