HIKROBOT
Area scan camera MV-CU013-A0UC
Manufacturer part number: MV-CU013-A0UC · 306301766
- Resolution
- 1.3 MP
- Pixels
- 1280 × 1024
- Max. frame rate
- 201.4 fps
- Color / mono
- Color
- Shutter type
- Global Shutter
- Sensor format
- 1/2"
- Pixel size
- 4.8 µm × 4.8 µm
- Interface
- USB 3.0
- Lens mount
- C-Mount
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CU013-A0UC |
|---|---|
| Type | 1.3MP Area Scan Camera, USB3, Color |
| Sensor type | CMOS, global shutter |
| Pixel size | 4.8 µm × 4.8 µm |
| Sensor size | 1/2" |
| Resolution | 1280 × 1024 |
| Max. frame rate | 201.4 fps@1280 × 1024 Bayer GB 8 |
| Dynamic range | 53 dB |
| SNR | 40 dB |
| Gain | 0 dB to 16 dB |
| Exposure time | 5 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Bayer GB 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2) |
| Power supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Power consumption | Typ. 1.81 W@5 VDC (USB3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 76 g (0.2 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20 % to 95 % RH, non-condensing |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

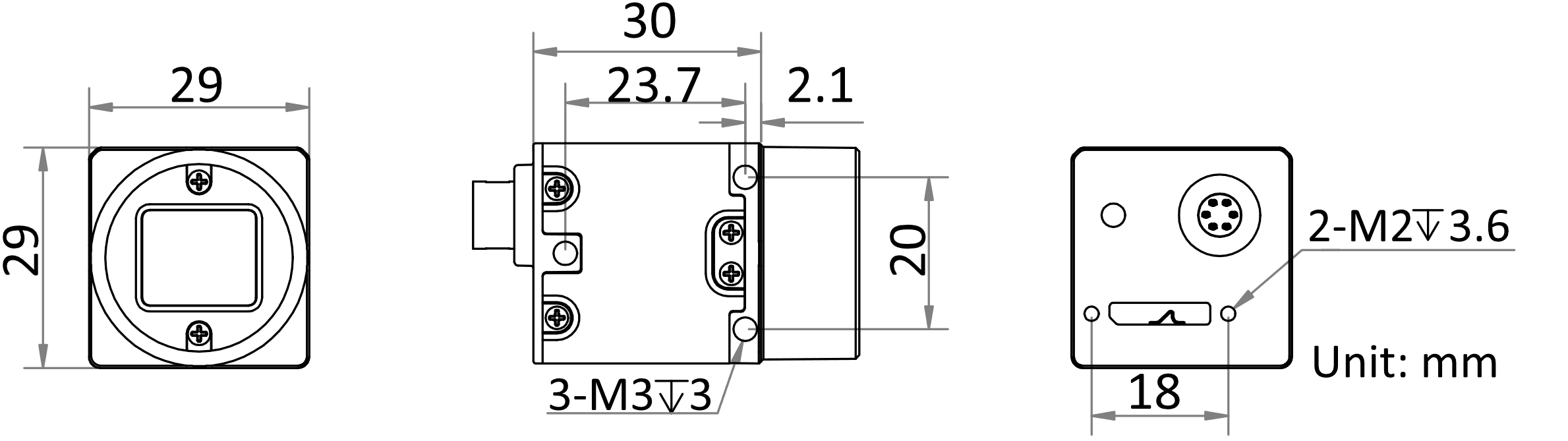

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Flächenkamera MV-CU013-A0UC
Datasheet · EN · 481 KB
- Download
Technical drawing HikRobot Flächenkamera MV-CU013-A0UC
Technical drawing · EN · 2 MB
Software and SDK (13)
- Download
Software / Firmware V4.0.3 HikRobot Flächenkamera MV-CU013-A0UC
Software / firmware · EN · 758 KB
- Download
MVS V5.1.0 (Windows)
Software / firmware · EN · 738 MB
- Download
MVS V5.1.0 (Linux) (aarch64)
Software / firmware · EN · 296 MB
- Download
MVS V5.1.0 (Linux) (x86)
Software / firmware · EN · 268 MB
- Download
MVS V5.1.0 (Linux) (x86_64)
Software / firmware · EN · 368 MB
- Download
MVS V5.0.0 (MacOS)
Software / firmware · EN · 86 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Windows)
Software / firmware · EN · 75 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Linux)
Software / firmware · EN · 146 MB
- Download
MVS V5.0.2 (Windows)
Software / firmware · EN · 456 MB
- Download
MVS V5.0.2 (Linux)
Software / firmware · EN · 778 MB
- Download
VisionMaster V4.4.0 Sample File
Software / firmware · EN · 956 MB
- Download
VisionMaster V4.4.0 Basic Package
Software / firmware · EN · 1775 MB
- Download
VisionMaster V4.4.0 DL Package (Supplemental) (2,7 GB)
Software / firmware · EN
- Download
Manual HikRobot Flächenkamera MV-CU013-A0UC
Manual · EN · 4 MB
Accessories
Data cables(15)
HIKROBOT
Standard USB 3.0 data cable (Micro-B-USB-A), 1 m
Micro-B male (with screw) · 1 m
Data cable
HIKROBOT
Standard USB 3.0 data cable (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Data cable
HIKROBOT
Standard USB 3.0 data cable (Micro-B-USB-A), 0,5 m
Micro-B male (with screw) · 0.5 m
Data cable
HIKROBOT
USB 3.0 Flex cable (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Data cable
HIKROBOT
Standard USB 3.0 data cable (Micro-B-USB-A), 2 m
Micro-B male (with screw) · 2 m
Data cable
HIKROBOT
SuperFlex USB 3.0 data cable (Micro-B-USB-A), 15 m
Micro-B male (with screw) · 15 m
Data cable
HIKROBOT
SuperFlex USB 3.0 data cable (Micro-B-USB-A), 5 m
Micro-B male (with screw) · 5 m
Data cable
HIKROBOT
SuperFlex USB 3.0 data cable (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Data cable
HIKROBOT
SuperFlex USB 3.0 data cable (Micro-B-USB-A), 20 m
Micro-B male (with screw) · 20 m
Data cable
HIKROBOT
SuperFlex USB 3.0 data cable (Micro-B-USB-A), 7 m
Micro-B male (with screw) · 7 m
Data cable
HIKROBOT
SuperFlex USB 3.0 data cable (Micro-B-USB-A), 10 m
Micro-B male (with screw) · 10 m
Data cable
HIKROBOT
Standard USB 3.0 data cable (Micro-B angled-USB-A), 3 m
Micro-B male (with screw) ,Angle (down) · 3 m
Data cable
HIKROBOT
Standard USB 3.0 data cable (Micro-B angled-USB-A), 0,5 m
Micro-B male (with screw) ,Angle (down) · 0.5 m
Data cable
HIKROBOT
Standard USB 3.0 data cable (Micro-B angled-USB-A), 1 m
Micro-B male (with screw) ,Angle (down) · 1 m
Data cable
HIKROBOT
Standard USB 3.0 data cable (Micro-B angled-USB-A), 2 m
Micro-B male (with screw) ,Angle (down) · 2 m
Data cable
More HIKROBOT products in this category
- Area scan camera MV-CT2MU0050/G/NN/NN
- Area scan camera MV-CT2MU0089/G/NN/NN
- Area scan camera MV-CT2MU0120/G/16LC/WN
- Area scan camera MV-CT2MU0120/G/NN/NN
- Area scan camera MV-CU013-80UC
- Area scan camera MV-CU013-80UM
- Area scan camera MV-CU013-A0UM
- Area scan camera MV-CU013-A1UC
- Area scan camera MV-CU020-90UC
- Area scan camera MV-CU020-90UM
- Area scan camera MV-CU050-60UM
- Area scan camera MV-CU050-90UC
Description
Key Feature - Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc. - Supports customized ROI, horizontal and vertical reverse image output. - Adopts compact design for flexible installation. - Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
