Area scan camera MV-CU020-90UM
Manufacturer part number: MV-CU020-90UM · 306302648
- Resolution
- 2.5 MP
- Pixels
- 2048 × 1200
- Max. frame rate
- 150.2 fps
- Color / mono
- Mono
- Shutter type
- Global Shutter
- Sensor format
- 1/1.7"
- Pixel size
- 4 µm × 4 µm
- Interface
- USB 3.0
- Lens mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CU020-90UM |
|---|---|
| Type | 2MP Area Scan Camera, USB3, GMAX4002, Mono |
| Sensor type | CMOS, global shutter |
| Sensor model | GMAX4002 |
| Pixel size | 4 µm x 4 µm |
| Sensor size | 1/1.7" |
| Resolution | 2048 × 1200 |
| Max. frame rate | 150.2 fps @ 2048 × 1200 Mono 8 |
| Dynamic range | 66.9 dB |
| SNR | 40.8 dB |
| Gain | 0 dB to 11.1 dB |
| Exposure time | 4 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2) |
| Power supply | 9 VDC to 24 VDC, supports USB power supply |
| Power consumption | Typ. 1.9 W @ 5 VDC (USB3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.2 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10/11, 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

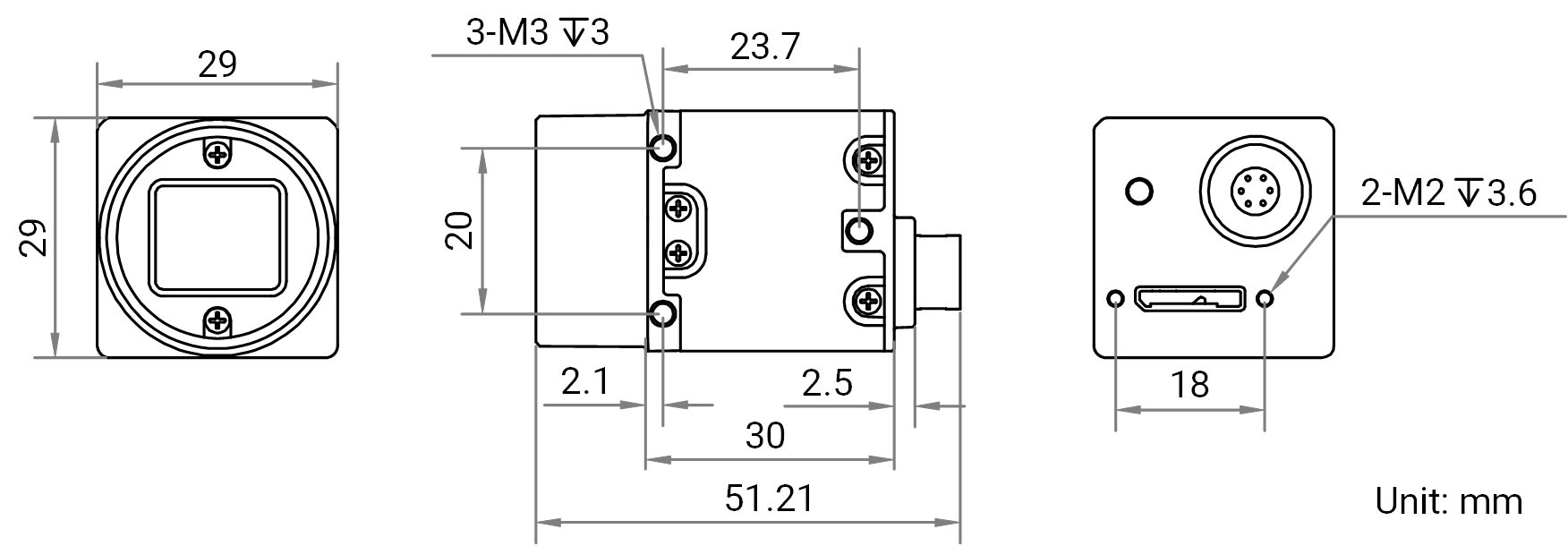

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Flächenkamera MV-CU020-90UM
Datasheet · EN · 524 KB
- Download
Technical drawing HikRobot Flächenkamera MV-CU020-90UM
Technical drawing · EN · 2 MB
Software and SDK (13)
- Download
Software / Firmware V2.1.11 HikRobot Flächenkamera MV-CU020-90UM
Software / firmware · EN · 775 KB
- Download
MVS V5.1.0 (Windows)
Software / firmware · EN · 738 MB
- Download
MVS V5.1.0 (Linux) (aarch64)
Software / firmware · EN · 296 MB
- Download
MVS V5.1.0 (Linux) (x86)
Software / firmware · EN · 268 MB
- Download
MVS V5.1.0 (Linux) (x86_64)
Software / firmware · EN · 368 MB
- Download
MVS V5.0.0 (MacOS)
Software / firmware · EN · 86 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Windows)
Software / firmware · EN · 75 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Linux)
Software / firmware · EN · 146 MB
- Download
VisionMaster V4.4.0 Sample File
Software / firmware · EN · 956 MB
- Download
VisionMaster V4.4.0 Basic Package
Software / firmware · EN · 1775 MB
- Download
VisionMaster V4.4.0 DL Package (Supplemental) (2,7 GB)
Software / firmware · EN
- Download
MVS V5.0.2 (Windows)
Software / firmware · EN · 456 MB
- Download
MVS V5.0.2 (Linux)
Software / firmware · EN · 778 MB
- Download
Manual HikRobot Flächenkamera MV-CU020-90UM
Manual · EN · 4 MB
Accessories
Data cables(15)
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B-USB-A), 1 m
Micro-B male (with screw) · 1 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B-USB-A), 0,5 m
Micro-B male (with screw) · 0.5 m
Datenkabel
HIKROBOT
USB 3.0 Flexkabel (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B-USB-A), 2 m
Micro-B male (with screw) · 2 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 15 m
Micro-B male (with screw) · 15 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 5 m
Micro-B male (with screw) · 5 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 20 m
Micro-B male (with screw) · 20 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 7 m
Micro-B male (with screw) · 7 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 10 m
Micro-B male (with screw) · 10 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B Winkel-USB-A), 3 m
Micro-B male (with screw) ,Angle (down) · 3 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B Winkel-USB-A), 0,5 m
Micro-B male (with screw) ,Angle (down) · 0.5 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B Winkel-USB-A), 1 m
Micro-B male (with screw) ,Angle (down) · 1 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B Winkel-USB-A), 2 m
Micro-B male (with screw) ,Angle (down) · 2 m
Datenkabel
Description
Key Feature - Adopts optimized hardware design and low-power design with stable performance. - Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, and Gamma correction, etc. - Supports customized ROI, horizontal and vertical reverse image output. - Adopts compact design for flexible installation. - Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
