Area scan camera MV-CU120-10UM
Manufacturer part number: MV-CU120-10UM · 306302028
- Resolution
- 12.2 MP
- Pixels
- 4024 × 3036
- Max. frame rate
- 29.2 fps
- Color / mono
- Mono
- Shutter type
- Rolling Shutter
- Sensor format
- 1/1.7"
- Pixel size
- 1.85 µm × 1.85 µm
- Interface
- USB 3.0
- Lens mount
- C-Mount
- Global reset
- Yes
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CU120-10UM |
|---|---|
| Type | 12MP Area Scan Camera, USB3, IMX226, Mono |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX226 |
| Pixel size | 1.85 µm × 1.85 µm |
| Sensor size | 1/1.7" |
| Resolution | 4024 × 3036 |
| Max. frame rate | 29.2 fps @4024 × 3036 Mono 8 |
| Dynamic range | 69.4 dB |
| SNR | 40.3 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 20 µs to 0.5 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Global Reset and Rolling |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Power consumption | Typ. 1.9 W@5 VDC (USB3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 76 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20 % to 80 % RH, non-condensing |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

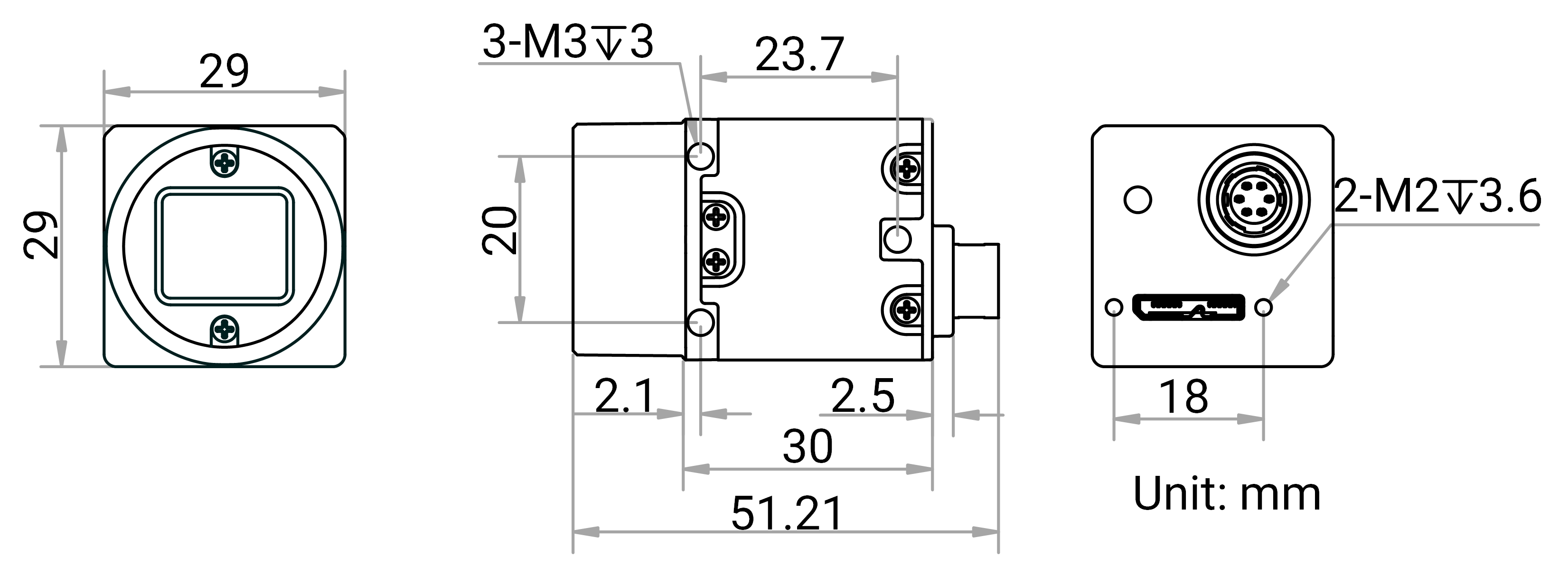

Dimensional drawing
