HIKROBOT
Area scan camera MV-CH250-60UC
Manufacturer part number: MV-CH250-60UC
- Resolution
- 25 MP
- Pixels
- 5120 × 5120
- Max. frame rate
- 14.8 fps
- Color / mono
- Color
- Shutter type
- Rolling Shutter
- Sensor format
- 12.6 mm × 12.6 mm
- Pixel size
- 2.5 µm × 2.5 µm
- Interface
- USB 3.0
- Lens mount
- C-Mount
- Global reset
- Yes
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH250-60UC |
|---|---|
| Type | 25MP Area Scan Camera, USB3, Color |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Stacked BSI |
| Pixel size | 2.5 µm × 2.5 µm |
| Sensor size | 12.6 mm × 12.6 mm |
| Resolution | 5120 × 5120 |
| Max. frame rate | 14.8 fps @ 5120 × 5120 Bayer BG 8 |
| Dynamic range | 69.3 dB |
| SNR | 39.9 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 58 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode, support Global Reset and Trigger Rolling. |
| Mono/color | Color |
| Pixel format | Mono 8/10/12, Bayer BG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_8_YUYV, RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB power supply |
| Power consumption | Typ. 5.5 W @ 5 VDC (USB3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3") |
| Weight | Approx. 103.8 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

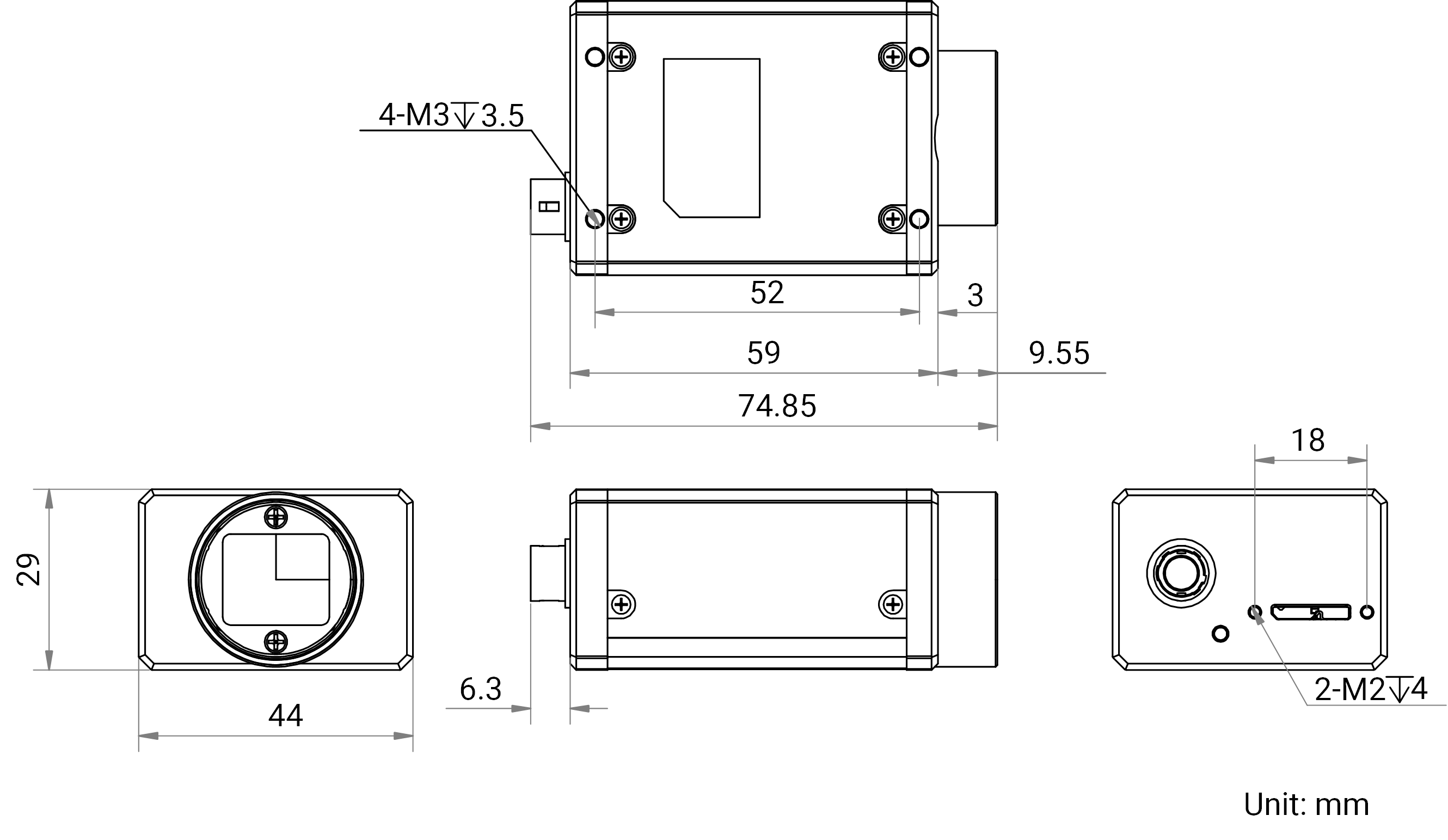

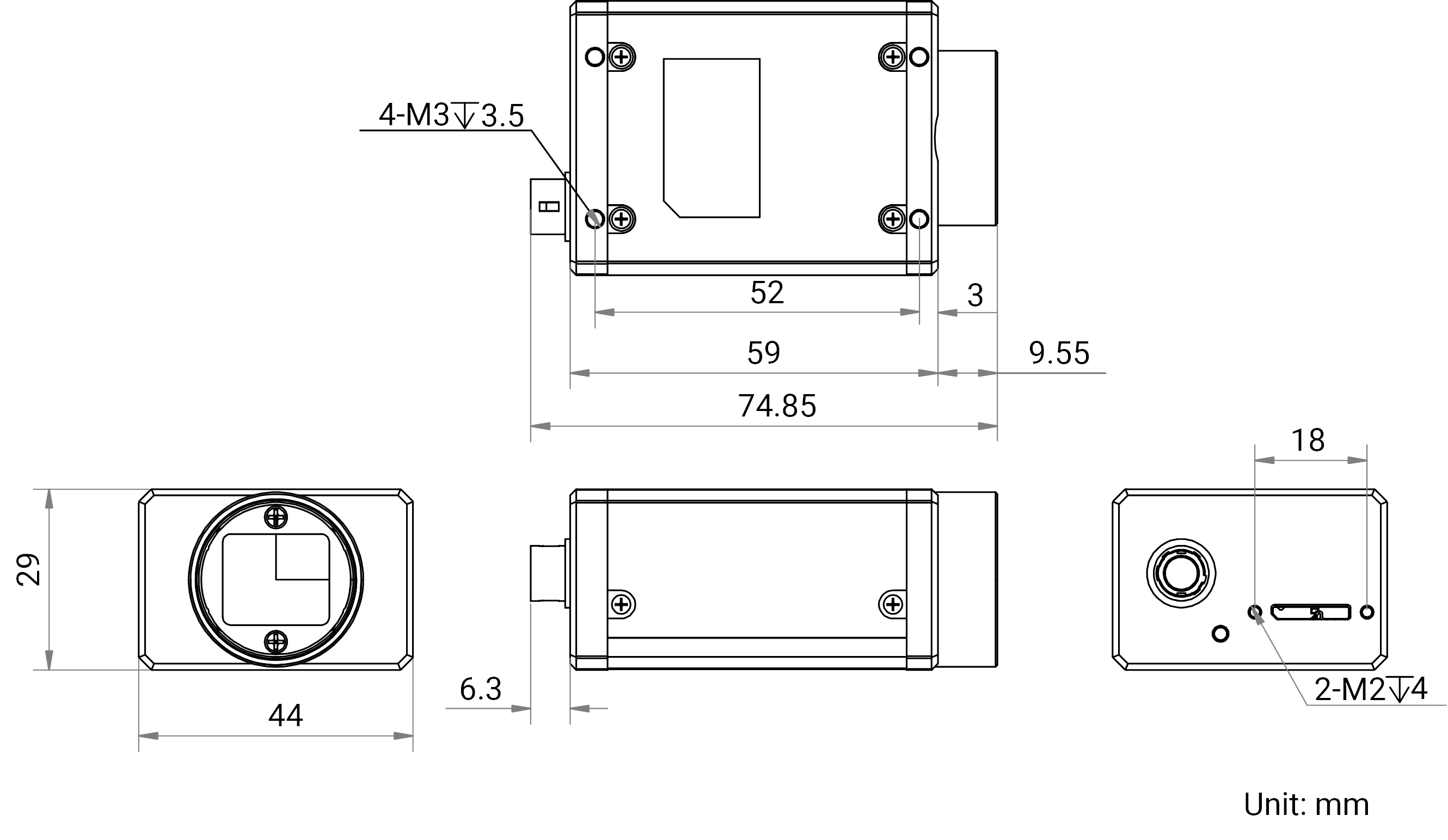

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Flächenkamera MV-CH250-60UC
Datasheet · EN · 501 KB
- Download
Technical drawing HikRobot Flächenkamera MV-CH250-60UC
Technical drawing · EN · 1 MB
Software and SDK (13)
- Download
Software / Firmware V2.2.8 HikRobot Flächenkamera MV-CH250-60UC
Software / firmware · EN · 3 MB
- Download
MVS V5.1.0 (Windows)
Software / firmware · EN · 738 MB
- Download
MVS V5.1.0 (Linux) (aarch64)
Software / firmware · EN · 296 MB
- Download
MVS V5.1.0 (Linux) (x86)
Software / firmware · EN · 268 MB
- Download
MVS V5.1.0 (Linux) (x86_64)
Software / firmware · EN · 368 MB
- Download
MVS V5.0.0 (MacOS)
Software / firmware · EN · 86 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Windows)
Software / firmware · EN · 75 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Linux)
Software / firmware · EN · 146 MB
- Download
MVS V5.0.2 (Windows)
Software / firmware · EN · 456 MB
- Download
MVS V5.0.2 (Linux)
Software / firmware · EN · 778 MB
- Download
VisionMaster V4.4.0 Sample File
Software / firmware · EN · 956 MB
- Download
VisionMaster V4.4.0 Basic Package
Software / firmware · EN · 1775 MB
- Download
VisionMaster V4.4.0 DL Package (Supplemental) (2,7 GB)
Software / firmware · EN
- Download
Manual HikRobot Flächenkamera MV-CH250-60UC
Manual · EN · 4 MB
Accessories
Data cables(15)
HIKROBOT
Standard USB 3.0 data cable (Micro-B-USB-A), 1 m
Micro-B male (with screw) · 1 m
Data cable
HIKROBOT
Standard USB 3.0 data cable (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Data cable
HIKROBOT
Standard USB 3.0 data cable (Micro-B-USB-A), 0,5 m
Micro-B male (with screw) · 0.5 m
Data cable
HIKROBOT
USB 3.0 Flex cable (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Data cable
HIKROBOT
Standard USB 3.0 data cable (Micro-B-USB-A), 2 m
Micro-B male (with screw) · 2 m
Data cable
HIKROBOT
SuperFlex USB 3.0 data cable (Micro-B-USB-A), 15 m
Micro-B male (with screw) · 15 m
Data cable
HIKROBOT
SuperFlex USB 3.0 data cable (Micro-B-USB-A), 5 m
Micro-B male (with screw) · 5 m
Data cable
HIKROBOT
SuperFlex USB 3.0 data cable (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Data cable
HIKROBOT
SuperFlex USB 3.0 data cable (Micro-B-USB-A), 20 m
Micro-B male (with screw) · 20 m
Data cable
HIKROBOT
SuperFlex USB 3.0 data cable (Micro-B-USB-A), 7 m
Micro-B male (with screw) · 7 m
Data cable
HIKROBOT
SuperFlex USB 3.0 data cable (Micro-B-USB-A), 10 m
Micro-B male (with screw) · 10 m
Data cable
HIKROBOT
Standard USB 3.0 data cable (Micro-B angled-USB-A), 3 m
Micro-B male (with screw) ,Angle (down) · 3 m
Data cable
HIKROBOT
Standard USB 3.0 data cable (Micro-B angled-USB-A), 0,5 m
Micro-B male (with screw) ,Angle (down) · 0.5 m
Data cable
HIKROBOT
Standard USB 3.0 data cable (Micro-B angled-USB-A), 1 m
Micro-B male (with screw) ,Angle (down) · 1 m
Data cable
HIKROBOT
Standard USB 3.0 data cable (Micro-B angled-USB-A), 2 m
Micro-B male (with screw) ,Angle (down) · 2 m
Data cable
More HIKROBOT products in this category
- Area scan camera MV-CH120-60UM V5
- Area scan camera MV-CH120-60VC
- Area scan camera MV-CH120-60VM
- Area scan camera MV-CH123-10UC
- Area scan camera MV-CH123-10UM
- Area scan camera MV-CH140-60UM
- Area scan camera MV-CH250-60UM
- Area scan camera MV-CH250-90UC V4
- Area scan camera MV-CH250-90UM V4
- Area scan camera MV-CH250-90UN V4
- Area scan camera MV-CH250-90VC
- Area scan camera MV-CH250-90VM
Description
Key Feature - Supports auto adjustment of gain, Gamma, and LUT correction, etc. - Supports software trigger, hardware trigger, and anyway mode. - Compact design with mounting holes on panels for flexible mounting from 4 sides. - Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
