Area scan camera MV-CH123-10UC
Manufacturer part number: MV-CH123-10UC
- Resolution
- 12.3 MP
- Pixels
- 4096 × 3000
- Max. frame rate
- 31.5 fps
- Color / mono
- Color
- Shutter type
- Global Shutter
- Sensor format
- 1/1.1"
- Pixel size
- 2.74 µm × 2.74 µm
- Interface
- USB 3.0
- Lens mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH123-10UC |
|---|---|
| Type | 12.3MP Area Scan Camera, USB3, IMX545, Color |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX545 |
| Pixel size | 2.74 µm × 2.74 µm |
| Sensor size | 1/1.1" |
| Resolution | 4096 × 3000 |
| Max. frame rate | 31.5 fps @ 4096 × 3000 Bayer RG 8 |
| Dynamic range | 69.4 dB |
| SNR | 39.4 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | UltraShort exposure mode: 1 µs to 2 µs Standard exposure mode: 3 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| Power consumption | Typ. 2.3 W @ 5 VDC (USB 3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

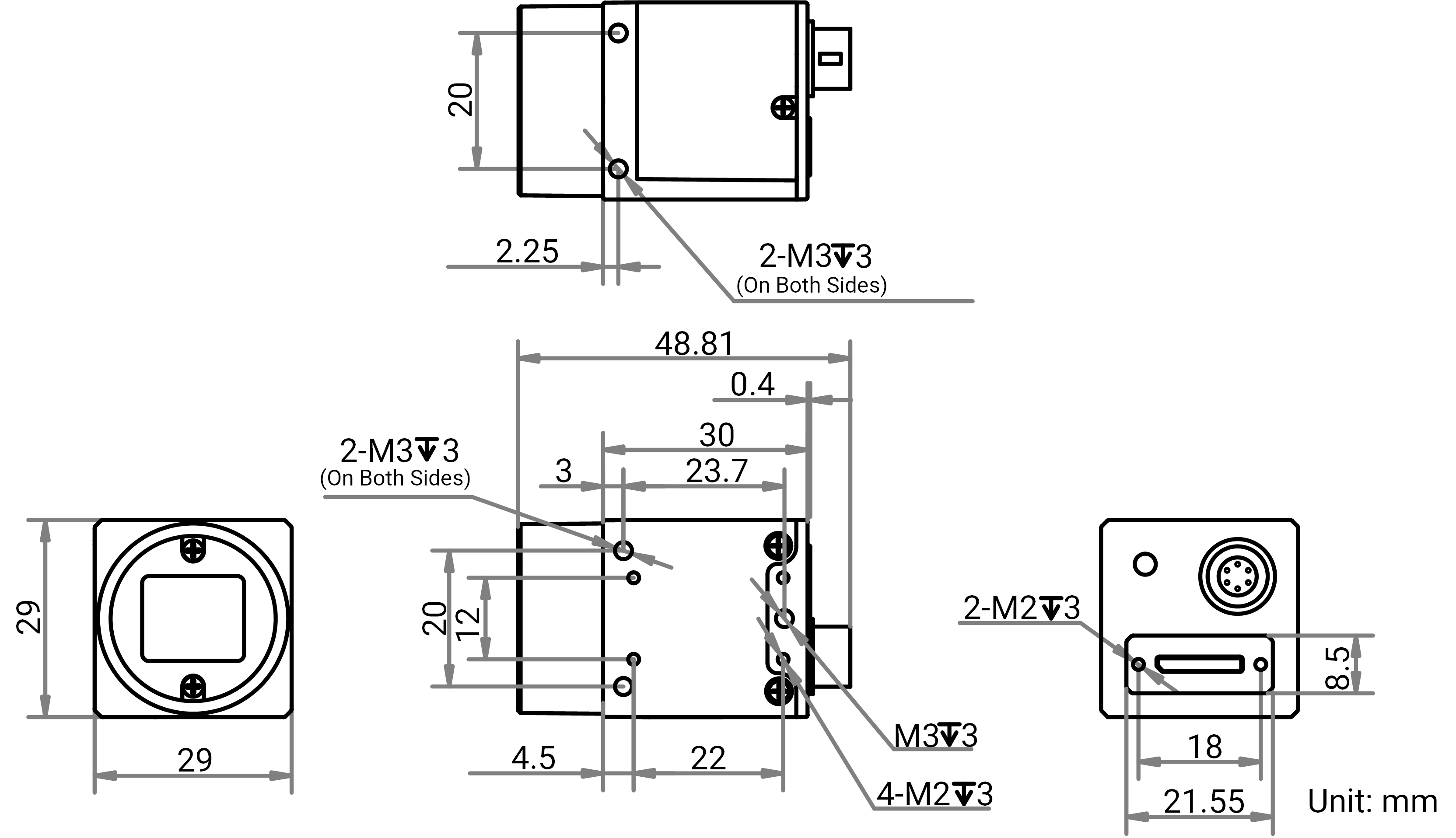

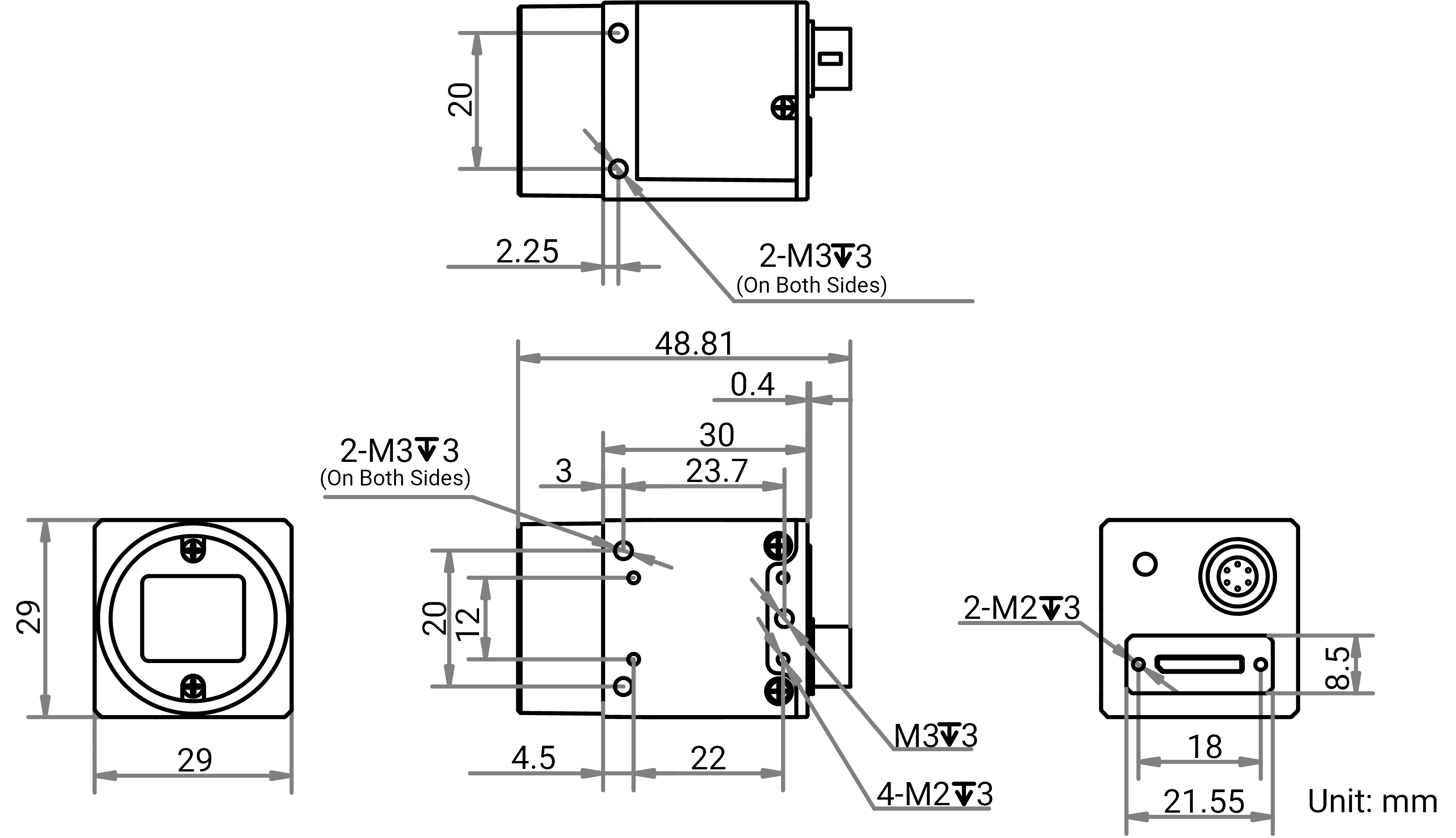

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Flächenkamera MV-CH123-10UC
Datasheet · EN · 528 KB
- Download
Technical drawing HikRobot Flächenkamera MV-CH123-10UC
Technical drawing · EN · 6946 KB
- Download
Software / Firmware V2.0.46 HikRobot Flächenkamera MV-CH123-10UC
Software / firmware · EN · 1120 KB
- Download
Manual HikRobot Flächenkamera MV-CH123-10UC
