HIKROBOT
Area scan camera MV-CS060-10GC-PRO
Manufacturer part number: MV-CS060-10GC-PRO · 306301401
- Resolution
- 6 MP
- Pixels
- 3072 × 2048
- Max. frame rate
- 19.1 fps
- Color / mono
- Color
- Shutter type
- Rolling Shutter
- Sensor format
- 1/1.8"
- Pixel size
- 2.4 µm × 2.4 µm
- Interface
- GigE
- Lens mount
- C-Mount
- Global reset
- Yes
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CS060-10GC-PRO |
|---|---|
| Type | 6MP Area Scan Camera,GigE,IMX178,Color,PRO |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX178 |
| Pixel size | 2.4 µm × 2.4 µm |
| Sensor size | 1/1.8" |
| Resolution | 3072 × 2048 |
| Max. frame rate | 19.1 fps @ 3072 × 2048 30.7 fps @ 3072 × 2048 (image compression mode enabled) |
| Dynamic range | 71.3 dB |
| SNR | 41.3 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 25 µs to 2.5 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Global Reset, Trigger Rolling, and Rolling |
| Mono | Color |
| Pixel format | Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | Typ. 2.5 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.22 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

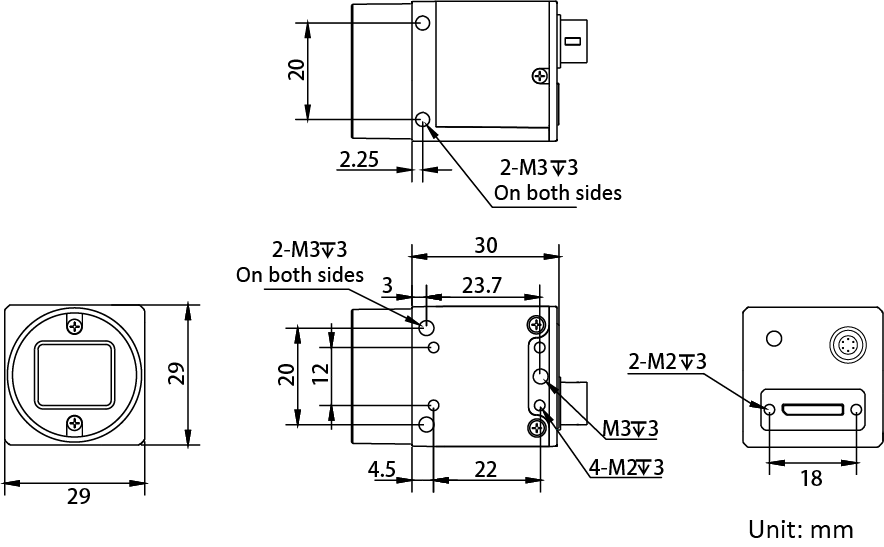

Dimensional drawing
Documents
- Download datasheet
Datasheet Hikrobot Flächenkamera MV-CS060-10GC-PRO
Datasheet · EN · 526 KB
- Download
Technical drawing Hikrobot Flächenkamera MV-CS060-10GC-PRO
Technical drawing · EN · 7 MB
Software and SDK (13)
- Download
Software / Firmware V4.1.5 Hikrobot Flächenkamera MV-CS060-10GC-PRO
Software / firmware · EN · 2 MB
- Download
MVS V5.1.0 (Windows)
Software / firmware · EN · 738 MB
- Download
MVS V5.1.0 (Linux) (aarch64)
Software / firmware · EN · 296 MB
- Download
MVS V5.1.0 (Linux) (x86)
Software / firmware · EN · 268 MB
- Download
MVS V5.1.0 (Linux) (x86_64)
Software / firmware · EN · 368 MB
- Download
MVS V5.0.0 (MacOS)
Software / firmware · EN · 86 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Windows)
Software / firmware · EN · 75 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Linux)
Software / firmware · EN · 146 MB
- Download
MVS V5.0.2 (Windows)
Software / firmware · EN · 456 MB
- Download
MVS V5.0.2 (Linux)
Software / firmware · EN · 778 MB
- Download
VisionMaster V4.4.0 Sample File
Software / firmware · EN · 956 MB
- Download
VisionMaster V4.4.0 Basic Package
Software / firmware · EN · 1775 MB
- Download
VisionMaster V4.4.0 DL Package (Supplemental) (2,7 GB)
Software / firmware · EN
- Download
Manual Hikrobot Flächenkamera MV-CS060-10GC-PRO
Manual · EN · 4 MB
Accessories
Data cables(25)
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 30 m
RJ45 (with locking stud) · 30 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45 angled-RJ45), 15 m
RJ45 (with locking stud),Bend (up) · 15 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45-RJ45), 30 m
RJ45 (with locking stud) · 30 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
Data cable
HIKROBOT
SuperFlex GigE data cable (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45 angled-RJ45), 15 m
RJ45 (with locking stud),Bend (up) · 15 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45 angled-RJ45), 5 m
RJ45 (with locking stud),Bend (up) · 5 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45 angled-RJ45), 5 m
RJ45 (with locking stud),Bend (up) · 5 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 1 m
RJ45 (with locking stud) · 1 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 60 m
RJ45 (with locking stud) · 60 m
Data cable
HIKROBOT
SuperFlex GigE data cable (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
Data cable
HIKROBOT
SuperFlex GigE data cable (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
Data cable
HIKROBOT
SuperFlex GigE data cable (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
Data cable
HIKROBOT
SuperFlex GigE data cable (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45 angled-RJ45), 3 m
RJ45 (with locking stud),Bend (up) · 3 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45 angled-RJ45), 3 m
RJ45 (with locking stud),Bend (up) · 3 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
Data cable
More HIKROBOT products in this category
- Area scan camera MV-CS050-60GN
- Area scan camera MV-CS050-80GC
- Area scan camera MV-CS050-80GM
- Area scan camera MV-CS050-90GC
- Area scan camera MV-CS050-90GM
- Area scan camera MV-CS060-10GC V5
- Area scan camera MV-CS060-10GM V5
- Area scan camera MV-CS060-10GM-PRO
- Area scan camera MV-CS120-10GC V5
- Area scan camera MV-CS120-10GM V5
- Area scan camera MV-CS120-60GC V5
- Area scan camera MV-CS120-60GM V5
Description
Key Feature - Adopts brand new design to reduce power consumption. - Supports image compression mode and noise reduction function. - Compact design with mounting holes on panels for flexible mounting from 4 sides. - Adopts GigE interface and max. transmission distance of 100 meters without relay. - Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
