HIKROBOT
Area scan camera MV-CS060-10GM V5
Manufacturer part number: MV-CS060-10GM V5
- Resolution
- 6 MP
- Pixels
- 3072 × 2048
- Max. frame rate
- 19.5 fps
- Color / mono
- Mono
- Shutter type
- Rolling Shutter
- Sensor format
- 1/1.8"
- Pixel size
- 2.4 µm × 2.4 µm
- Interface
- GigE
- Lens mount
- C-Mount
- Global reset
- Yes
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CS060-10GM V5 |
|---|---|
| Type | 6MP Area Scan Camera, GigE, V5, Mono |
| Sensor type | CMOS, rolling shutter |
| Pixel size | 2.4 µm × 2.4 µm |
| Sensor size | 1/1.8" |
| Resolution | 3072 × 2048 |
| Exposure time | 25 µs to 2.5 sec |
| Gain | 0 dB to 24 dB |
| Mono/color | Mono |
| Max. frame rate | 19.5 fps @ 3072 × 2048 Mono 8 |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Sensor model | Sony® IMX178 |
| Dynamic range | 71.3 dB |
| SNR | 41.3 dB |
| Exposure mode | Off/Once/Continuous exposure mode, and supports Global Reset |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power consumption | Typ. 1.4 W @ 12 VDC |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 100 g (0.22 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Lens mount | C-mount |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

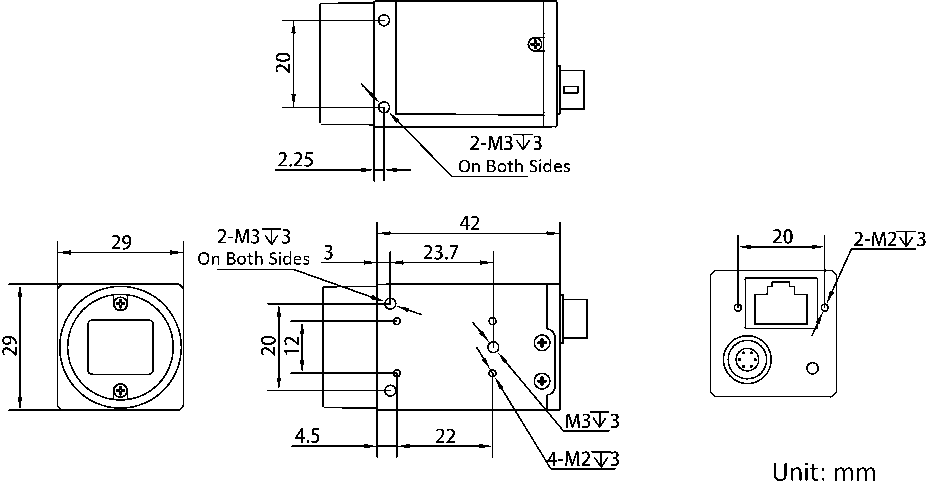

Dimensional drawing
Documents
- Download datasheet
Datasheet Hikrobot Flächenkamera MV-CS060-10GM V5
Datasheet · EN · 526 KB
- Download
Technical drawing Hikrobot Flächenkamera MV-CS060-10GM V5
Technical drawing · EN · 5 MB
Software and SDK (13)
- Download
Software / Firmware V4.5.13 Hikrobot Flächenkamera MV-CS060-10GM V5
Software / firmware · EN · 866 KB
- Download
MVS V5.1.0 (Windows)
Software / firmware · EN · 738 MB
- Download
MVS V5.1.0 (Linux) (aarch64)
Software / firmware · EN · 296 MB
- Download
MVS V5.1.0 (Linux) (x86)
Software / firmware · EN · 268 MB
- Download
MVS V5.1.0 (Linux) (x86_64)
Software / firmware · EN · 368 MB
- Download
MVS V5.0.0 (MacOS)
Software / firmware · EN · 86 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Windows)
Software / firmware · EN · 75 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Linux)
Software / firmware · EN · 146 MB
- Download
VisionMaster V4.4.0 Sample File
Software / firmware · EN · 956 MB
- Download
VisionMaster V4.4.0 Basic Package
Software / firmware · EN · 1775 MB
- Download
VisionMaster V4.4.0 DL Package (Supplemental) (2,7 GB)
Software / firmware · EN
- Download
MVS V5.0.2 (Windows)
Software / firmware · EN · 456 MB
- Download
MVS V5.0.2 (Linux)
Software / firmware · EN · 778 MB
- Download
Manual Hikrobot Flächenkamera MV-CS060-10GM V5
Manual · EN · 4 MB
Accessories
Data cables(25)
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 30 m
RJ45 (with locking stud) · 30 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 15 m
RJ45 (with locking stud),Bend (up) · 15 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 30 m
RJ45 (with locking stud) · 30 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
Datenkabel
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45 Winkel-RJ45), 15 m
RJ45 (with locking stud),Bend (up) · 15 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45 Winkel-RJ45), 5 m
RJ45 (with locking stud),Bend (up) · 5 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 5 m
RJ45 (with locking stud),Bend (up) · 5 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 1 m
RJ45 (with locking stud) · 1 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 60 m
RJ45 (with locking stud) · 60 m
Datenkabel
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
Datenkabel
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
Datenkabel
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
Datenkabel
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45 Winkel-RJ45), 3 m
RJ45 (with locking stud),Bend (up) · 3 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 3 m
RJ45 (with locking stud),Bend (up) · 3 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
Datenkabel
Description
Key Feature - Adopts brand new design to reduce power consumption. - Supports auto or manual adjustment of gain, exposure time, LUT, and Gamma correction, etc. - Supports CCM function to provide high-quality images. - Adopts GigE interface and max. transmission distance of 100 meters without relay. - Compact design with mounting holes on panels for flexible mounting from 4 sides. - Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
