HIKROBOT
Area scan camera MV-CS050-80GC
Manufacturer part number: MV-CS050-80GC
- Resolution
- 5 MP
- Pixels
- 2448 × 2048
- Max. frame rate
- 24 fps
- Color / mono
- Color
- Shutter type
- Global Shutter
- Sensor format
- 2/3"
- Pixel size
- 3.45 µm × 3.45 µm
- Interface
- GigE
- Lens mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CS050-80GC |
|---|---|
| Type | 5MP Area Scan Camera, GigE, Color |
| Sensor type | CMOS, global shutter |
| Sensor model | SS |
| Pixel size | 3.45 µm × 3.45 µm |
| Sensor size | 2/3" |
| Resolution | 2448 × 2048 |
| Max. frame rate | 24 fps @ 2448 × 2048 Bayer BG 8 |
| Dynamic range | 61.8 dB |
| SNR | 41.9 dB |
| Gain | 0 dB to 12 dB |
| Exposure time | 25 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono | Color |
| Pixel format | Mono 8 Bayer BG 8/10/10Packed/12/12Packed YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | Typ. 1.3 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 102 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Window 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Quantum efficiency | 69.98 % |
| Dark noise | 12.0e- @ 12 bit |
| Saturation capacity | 15.4 ke- |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

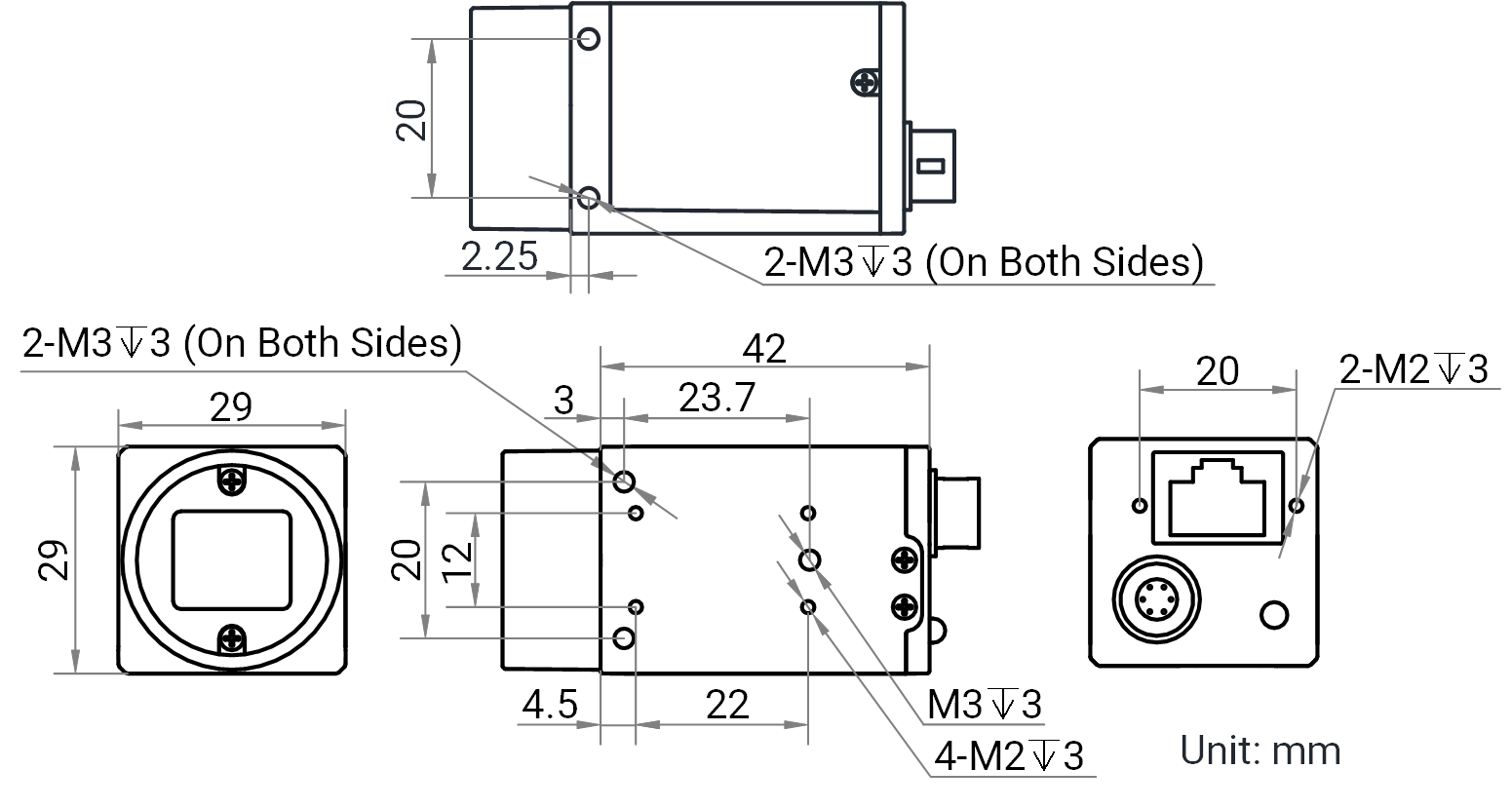

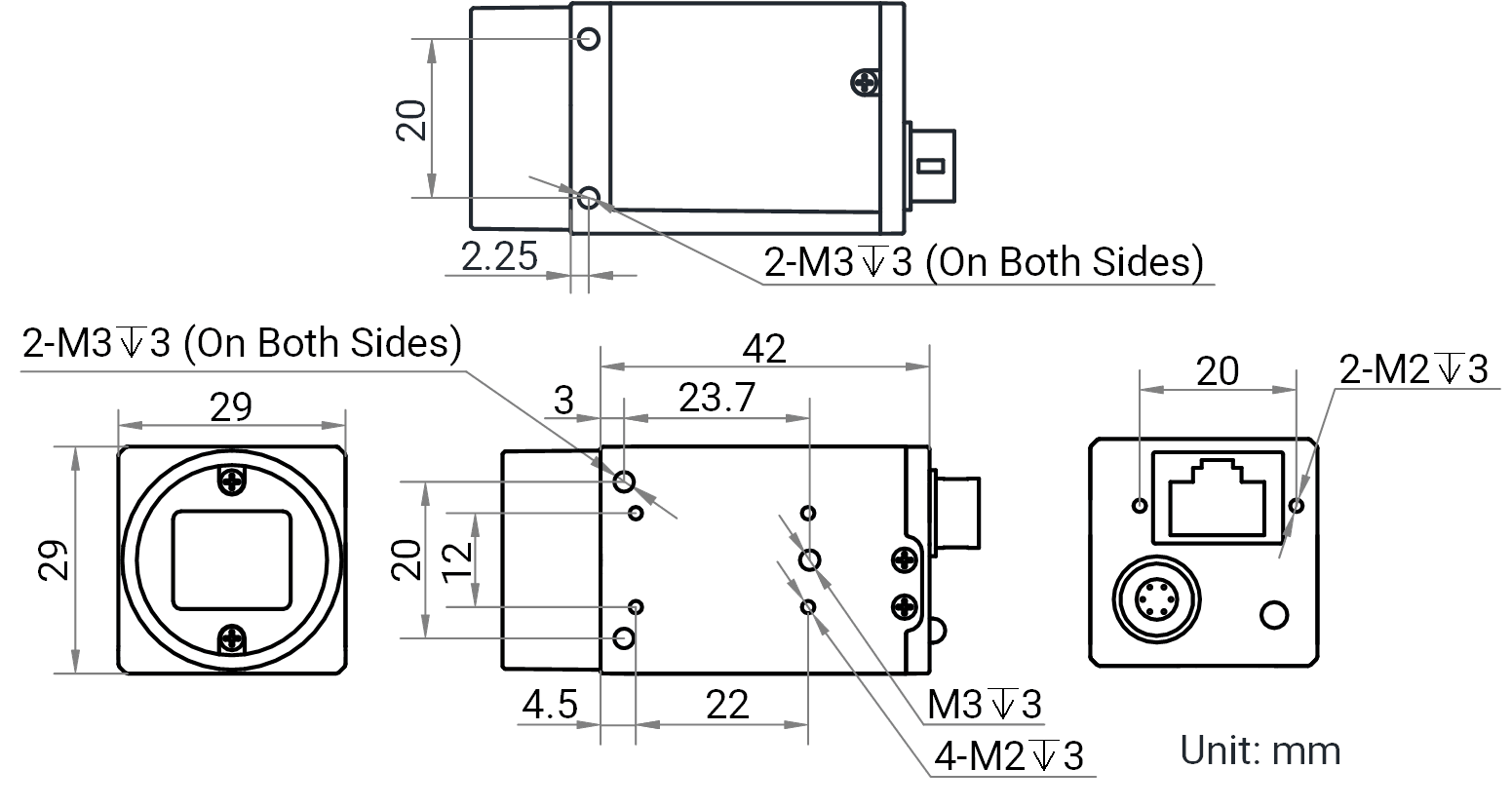

Dimensional drawing
Documents
- Download datasheet
Datasheet Hikrobot Flächenkamera MV-CS050-80GC
Datasheet · EN · 513 KB
- Download
Technical drawing Hikrobot Flächenkamera MV-CS050-80GC
Technical drawing · EN · 10 MB
Software and SDK (13)
- Download
Software / Firmware V4.5.15 Hikrobot Flächenkamera MV-CS050-80GC
Software / firmware · EN · 949 KB
- Download
MVS V5.1.0 (Windows)
Software / firmware · EN · 738 MB
- Download
MVS V5.1.0 (Linux) (aarch64)
Software / firmware · EN · 296 MB
- Download
MVS V5.1.0 (Linux) (x86)
Software / firmware · EN · 268 MB
- Download
MVS V5.1.0 (Linux) (x86_64)
Software / firmware · EN · 368 MB
- Download
MVS V5.0.0 (MacOS)
Software / firmware · EN · 86 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Windows)
Software / firmware · EN · 75 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Linux)
Software / firmware · EN · 146 MB
- Download
VisionMaster V4.4.0 Sample File
Software / firmware · EN · 956 MB
- Download
VisionMaster V4.4.0 Basic Package
Software / firmware · EN · 1775 MB
- Download
VisionMaster V4.4.0 DL Package (Supplemental) (2,7 GB)
Software / firmware · EN
- Download
MVS V5.0.2 (Windows)
Software / firmware · EN · 456 MB
- Download
MVS V5.0.2 (Linux)
Software / firmware · EN · 778 MB
- Download
Manual Hikrobot Flächenkamera MV-CS050-80GC
Manual · EN · 4 MB
Accessories
Data cables(25)
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 30 m
RJ45 (with locking stud) · 30 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 15 m
RJ45 (with locking stud),Bend (up) · 15 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 30 m
RJ45 (with locking stud) · 30 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
Datenkabel
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45 Winkel-RJ45), 15 m
RJ45 (with locking stud),Bend (up) · 15 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45 Winkel-RJ45), 5 m
RJ45 (with locking stud),Bend (up) · 5 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 5 m
RJ45 (with locking stud),Bend (up) · 5 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 1 m
RJ45 (with locking stud) · 1 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 60 m
RJ45 (with locking stud) · 60 m
Datenkabel
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
Datenkabel
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
Datenkabel
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
Datenkabel
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45 Winkel-RJ45), 3 m
RJ45 (with locking stud),Bend (up) · 3 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 3 m
RJ45 (with locking stud),Bend (up) · 3 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
Datenkabel
Description
Key Feature - Adopts brand new design to reduce power consumption. - Supports auto or manual adjustment for gain, exposure control, white balance, contrast ratio, Gamma correction, etc. - Compact design with mounting holes on panels for flexible mounting from 4 sides. - Adopts GigE interface and max. transmission distance of 100 meters without relay. - Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
