HIKROBOT
Area scan camera MV-CS050-60GN
Manufacturer part number: MV-CS050-60GN · 306302728
- Resolution
- 5 MP
- Pixels
- 2448 × 2048
- Max. frame rate
- 23 fps
- Color / mono
- NIR
- Shutter type
- Global Shutter
- Sensor format
- 2/3"
- Pixel size
- 3.45 µm × 3.45 µm
- Interface
- GigE
- Lens mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CS050-60GN |
|---|---|
| Type | 5MP Area Scan Camera, GigE, 2nd Generation, NIR enhanced |
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Pixel size | 3.45 µm × 3.45 µm |
| Sensor size | 2/3" |
| Resolution | 2448 × 2048 |
| Max. frame rate | 23 fps @ 2448 × 2048 Mono 8 |
| Dynamic range | 73.9 dB |
| SNR | 42.4 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | High full well capacity: 30 µs to 10 sec High sensitivity: 5 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Near IR |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | Typ. 2.3 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

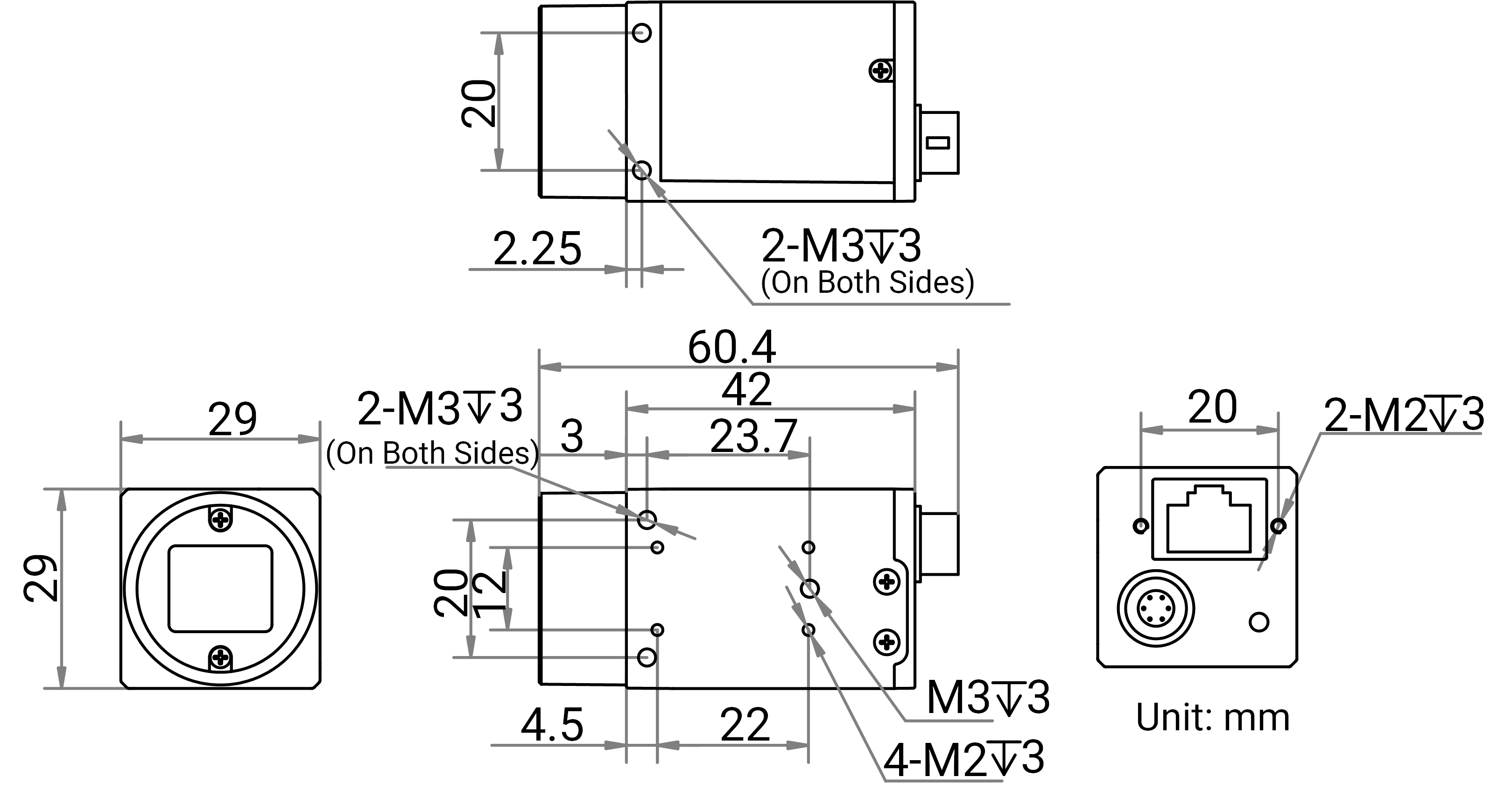

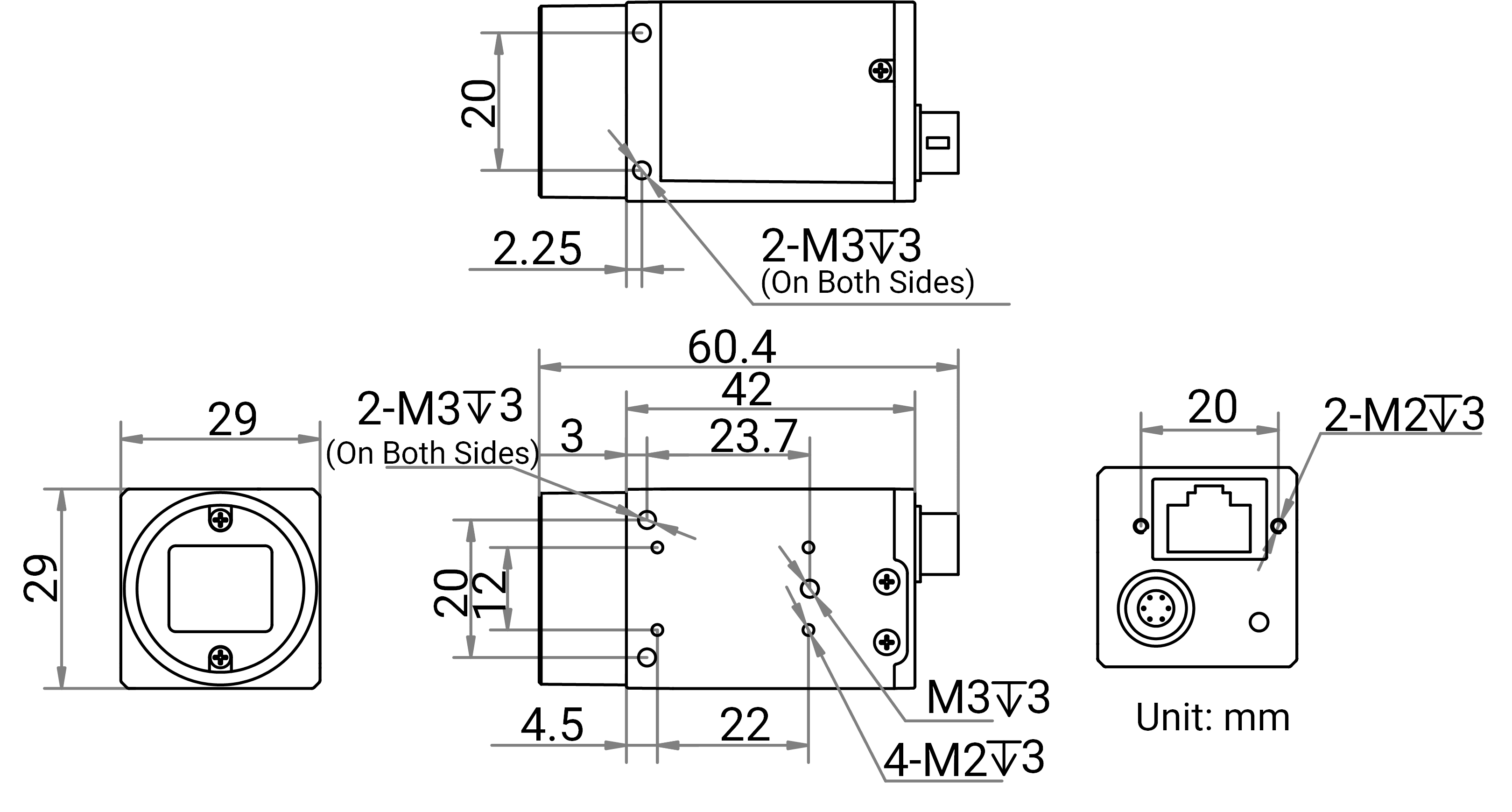

Dimensional drawing
Documents
- Download datasheet
Datasheet Hikrobot Flächenkamera MV-CS050-60GN
Datasheet · EN · 568 KB
- Download
Technical drawing Hikrobot Flächenkamera MV-CS050-60GN
Technical drawing · EN · 8 MB
Software and SDK (13)
- Download
Software / Firmware V4.1.15 Hikrobot Flächenkamera MV-CS050-60GN
Software / firmware · EN · 1 MB
- Download
MVS V5.1.0 (Windows)
Software / firmware · EN · 738 MB
- Download
MVS V5.1.0 (Linux) (aarch64)
Software / firmware · EN · 296 MB
- Download
MVS V5.1.0 (Linux) (x86)
Software / firmware · EN · 268 MB
- Download
MVS V5.1.0 (Linux) (x86_64)
Software / firmware · EN · 368 MB
- Download
MVS V5.0.0 (MacOS)
Software / firmware · EN · 86 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Windows)
Software / firmware · EN · 75 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Linux)
Software / firmware · EN · 146 MB
- Download
VisionMaster V4.4.0 Sample File
Software / firmware · EN · 956 MB
- Download
VisionMaster V4.4.0 Basic Package
Software / firmware · EN · 1775 MB
- Download
VisionMaster V4.4.0 DL Package (Supplemental) (2,7 GB)
Software / firmware · EN
- Download
MVS V5.0.2 (Windows)
Software / firmware · EN · 456 MB
- Download
MVS V5.0.2 (Linux)
Software / firmware · EN · 778 MB
- Download
Manual Hikrobot Flächenkamera MV-CS050-60GN
Manual · EN · 4 MB
Accessories
Data cables(25)
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 30 m
RJ45 (with locking stud) · 30 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 15 m
RJ45 (with locking stud),Bend (up) · 15 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 30 m
RJ45 (with locking stud) · 30 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
Datenkabel
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45 Winkel-RJ45), 15 m
RJ45 (with locking stud),Bend (up) · 15 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45 Winkel-RJ45), 5 m
RJ45 (with locking stud),Bend (up) · 5 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 5 m
RJ45 (with locking stud),Bend (up) · 5 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 1 m
RJ45 (with locking stud) · 1 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 60 m
RJ45 (with locking stud) · 60 m
Datenkabel
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
Datenkabel
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
Datenkabel
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
Datenkabel
HIKROBOT
SuperFlex GigE Datenkabel (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45 Winkel-RJ45), 3 m
RJ45 (with locking stud),Bend (up) · 3 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
Datenkabel
HIKROBOT
Hochflex GigE Datenkabel (RJ45 Winkel-RJ45), 3 m
RJ45 (with locking stud),Bend (up) · 3 m
Datenkabel
HIKROBOT
Standard GigE Datenkabel (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
Datenkabel
Description
Key Feature - Adopts brand new design to reduce power consumption. - Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc., and supports Sequencer function. - Supports ISP functions like CCM, Super Palette, and Super Bayer to provide high-quality images. - Compact design with mounting holes on panels for flexible mounting from 4 sides. - Adopts GigE interface and max. transmission distance of 100 meters without relay. - Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
