di-soric
Dome light BE-DOME10070-RGB-T6
Manufacturer part number: BE-DOME10070-RGB-T6
Series: BE-DOME10070
- Dome type
- Classic dome light
- Emitting area
- Ø 100 mm
- Light color
- RGB (red 630 nm · green 530 nm · blue 470 nm)
- Drive / supply
- 24 V DC
- Connection
- Connector, M8, 6-pin
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | BE-DOME10070-RGB-T6 |
|---|---|
| Elektrische Merkmale: Betriebsspannung | 24 V DC |
| Elektrische Merkmale: Leistung | 1.7 W (70 mA, 24 V DC) |
| Elektrische Merkmale: Stromaufnahme | 150 mA (3 Farben, ∑ < 3.6 W) |
| Mechanische Merkmale: Leuchtfläche | Ø 70 mm |
| Mechanische Merkmale: Anzahl | 30 (LEDs) |
| Mechanische Merkmale: Durchmesser | Ø 100 mm (Durchmesser) |
| Mechanische Merkmale: Gehäusematerial | Aluminum / plastic |
| Zertifizierungen, Zulassungen: Schutzklasse | III, operation on safety extra-low voltage |
| Zertifizierungen, Zulassungen: Risikogruppe (DIN EN 62471) | Exempt group |
| Optische Daten: Lichtquelle | LED |
| Optische Daten: Farbe | RGB |
| Optische Daten: Wellenlänge | 630, 530, 470 nm |
| Optische Daten: Abstrahlwinkel FWHM | 120° |
| Umgebungsbedingungen: Umgebungstemperatur Betrieb | 0 … +50 °C |
| Elektrischer Anschluss: Anschluss | Connector, M8, 6-pin |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

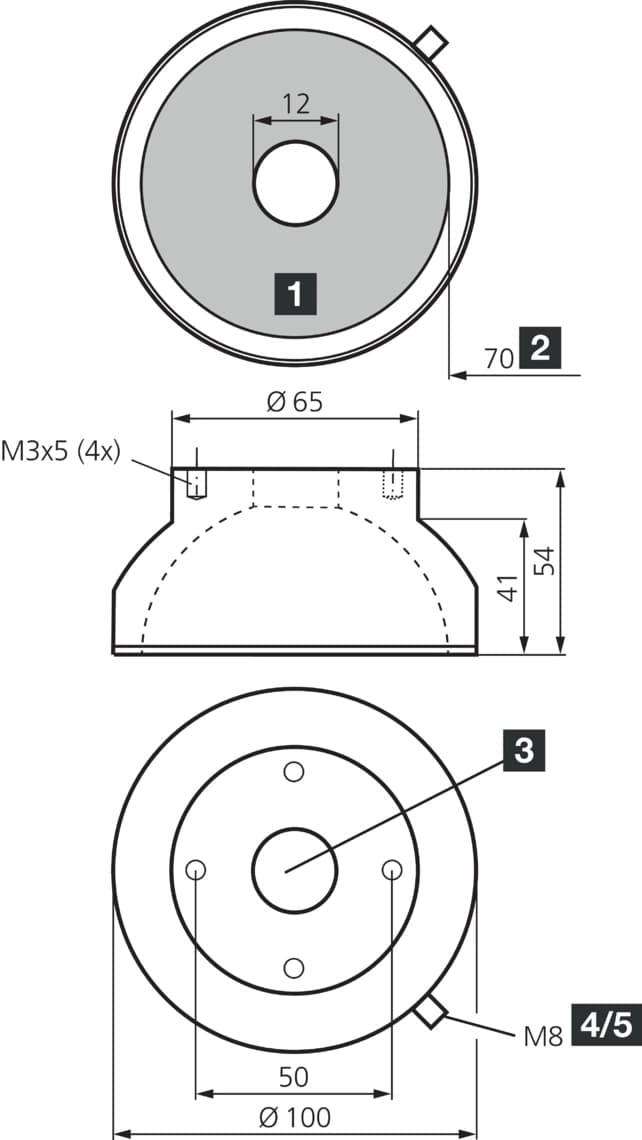

Dimensional drawing
Documents
- Download datasheet
Datasheet BE-DOME10070-RGB-T6
Datasheet · DE · 960 KB
Accessories
Power / I/O cables(16)
di-soric
Strom- / I/O-Kabel VKHM-W-2.54
Buchse, M12, 4-pin, A-coded · 2500 mm
di-soric
Strom- / I/O-Kabel VKHM-W-54
Buchse, M12, 4-pin, A-coded · 5000 mm
di-soric
Strom- / I/O-Kabel VKHM-W-104
Buchse, M12, 4-pin, A-coded · 10000 mm
di-soric
Strom- / I/O-Kabel VKHM-W-154
Buchse, M12, 4-pin, A-coded · 15000 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-2.54
Buchse, M12, 4-pin, A-coded · 2500 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-54
Buchse, M12, 4-pin, A-coded · 5000 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-104
Buchse, M12, 4-pin, A-coded · 10000 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-154
Buchse, M12, 4-pin, A-coded · 15000 mm
di-soric
Strom- / I/O-Kabel VKHM-W-2.54LP
Buchse, M12, 4-pin, A-coded · 2500 mm
di-soric
Strom- / I/O-Kabel VKHM-W-54LP
Buchse, M12, 4-pin, A-coded · 5000 mm
di-soric
Strom- / I/O-Kabel VKHM-W-104LP
Buchse, M12, 4-pin, A-coded · 10000 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-2.54LP
Buchse, M12, 4-pin, A-coded · 2500 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-104LP
Buchse, M12, 4-pin, A-coded · 10000 mm
di-soric
Strom- / I/O-Kabel VKPM-W-2.54LP
Buchse, M12, 4-pin · 2500 mm
di-soric
Strom- / I/O-Kabel VKPM-W-54LP
Buchse, M12, 4-pin · 5000 mm
di-soric
Strom- / I/O-Kabel VKPM-W-104LP
Buchse, M12, 4-pin · 10000 mm
Halterung / Stand(1)
Sonstiges(1)
Description
Spherical dome lights from di-soric guarantee an extremely diffuse lighting scenario. Shadows cast by rugged or scratched surfaces are suppressed as far as possible. The camera application can therefore render the contrasts and product features under inspection far more reliably than with point or area lights.
