di-soric
Power / I/O cable VKPM-W-54LP
Manufacturer part number: VKPM-W-54LP
Series: VKPM-W
- Accessory type
- Power / I/O cable
- Length
- 5000 mm
- Connector A
- Buchse, M12, 4-pin
- Connector B
- 0.34 mm² (4 x)
- Flexibility
- Angled / flying leads
- Ingress protection
- IP67
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | VKPM-W-54LP |
|---|---|
| Elektrische Merkmale: Betriebsspannung | < 31 V DC |
| Mechanische Merkmale: Länge | 5000 mm |
| Mechanische Merkmale: Durchmesser | Ø 5.0 mm (Durchmesser) |
| Mechanische Merkmale: Gewinde | M12 |
| Mechanische Merkmale: Material Kabel | PVC |
| Mechanische Merkmale: Material | PVC (connector) |
| Zertifizierungen, Zulassungen: Schutzklasse | III, operation on safety extra-low voltage |
| Allgemeine Merkmale: Bauform | Angled / flying leads |
| Allgemeine Merkmale: Besonderheiten | Metallmutter |
| Anzeige, Bedienung: LED Anzeige | Yes |
| Umgebungsbedingungen: Umgebungstemperatur Betrieb | -5 … +80 °C (bewegt, fest) |
| Umgebungsbedingungen: Schutzart | IP 67 (at a tightening torque of 0.6 Nm) |
| Elektrischer Anschluss: Anschluss | Buchse, M12, 4-pin |
| Elektrischer Anschluss: Anschluss 2 | 0.34 mm² (4 x) |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

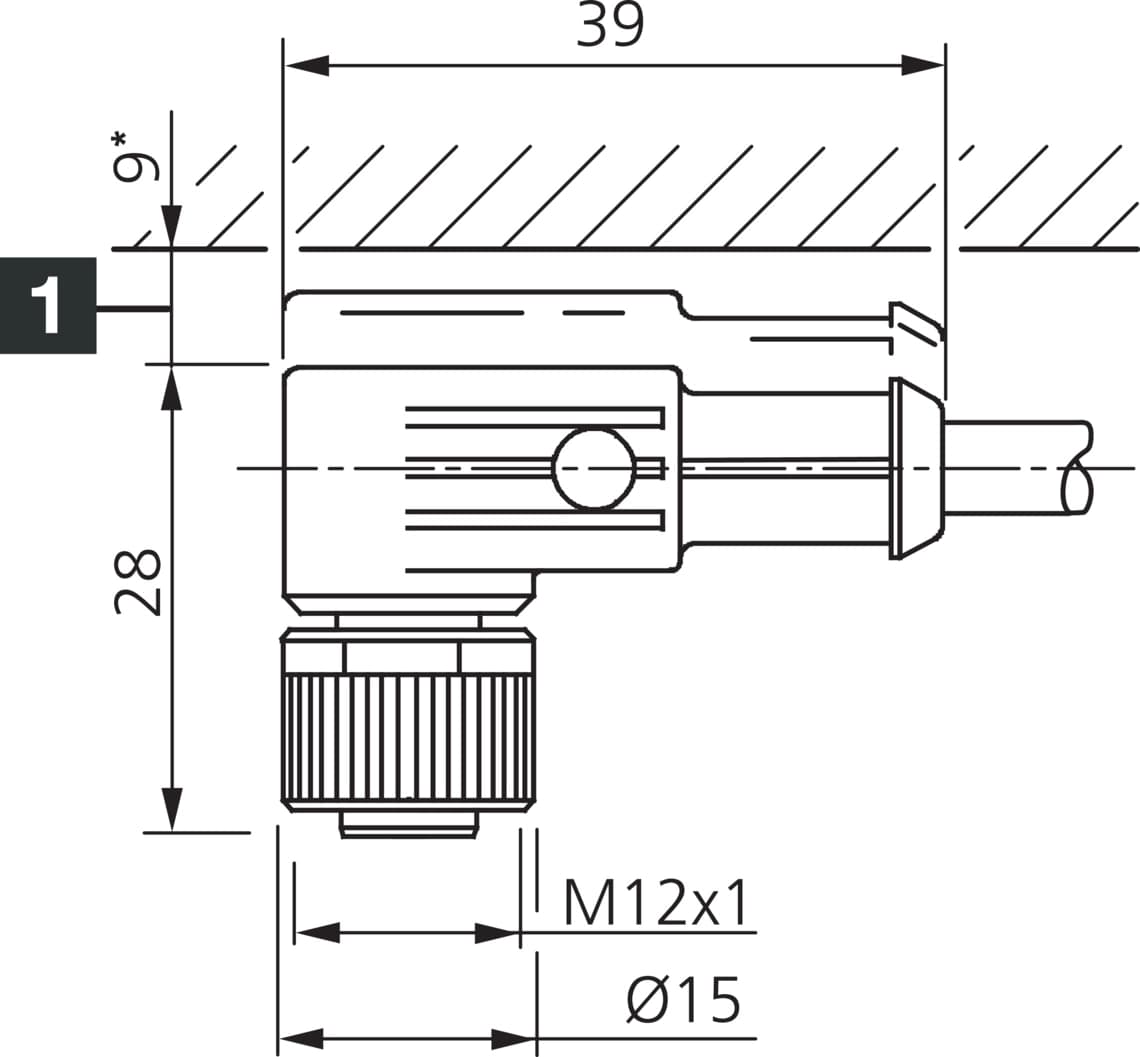

Dimensional drawing
Documents
- Download datasheet
203536 ds VKPM-W-5-4-LP de (PDF)
Datasheet · DE · 577 KB
- Download
VKxM-W-xx (STP)
Technical drawing · DE · 161 KB
Description
Further properties include: PVC cable material for applications in wet areas or under water, LEDs for operating voltage and switching state, sturdy metal coupling nut, flexible stranded construction, good stripping properties, high degree of protection and gold-plated contacts.
