Line scan camera MV-CL166-91F2C
Manufacturer part number: MV-CL166-91F2C · 306302344
- Interface
- XoFLink
- Line resolution
- 16K
- Resolution
- 16384 × 12
- Pixel size
- 5 µm × 5 µm
- Max. line rate
- 47.3 kHz
- Mono / color
- Color
- Lens mount
- M90 × 1
- Sensor type
- CMOS
- Dimensions
- 99 × 99 × 83.4 mm
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CL166-91F2C |
|---|---|
| Sensor type | CMOS |
| Pixel size | 5 µm × 5 µm |
| Resolution | 16384 × 12 |
| Image mode | Supports 1-Line, 2-TDI, 3-TDI, 4-TDI |
| Max. line rate | 47.3 kHz (1-Line), 45.3 kHz (2-TDI), 30.6 kHz (3-TDI), 23.1 kHz (4-TDI) |
| Dynamic range | 69.3 dB |
| SNR | 41.4 dB |
| Gain | 1.0 × |
| Exposure time | 3 µs to 10 ms |
| Exposure mode | Off/Once/Continuous exposure mode, and supports trigger-width exposure |
| Mono | Color |
| Pixel format | RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Trigger mode | External trigger, internal trigger |
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Data interface | 2LC fiber connector |
| Digital I/O | 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported. |
| Power supply | 24 VDC |
| Power consumption | Typ. 22.5 W @ 24 VDC |
| Lens mount | M90*1.0, flange back length 12 mm, applicable to F-mount via lens adapter |
| Dimension | 99 mm × 99 mm × 83.4 mm (3.9" × 3.9" × 3.3") |
| Weight | Approx. 923 g (2.0 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 55 °C (–4 °F to 131 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5 % RH to 90 % RH (no condensation) |
| Client software | MVS |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Compatibility | XoFLink, GenlCam |
| Certification | CE, RoHS, KC |
| Mono / color | Color |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

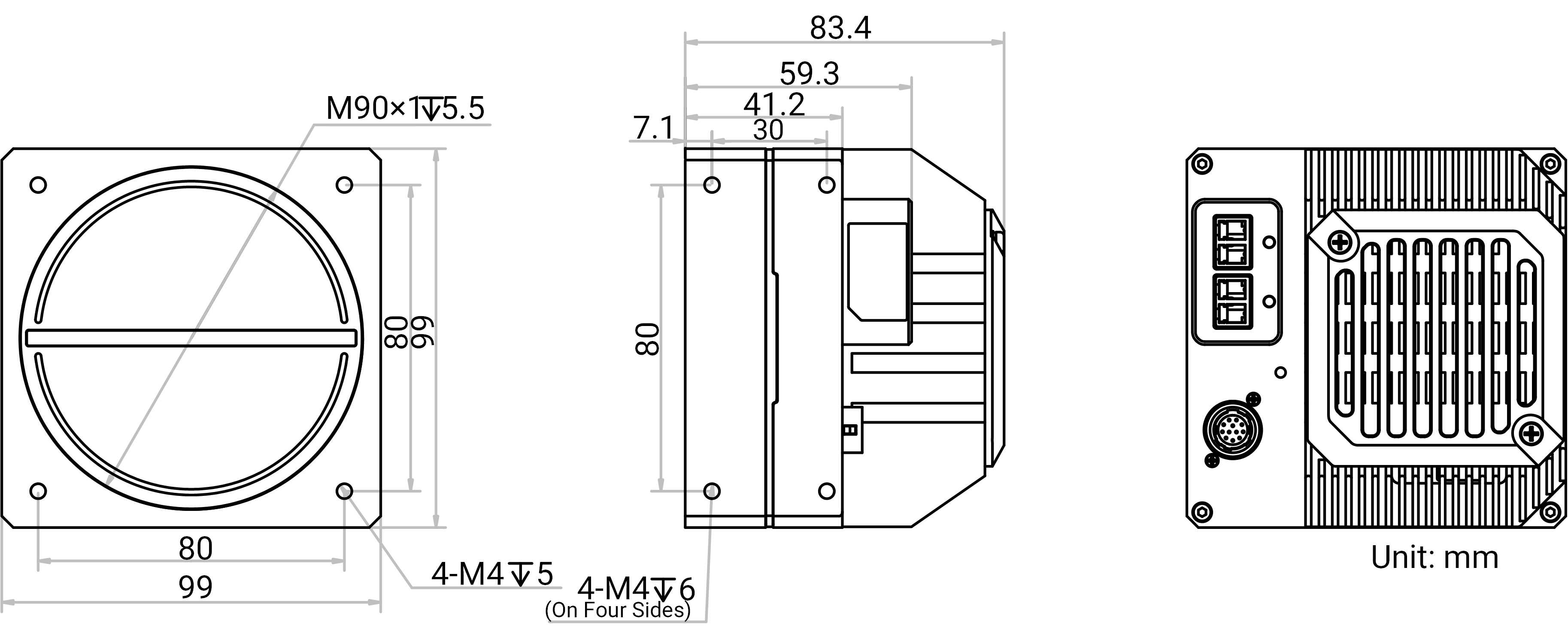

Dimensional drawing
