Line scan camera MV-CL084-91F2M
Manufacturer part number: MV-CL084-91F2M · 306302543
- Interface
- XoFLink
- Line resolution
- 8K
- Resolution
- 8192 × 4
- Pixel size
- 7 µm × 7 µm
- Max. line rate
- 200 kHz
- Mono / color
- Mono
- Lens mount
- M72 × 0.75
- Sensor type
- CMOS
- Dimensions
- 132 × 76 × 57.4 mm
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CL084-91F2M |
|---|---|
| Type | 8K7 XoF 4-line（2 SFP+） mono line-scan camera |
| Sensor type | CMOS |
| Pixel size | 7 µm × 7 µm |
| Resolution | 8192 × 4 |
| Image mode | Supports multi-light control: 1/2/3/4 light(s) Supports 1-Line, 2-TDI, 4-TDI |
| Max. line rate | 1-light mode: 200 kHz (1-Line), 100 kHz (2-TDI), 50 kHz (4-TDI) 2-light mode: 52 kHz (1-Line), 26 kHz (2-TDI) 3-light mode: 34.6 kHz (1-Line) 4-light mode: 26 kHz (1-Line) |
| Dynamic range | 63.4 dB |
| SNR | 40.8 dB |
| Gain | 1.0 × |
| Exposure time | 3 µs to 10 ms |
| Exposure mode | Off/Once/Continuous exposure mode, and supports trigger-width exposure |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Trigger mode | External trigger, internal trigger |
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Data interface | 2LC fiber connector |
| Digital I/O | 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported. |
| Power supply | 12 VDC to 24 VDC |
| Power consumption | Typ. 15.4 W @ 24 VDC |
| Lens mount | M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter |
| Dimension | 132 mm × 76 mm × 57.4 mm (5.2" × 3.0" × 2.3") |
| Weight | Approx. 600 g (1.3 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 50 °C (–4 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5 % RH to 90 % RH (no condensation) |
| Client software | MVS |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Compatibility | XoFLink, GenlCam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

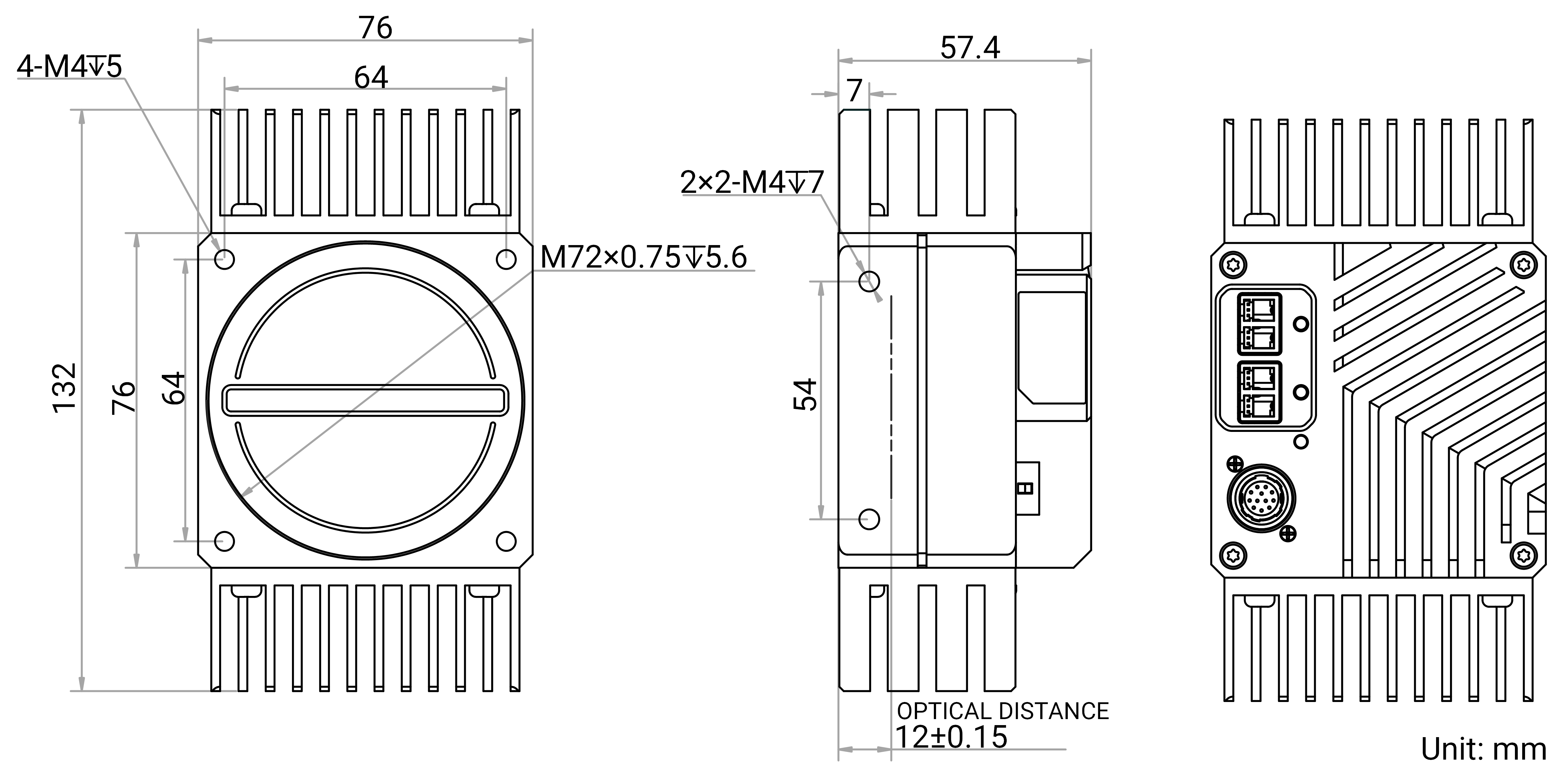

Dimensional drawing
Documents
- Download datasheet
Datasheet Hikrobot Zeilenkamera MV-CL084-91F2M
Datasheet · EN · 521 KB
- Download
Technical drawing Hikrobot Zeilenkamera MV-CL084-91F2M
Technical drawing · EN · 4355 KB
- Download
Software / Firmware V4.1.1 Hikrobot Zeilenkamera MV-CL084-91F2M
Software / firmware · EN · 8090 KB
- Download
Manual Hikrobot Zeilenkamera MV-CL084-91F2M
Manual · EN · 4871 KB
Description
Key Feature - Supports multi-light control, multi-exposure, TDI, etc. - Adopts multiple ISP like Gamma correction, flat field correction, LUT, black level offset, etc. - Provides dual XoF fiber ports with high-speed. - Adopts bi-directional configurable I/O hardware design. - Compact design and flexible installation.
