Line scan camera MV-CL162-91F2M

Manufacturer part number: MV-CL162-91F2M · 306302429

Interface: XoFLink
Line resolution: 16K
Resolution: 16384 × 2
Pixel size: 3.5 µm × 3.5 µm
Max. line rate: 120 kHz
Mono / color: Mono
Lens mount: M72 × 0.75
Sensor type: CMOS
Dimensions: 132 × 76 × 57.4 mm

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	MV-CL162-91F2M
Sensor type	CMOS
Pixel size	3.5 µm × 3.5 µm
Resolution	16384 × 2
Image mode	Supports 1-Line, 2-TDI
Max. line rate	1 Link mode: 73.2 kHz (1-Line), 60 kHz (2-TDI) 2 Link mode: 120 kHz (1-Line), 60 kHz (2-TDI)
Dynamic range	62.04 dB
SNR	39.22 dB
Gain	1.0 ×
Exposure time	3 µs to 10 ms
Exposure mode	Off/Once/Continuous exposure mode, and supports trigger-width exposure
Mono/color	Mono
Pixel format	Mono 8/10/12
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal reverse image output
Trigger mode	External trigger, internal trigger
External trigger mode	Line trigger, frame trigger, line + frame trigger
Data interface	2LC fiber connector
Digital I/O	12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported.
Power supply	12 VDC to 24 VDC
Power consumption	Typ. 10.6 W @ 24VDC
Lens mount	M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter
Dimension	132 mm × 76 mm × 57.4 mm (5.2" × 3.0" × 2.3")
Weight	Approx. 600 g (1.3 lb.)
Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –20 °C to 50 °C (–4 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	5 % RH to 90 % RH (no condensation)
Client software	MVS
Operating system	32/64-bit Windows 7/10, 64-bit Windows 11
Compatibility	XoFLink, GenlCam
Certification	CE, RoHS, KC

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

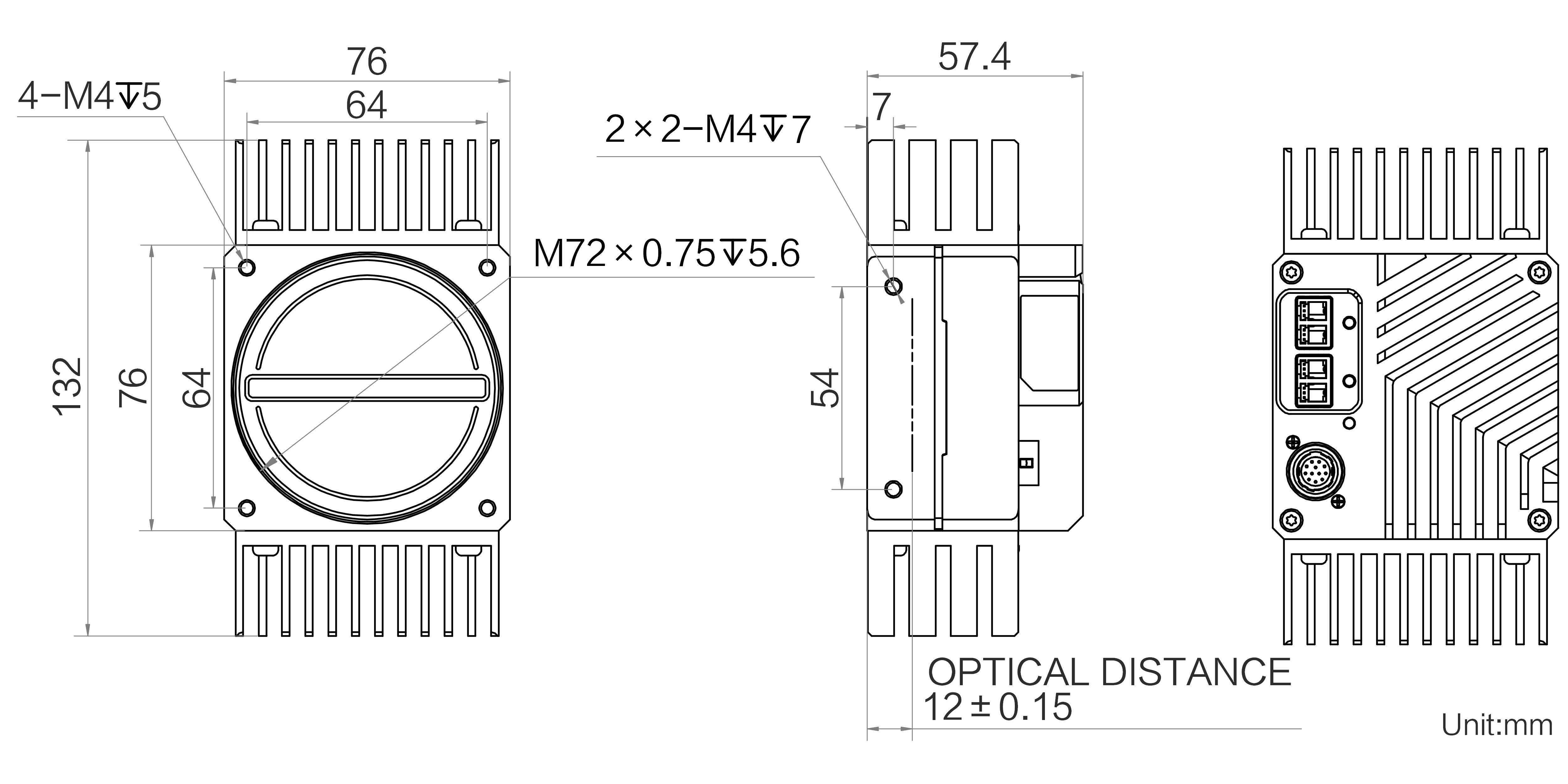

Dimensional drawing
