Line scan camera MV-CL083-92CC
Manufacturer part number: MV-CL083-92CC · 306301832
- Interface
- Camera Link
- Line resolution
- 8K
- Resolution
- 8192 × 3
- Pixel size
- 7 µm × 7 µm
- Max. line rate
- 66.6 kHz
- Mono / color
- Color
- Lens mount
- M72 × 0.75
- Sensor type
- CMOS
- Dimensions
- 76 × 76 × 42.1 mm
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CL083-92CC |
|---|---|
| Type | 8k pixels Linescan Cameras.Camera Link,Color |
| Sensor type | CMOS |
| Pixel size | 7 µm × 7 µm |
| Resolution | 8192 × 3 |
| Image mode | Supports 1-line |
| Max. line rate | 10.1 kHz (Base), 20.2 kHz (Medium), 33.7 kHz (80-bit) Increases line rate via ROI: Max. 66.6 kHz (4140 resolution and below) |
| Configuration mode | Base, Medium, 80-bit |
| Tap geometry | 1 × 1, 1 × 2, 1 × 10 |
| Tap number | 1 Tap, 2 Taps, 10 Taps |
| Pixel clock | 40 MHz, 66 MHz, 80 MHz, 85 MHz |
| Dynamic range | 63.4 dB |
| SNR | 40.8 dB |
| Gain | Supports 1.0 × |
| Exposure time | 3 µs to 10 ms |
| Exposure mode | Off/ Once/ Continuous exposure mode; supports fixed time exposure, trigger-width exposure |
| Mono/color | Color |
| Pixel format | Mono 8/12, RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Trigger mode | External trigger, internal trigger |
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Data interface | Camera Link; USB interface for updating firmware |
| Digital I/O | 12-pin P10 connector provides power and I/O: configurable input/output × 4 (Line 0/1/3/4) and support single-ended/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4). |
| Power supply | 12 VDC to 24 VDC |
| Power consumption | Typ. 9.9 W @ 12 VDC |
| Lens mount | M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter |
| Dimension | 76 mm × 76 mm × 42.1 mm (3.0" × 3.0" × 1.7") |
| Weight | Approx. 340 g (0.75 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 55 °C (–4 °F to 131 °F) Storage temperature : –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5 % RH to 90 % RH (no condensation) |
| Client software | MVS and frame grabber software meeting with Camera Link Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Compatibility | Camera Link V1.2, GenICam |
| Certification | CE, RoHS 2.0, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

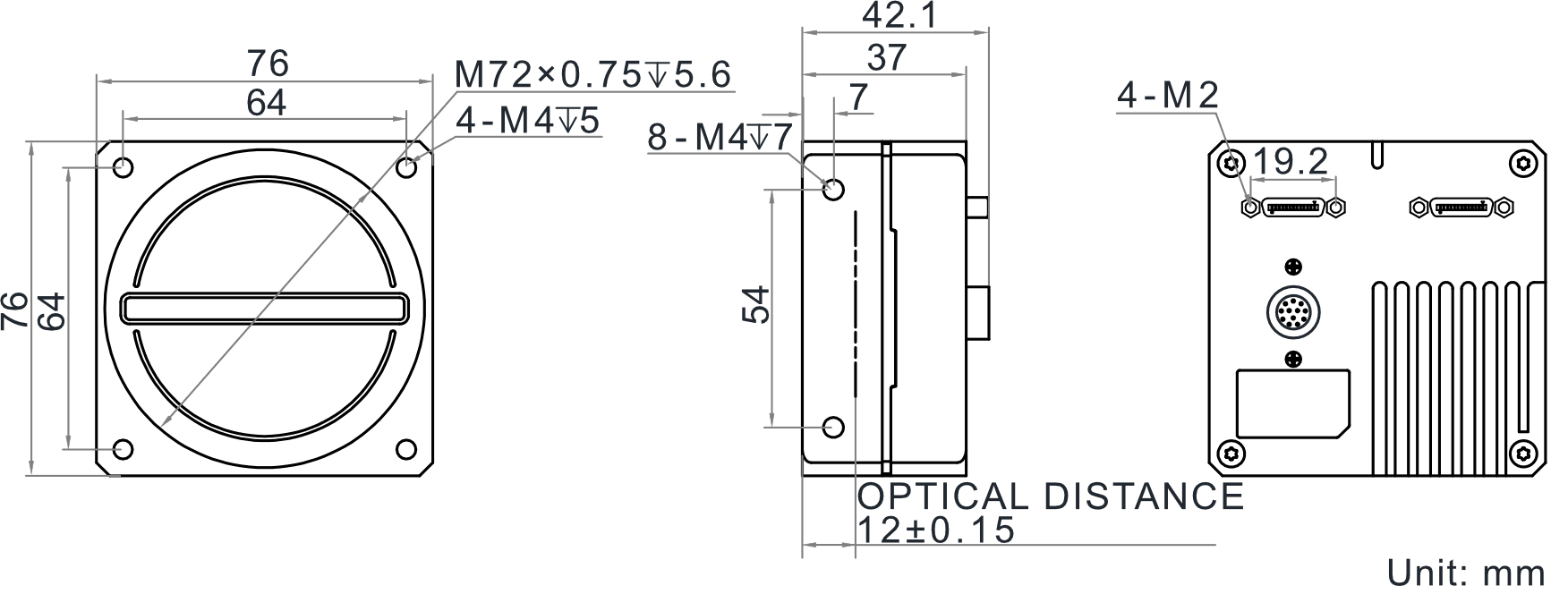

Dimensional drawing
