OPT
Line scan camera OPT-CL1-M8-XG3-01
Manufacturer part number: OPT-CL1-M8-XG3-01
- Interface
- 10 GigE
- Line resolution
- 8K
- Resolution
- 8192 × 1
- Pixel size
- 7 µm × 7 µm
- Max. line rate
- 149 kHz
- Mono / color
- Mono
- Lens mount
- M72 × 0.75
- Sensor type
- CMOS
- Dimensions
- 76 × 76 × 62.1 mm
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-CL1-M8-XG3-01 |
|---|---|
| Sensortyp | CMOS |
| Auflösung | 8192 × 1 |
| Zeilenrate | 149 kHz |
| Maximale Zeilenrate | 149 kHz@Mono 8 |
| Pixelgröße | 7.0 µm × 7.0 µm |
| Bildausgabe | Monochrom |
| Ausgabeformate | Mono 8/10/10Packed/12/12Packed |
| Dynamikumfang | 63.3 dB |
| Verstärkung | 1 dB up to 15.5 dB |
| Belichtungszeit | 4.9 µs up to 50 ms |
| Schnittstelle | 10 GigE |
| Kamerastandard | GigE Vision 2.0, GenICam |
| Spannungsversorgung | 12 V DC up to 24 V DC (Hirose) |
| Leistungsaufnahme | 13.8 W @ 24 V |
| Objektivanschluss | M72 × 0.75 |
| Abmessungen | 76 mm × 76 mm × 62.1 mm |
| Gewicht | 460 g |
| Temperaturbereich | Operation 0 °C up to 50 °C, Lagerung 0 °C up to 80 °C |
| Mono / color | Mono |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

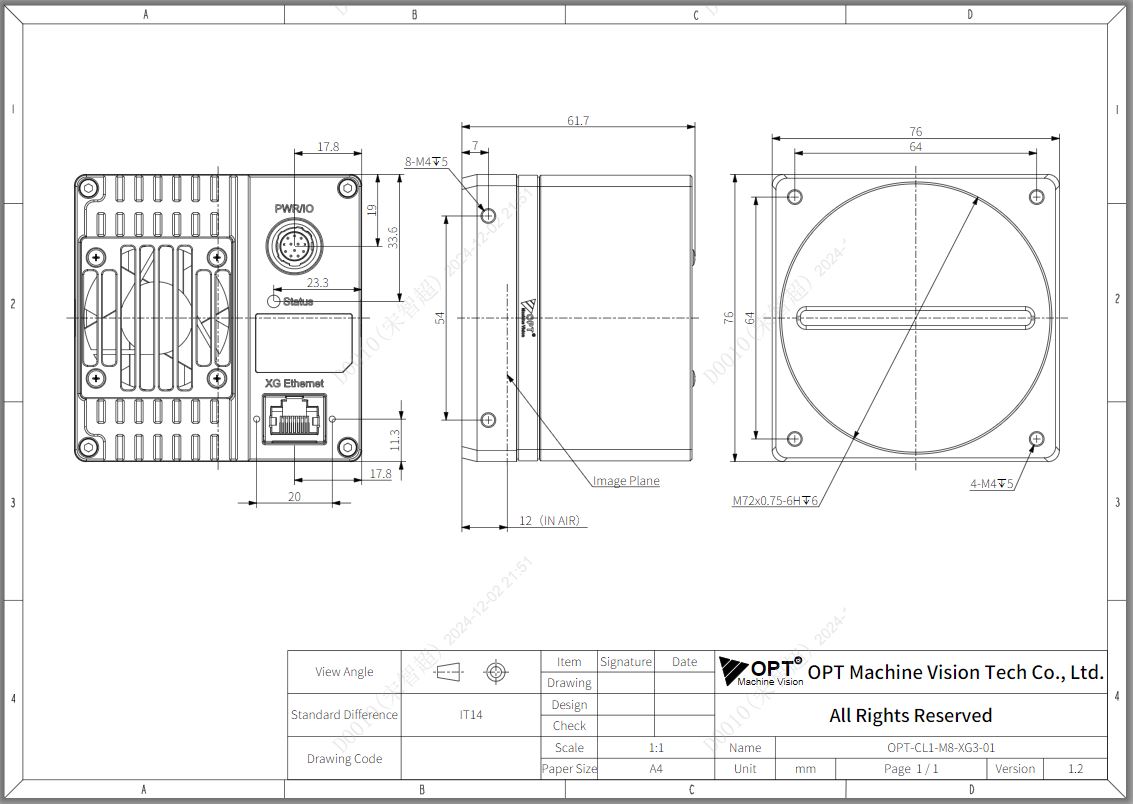

Dimensional drawing
Documents
- Download datasheet
Datasheet OPT-CL1-M8-XG3-01
Datasheet · EN · 1447 KB
- Download
3D-Modell OPT-CL1-M8-XG3-01 (STEP)
Technical drawing · EN · 4216 KB
- Download
OPT Camera Viewer_V4.0.0.0_Mac_Setup
Software / firmware · EN · 223417 KB
- Download
OPT Camera Viewer_V3.0.0.2_Linux_Setup
Software / firmware · EN · 168121 KB
- Download
OPT Camera Viewer_V4.0.0.3_Windows_x64_Setup
Software / firmware · EN · 499240 KB
- Download
L1 Series 10G Ethernet Line Scan Camera User Manual - V2.1.0
Manual · EN · 1983 KB
Accessories
Data cables(6)
OPT
GigE-Datenkabel RJ45-RJ45 CB-GE-RJ45SRJ45-S3M, 3 m (Standard)
RJ45 · 3 m
OPT
GigE-Datenkabel RJ45-RJ45 CB-GE-RJ45SRJ45-S5M, 5 m (Standard)
RJ45 · 5 m
OPT
GigE-Datenkabel RJ45-RJ45 CB-GE-RJ45SRJ45-S10M, 10 m (Standard)
RJ45 · 10 m
OPT
GigE-Datenkabel RJ45-RJ45 CB-GE-RJ45SRJ45-R3M, 3 m (hochflexibel)
RJ45 · 3 m
OPT
GigE-Datenkabel RJ45-RJ45 CB-GE-RJ45SRJ45-R5M, 5 m (hochflexibel)
RJ45 · 5 m
OPT
GigE-Datenkabel RJ45-RJ45 CB-GE-RJ45SRJ45-R10M, 10 m (hochflexibel)
RJ45 · 10 m
Description
OPT-CL1-M8-XG3-01 belongs to the CL1 series of industrial line scan cameras by OPT Machine Vision. The CMOS line sensor delivers 8192 × 1 pixels (8K) at 7.0 µm × 7.0 µm pixel size and up to 149 kHz line rate. Connection is via 10 GigE (GigE Vision 2.0, GenICam); lenses attach via M72 × 0.75.
Line scan cameras of the CL1 series are suited to inspecting continuous material, films, paper, print and the surfaces of moving parts. Data sheet, dimensional drawing (2D) and 3D model (STEP) as well as the OPT software are in the download area. We are glad to advise you on designing lighting, lens and encoder connection - just ask for price and delivery time.
