Line scan camera OPT-CL1-M16-XG3-01
Manufacturer part number: OPT-CL1-M16-XG3-01
- Interface
- 10 GigE
- Line resolution
- 16K
- Resolution
- 16384 × 1
- Pixel size
- 3.5 µm × 3.5 µm
- Max. line rate
- 70 kHz
- Mono / color
- Mono
- Lens mount
- M72 × 0.75
- Sensor type
- CMOS
- Dimensions
- 76 × 76 × 62.1 mm
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-CL1-M16-XG3-01 |
|---|---|
| Sensortyp | CMOS |
| Auflösung | 16384 × 1 |
| Zeilenrate | 70 kHz |
| Maximale Zeilenrate | 70 kHz@Mono 8 |
| Pixelgröße | 3.5 µm × 3.5 µm |
| Bildausgabe | Monochrom |
| Ausgabeformate | Mono8/10/12/10Packed/12Packed |
| Dynamikumfang | 60.2 dB |
| Verstärkung | 1 dB up to 15.5 dB |
| Belichtungszeit | 3.9 µs up to 50 ms |
| Schnittstelle | 10 GigE |
| Kamerastandard | GigE Vision 2.0, GenICam |
| Spannungsversorgung | 12 V DC up to 24 V DC (Hirose) |
| Leistungsaufnahme | 13.6 W @ 24 V |
| Objektivanschluss | M72 × 0.75 |
| Abmessungen | 76 mm × 76 mm × 62.1 mm |
| Gewicht | 460 g |
| Temperaturbereich | Operation 0 °C up to 50 °C, Lagerung 0 °C up to 80 °C |
| Mono / color | Mono |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

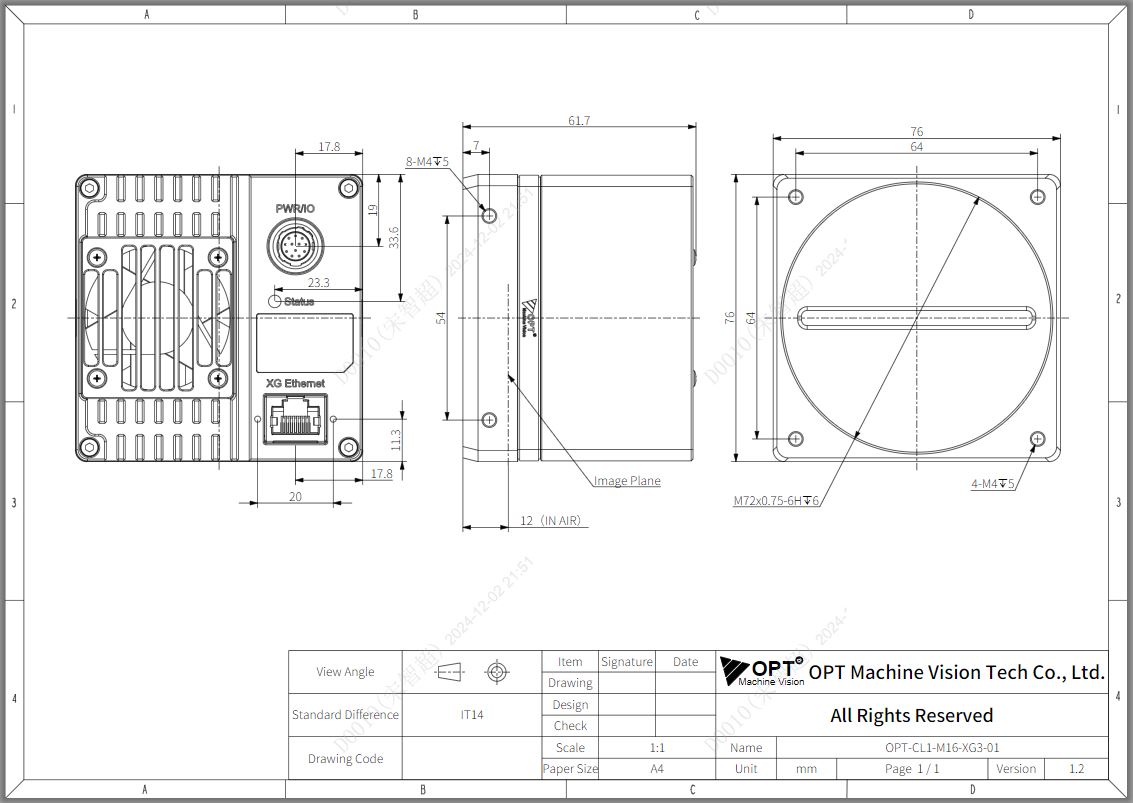

Dimensional drawing
