Wafer ID reader MV-SC6500P-AI-WID-IBN
Manufacturer part number: MV-SC6500P-AI-WID-IBN
- Device class
- Smart camera
- AI / deep learning
- Included
- Resolution
- 1.6 MP (1408 × 576 px)
- Max. frame rate
- 120 fps
- Image output
- Mono
- Optics
- M12-Mount
- Focus type
- Autofocus
- Communication
- GigE
- Ingress protection
- IP40
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-SC6500P-AI-WID-IBN |
|---|---|
| Function module | Vision Master Platform (include deep learning module) and SCClient |
| Algorithm capability | SEMI OCR character, data matrix code, QR code, and barcode |
| Communication protocol | TCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc. |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 µm × 3.45 µm |
| Sensor size | 1/3.4" |
| Resolution | 1408 × 576 |
| Max. frame rate | 120 fps |
| Gain | 0 dB to 37 dB |
| Exposure time | 25 µs to 1 sec |
| Pixel format | Mono 8 |
| Mono/color | Mono |
| LED | NIR light |
| Lighting method | Multiple lighting methods (bright field lighting and dark field lighting) |
| Illumination intensity | Configure in software |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (SYS) |
| Memory | 8 GB |
| Storage | 64 GB |
| Lens mount | M12-mount |
| Focus mode | Auto |
| Installation height | 40 mm to 50 mm (recommended) |
| Field of view (range) | 38 mm × 15 mm |
| Depth of field | ± 5 mm |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including non-isolated input × 1, non-isolated output × 1, and RS-232 × 1 |
| Power supply | 24 VDC |
| Power consumption | Avg. 11.5 W @ 24 VDC Max. 18 W @ 24 VDC |
| Weight | Approx. 829 g (1.8 lb.) |
| Dimension | 127 mm × 69 mm × 49 mm (5" × 2.7" × 1.9") |
| Ingress protection | IP40 |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Vibration resistance | Meets standard IEC 60068-2-6:2007. Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock resistance | Meets standard IEC 60068-2-27:2008. Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Certification | CE, KC |
| Input voltage | 24 VDC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

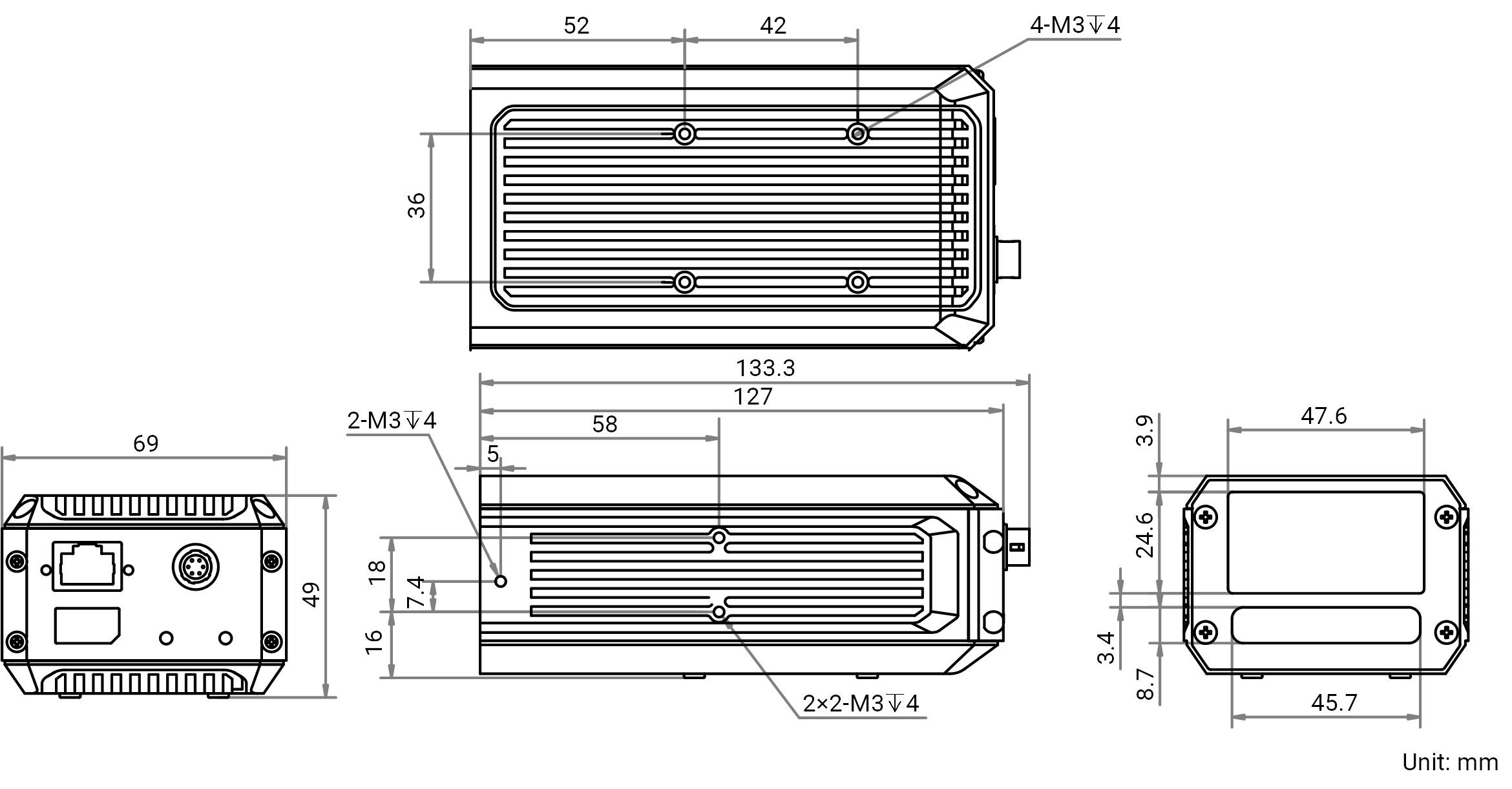

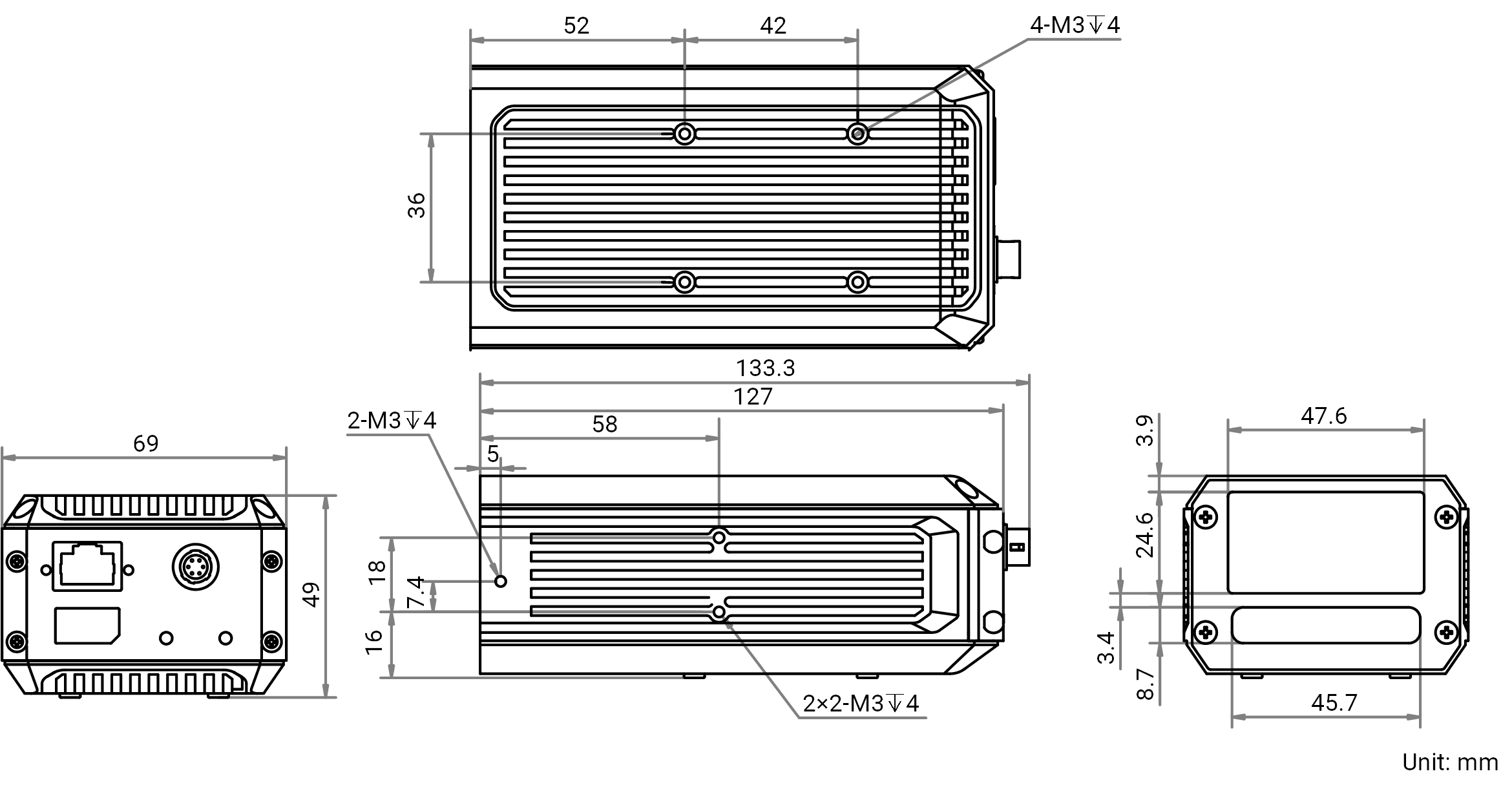

Dimensional drawing
