HIKROBOT
Smart camera MV-SC6120C-00C-NNN
Manufacturer part number: MV-SC6120C-00C-NNN
- Device class
- Smart camera
- AI / deep learning
- Included
- Resolution
- 12 MP (4096 × 2944 px)
- Max. frame rate
- 45 fps
- Image output
- Color
- Optics
- C-Mount, Objektiv separat
- Focus type
- Depends on lens
- Illumination
- Nicht integriert
- Communication
- GigE
- Ingress protection
- IP67
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-SC6120C-00C-NNN |
|---|---|
| Function module | Vision Master Platform (include deep learning module) |
| Communication protocol | TCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc. |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 µm × 3.45 µm |
| Sensor size | 1.1" |
| Resolution | 4096 × 2944 |
| Max. frame rate | 45 fps |
| Gain | 0 dB to 37 dB |
| Exposure time | 45 µs to 1 sec |
| Pixel format | RGB 8, Mono 8 |
| Mono/color | Color |
| Memory | 8 GB |
| Storage | 64 GB |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power and I/O, including opto-isolated input × 2 (Line 0/1), opto-isolated output × 2 (Line 4/5), configurable non-isolated input/output × 2 (Line 2/3), RS-232 × 1, and light source output (max. 30 W) × 1 |
| Extended interface | VGA × 1, and USB host × 1 |
| Power supply | 24 VDC |
| Power consumption | Avg. 12.5 W @ 24 VDC (without external light source) Avg. 42.5 W @ 24 VDC (with external light source) Max. 18 W @ 24 VDC (without external light source) Max. 48 W @ 24 VDC (with external light source) |
| Lens mount | C-mount |
| Lens cap | Transparent lens cap |
| Light source | Not included |
| Indicator | Power indicator (PWR), network indicator (LNK), status indictor (STS), and user-defined indicator (U1/U2) |
| Dimension | 116.3 mm × 68.6 mm × 101.8 mm (4.6" × 2.7" × 4.0") |
| Weight | Approx. 530 g (1.2 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Vibration resistance | Meets standard IEC 60068-2-6:2007. Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)* |
| Shock resistance | Meets standard IEC 60068-2-27:2008. Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)* |
| Certification | CE, KC |
| Input voltage | 24 VDC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

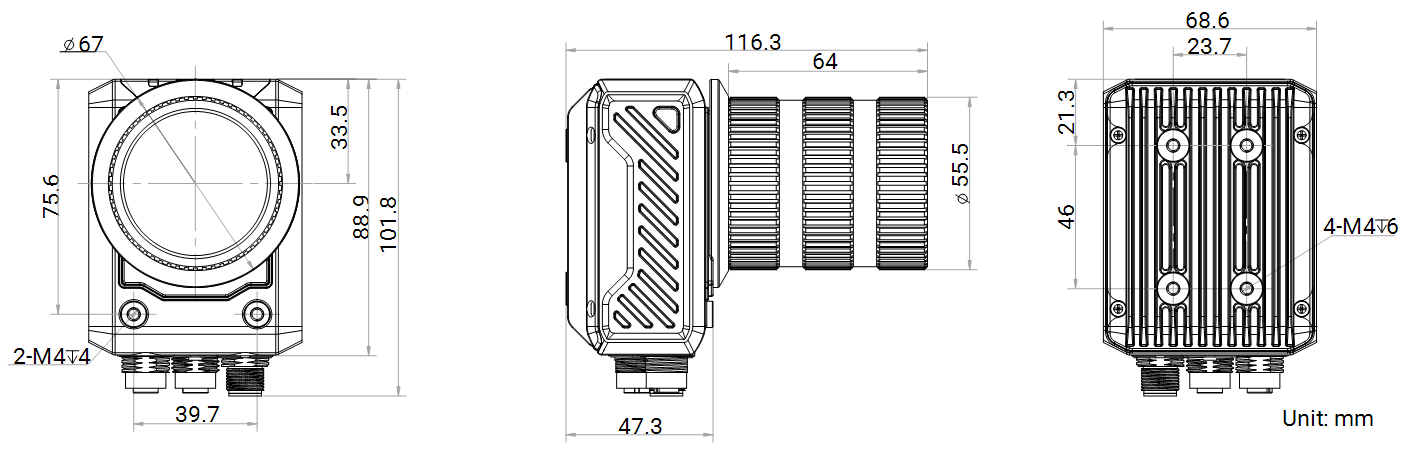

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Smart Kamera MV-SC6120C-00C-NNN
Datasheet · DE · 524 KB
- Download
Technical drawing HikRobot Smart Kamera MV-SC6120C-00C-NNN
Technical drawing · DE · 4 MB
- Download
Software / Firmware V4.4.30 HikRobot Smart Kamera MV-SC6120C-00C-NNN
Software / firmware · DE · 770 MB
- Download
SC_VisionMaster V4.4.30 Basic Package (SC5000X&SC6000) (2,1 GB)
Software / firmware · EN
- Download
VisionTrain V2.3.0 (7,8 GB)
Software / firmware · EN
- Download
Quick start guide HikRobot Smart Kamera MV-SC6120C-00C-NNN
Quick start guide · DE · 2 MB
- Download
Communication protocol HikRobot Smart Kamera MV-SC6120C-00C-NNN
Communication protocol · DE · 7 MB
Accessories
Data cables(25)
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 30 m
RJ45 (with locking stud) · 30 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45 angled-RJ45), 15 m
RJ45 (with locking stud),Bend (up) · 15 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45-RJ45), 30 m
RJ45 (with locking stud) · 30 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
Data cable
HIKROBOT
SuperFlex GigE data cable (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45 angled-RJ45), 15 m
RJ45 (with locking stud),Bend (up) · 15 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45 angled-RJ45), 5 m
RJ45 (with locking stud),Bend (up) · 5 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45 angled-RJ45), 5 m
RJ45 (with locking stud),Bend (up) · 5 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 1 m
RJ45 (with locking stud) · 1 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 60 m
RJ45 (with locking stud) · 60 m
Data cable
HIKROBOT
SuperFlex GigE data cable (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
Data cable
HIKROBOT
SuperFlex GigE data cable (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
Data cable
HIKROBOT
SuperFlex GigE data cable (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
Data cable
HIKROBOT
SuperFlex GigE data cable (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45 angled-RJ45), 3 m
RJ45 (with locking stud),Bend (up) · 3 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45 angled-RJ45), 3 m
RJ45 (with locking stud),Bend (up) · 3 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
Data cable
Adapterring(2)
More HIKROBOT products in this category
- Smart camera MV-SC6050C-08M-XBN
- Smart camera MV-SC6050C-12M-XBN
- Smart camera MV-SC6050C-16M-XBN
- Smart camera MV-SC6050M-00C-NNN/V2
- Smart camera MV-SC6050M-08M-XBN
- Smart camera MV-SC6050M-12M-XBN
- Smart camera MV-SC6050M-16M-XBN
- Smart camera MV-SC6120M-00C-NNN
- Smart camera MV-SC6250C-00C-NNN
- Smart camera MV-SC6250M-00C-NNN
- Wafer ID reader MV-SC6500P-AI-WID-IBN
- Wafer ID reader MV-SC6500P-AI-WID-RBN
Description
Key Feature - Adopts AI deep learning algorithm to achieve OCR, object recognition, defect detection, etc. - Integrates VM functions, and supports more than 140 algorithms. - Adopts multiple interfaces and supports multiple-channel I/O, light source, display, etc. - Adopts high-performance CPU with faster calculation performance and high efficiency. - Supports multiple communication protocols. - Supports indicators displaying device status for easy debugging and maintenance. - Supports ingress protection IP67.
