OPT-VCT100/5.6-0.17X V38 lens
Manufacturer part number: OPT-VCT100/5.6-0.17X
Series: Coloretto-Zeilenobjektive
- Objektivbauart
- Zeilen-Festbrennweitenobjektiv
- Zeilenkamera
- 8k at 7 µm µm
- Bildkreis
- Ø82 mm
- Abbildungsmaßstab
- 0.08 × | 0.17 × | 0.33 ×
- Focal length
- 100 mm
- Arbeitsabstand
- 1269.1 (0.08×) | 672.1 (0.17×) | 372.1 (0.33×)
- Mount
- V38 (V-Mount)
- Aperture
- F5.6 - F45
- Verzeichnung
- 0.05 % (0.08×) | 0.05 % (0.17×) | 0.13 % (0.33×)
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-VCT100/5.6-0.17X |
|---|---|
| Zeilenauflösung | 8k (7 µm) |
| Focal Length(mm) | 100 mm |
| Aperture(F/#) | F5.6 – F45 |
| Image Circle Ø(mm) | Ø82 mm |
| Mount | V38 |
| Weight(kg) | 0.14 kg |
| Size(mm) | Ø47.70 × 31.50 |
| Filter Thread | M38×P0.5 |
| Working Temperature | -20 °C – 60 °C |
| Distortion | 0.05 % (0.08 ×) | 0.05 % (0.17 ×) | 0.13 % (0.33 ×) |
| Magnification（X） | 0.08 × | 0.17 × | 0.33 × |
| Working Distance(mm) | 1269.1 (0.08 ×) | 672.1 (0.17 ×) | 372.1 (0.33 ×) |
| Flange Focal Distance(mm) | 100.2 (0.08 ×) | 108.5 (0.17 ×) | 125.2 (0.33 ×) |
| Object To Image Distance(mm) | 1400.8 (0.08 ×) | 812.1 (0.17 ×) | 528.8 (0.33 ×) |
| Coaxial | no |
| Lens Type | Zeilenkameraobjektiv |
| Lens type | Zeilenobjektiv |
| Bauart | Line Scan |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

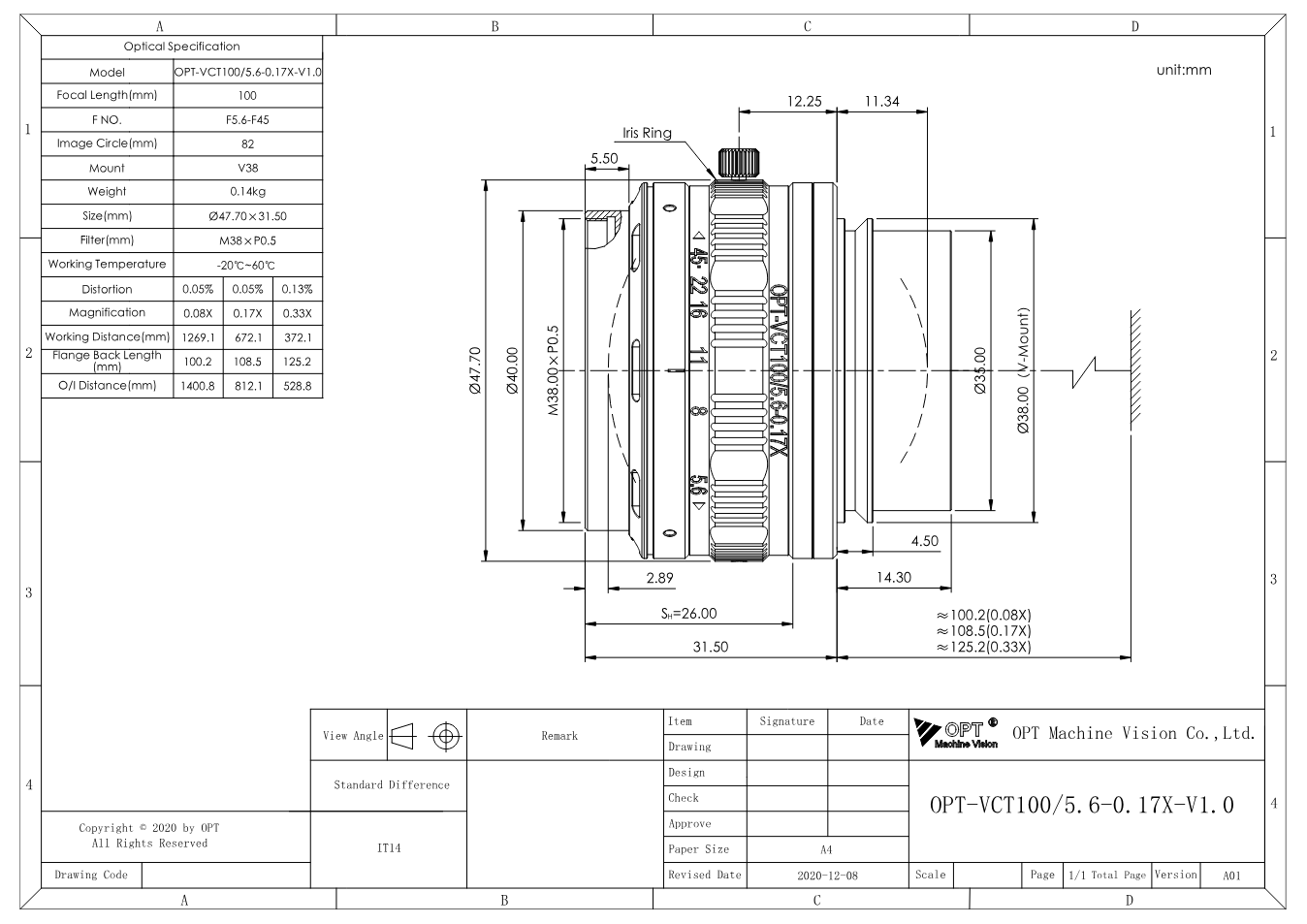

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-VCT100/5.6-0.17X (PDF)
Datasheet · EN · 84 KB
- Download datasheet
Optische Daten (MTF) OPT-VCT100/5.6-0.17X
Datasheet · EN · 2155 KB
- Download datasheet
Coloretto-Zeilenobjektive - Serienbroschüre OPT
Datasheet · EN · 30879 KB
- Download
3D-Modell OPT-VCT100/5.6-0.17X (STEP)
Technical drawing · EN · 4542 KB
Description
With focal length 100 mm, aperture F5.6 - F45, image circle Ø82 mm, OPT-VCT100/5.6-0.17X belongs to the series “Coloretto Line Scan Lenses” by OPT Machine Vision. Also: working distance 1269.1 (0.08 ×) | 672.1 (0.17 ×) | 372.1 (0.33 ×), V38.
The Coloretto series is designed for line scan cameras with 7 µm pixels and image circles up to 30 mm. The achromatic design over 400 to 700 nm keeps the color channels congruent, and the relative distortion stays below 0.6 %. It is used on line scan cameras for web material, print, films and wood - wherever color and geometry have to be right at the same time.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing and the STEP model are included.
